5

These are connected to the corresponding colored

wires from the tonearm. The four wires terminate

in connectors which are slid over small brass

pins. Please use care and an appropriate tool for

connecting or disconnecting these wires. Since the

Sumiko Olympia Cartridge is already installed,

there is no immediate need to touch these wires

unless a new cartridge is being installed.

Installing the Counterweight

The Counterweight has been factory installed and

calibrated at the factory. To make any adjustments,

you should have a good quality Stylus Tracking

Force Pressure Scale Gauge.

To move/remove or install the Counterweight:

• Make sure the Allen Wrench Screw is loosened

(see Figure 6). You can loosen the Allen Wrench

Screw using the included Medium Allen

Wrench- turn the screw counter-clockwise to

Installing Anti-skate

The Anti-skate Mechanism has been factory

installed, and the cable simply needs to be

unsecured from its packing and hooked on the

holder. Full instructions are included anyway. Skip

to the last step in bold below.

The Anti-skate Assembly consists of a black

U-shaped anchor connected to a small silver weight

by a clear cable (see Figure 4). There is a pre-

installed metal cable holder attached to the Tonearm

Base.

To install the Anti-skate feature:

• Remove the Counterweight. (See Installing

Counterweight below.)

• Slide the black U-shaped end of the Anti-skate

Assembly over the rear of the Tone Arm with

the Allen Wrench Screw accessible (on the right

side of the Tonearm). Leave approximately

a 1/4-inch (0.635 cm) between the Tonearm

Pivot and the Black U-shaped end. Leaving

slightly more space will make no difference

in performance. Just make sure there is some

space.

• Use the provided medium size, Allen Wrench to

tighten the screw on the Black Plastic U-shaped

end.

• Slip the clear plastic cable into the gap at

the end of the Anti-Skate cable holder. The

weight will hang down. (Figure 11 on page

9.)

This setup is designed for this tone arm and

cartridge. No further adjustment is needed.

Phono Cartridge Wires

The wire connections between the tonearm and

cartridge are color coded. There are colored rings

at the base of the pins on the rear of the cartridge.

Installing the Wi-Fi Antenna

To install the Wi-Fi antenna, screw the antenna

clockwise onto the antenna base located on the left

side (looking at the back) of the rear of the MTI100

(Figure 8 on page 7).

Installing the Platter

Near the center of the top of the MTI100, you will

nd a spindle with a ball bearing. To install the

platter, t the brass tting located in the center of

the bottom of the platter over the spindle. Carefully

and evenly seat the platter.

To remove the platter, pull the platter upward, away

from the MTI100.

The Record Mat is placed on the Platter as you

would a record (centered on the Spindle).

Already Installed

The MTI100 comes equipped with a Sumiko

Olympia Phono Cartridge which has already been

expertly installed and setup. Anti-skate and the

Counterweight have been factory set.The Anti-skate

cable needs to be released and placed in the holder.

Full instructions are included for possible future

reference.

Red

Right Channel (+)

White

Left Channel (+)

Blue

Left Channel (–)

Green

Right Channel (–)

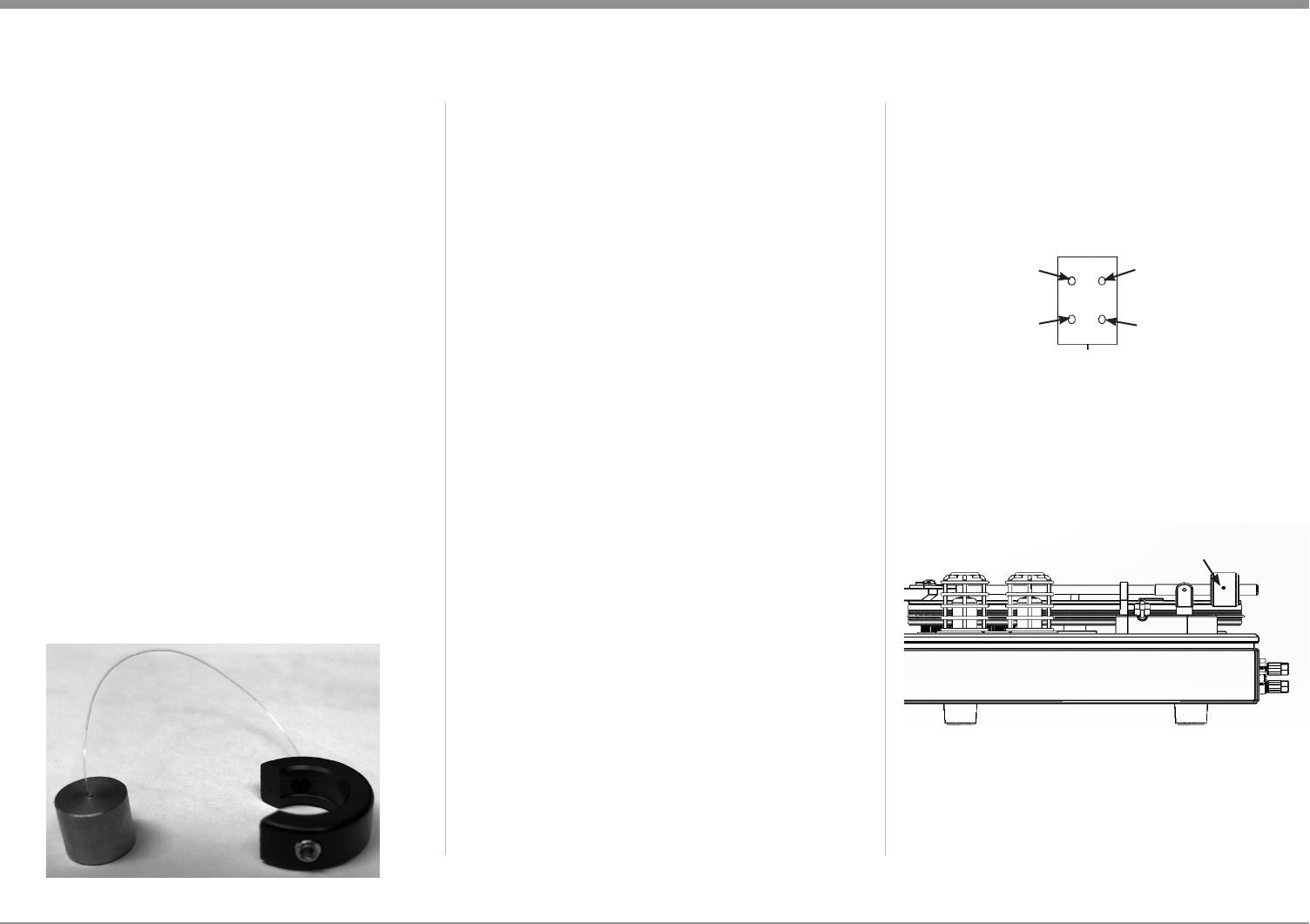

Figure 04– Anti-skate Parts

Figure 05– Rear view Cartridge Pins

Allen Wrench Screw on

Counterweight

Figure 06– Counterweight Adjustment
