Inside the Box

Open the top of the shipping carton.

Remove the top layer of shipping foam.

The next layer of foam will contain:

• Remote Control

• Phono Cartridge Box containing some tools

(The Cartridge is already installed)

• AC Power Cord

• Wi-Fi Antenna

• Turntable Belt

• Turntable Mat

• 60Hz Pulley (Export only)

• Speaker terminal Wrench

• 2 Vacuum Tubes

• 2 Vacuum Tube Shield Covers

• 3 Allen Wrenches/Hex Keys (Small 1/20-inch,

Medium 1/16 inch, and Large 5/64 inch)

• This Owner’s Manual

Remove this layer of foam.

The MTI100 will be revealed. Carefully, remove the

unit and place it on a secure surface.

Under this level will be the Turntable Platter secured

between two pieces of protective foam packing.

Where to Put It

A rm and level surface with good isolation is

essential for best performance. Optimal record

playback is achieved when the turntable is perfectly

level. It should also be kept away from the speakers

to prevent the cartridge from picking up unwanted

vibrations.

Keep it Safe

The Olympia Stylus is both important and delicate. To

protect the Stylus, it is best to leave the Stylus Guard

installed while setting up or moving the MTI100. But

when the time comes to unleash the Stylus, you can

do so by pulling downward. Replace the Stylus Guard

by reversing the procedure (see Figure 1).

Putting it Together

The Tubes

The MTI100 uses a tube driven output stage to

exquisitely extract the music from vinyl as well as

other analog and digital sources including wireless

connections. Two 12AX7 vacuum tubes are expertly

matched to the Sumiko Olympia Moving Magnet

Cartridge, and combined with ultra-clean circuitry,

provide warm balanced and detailed full range

performance. Plus the glowing tubes look great.

To install the Tubes

• Carefully line up pins at the bottom of the tube

with the 9 pin holes of the Tube Socket (see

Figure 2).

• Press downward with even pressure.

• Stop when ush.

• Repeat for the second Tube.

The key is to line up the pins with the holes. You do

not want to bend the pins.

Install Vacuum Tube Shield Cover

Two Vacuum Tube Shield Covers are included to

help protect the Vacuum Tubes (see Figure 3).

To install:

• Arrange the Vacuum Tube Shield Cover so that

the “Mc” in the center is in the right direction.

• Line up the 4 Legs of the Vacuum Tube Shield

Cover with the four holes surrounding the Tube

Socket (see Figure 2).

• Press the Vacuum Tube Shield Cover into place.

• Repeat for the second cover.

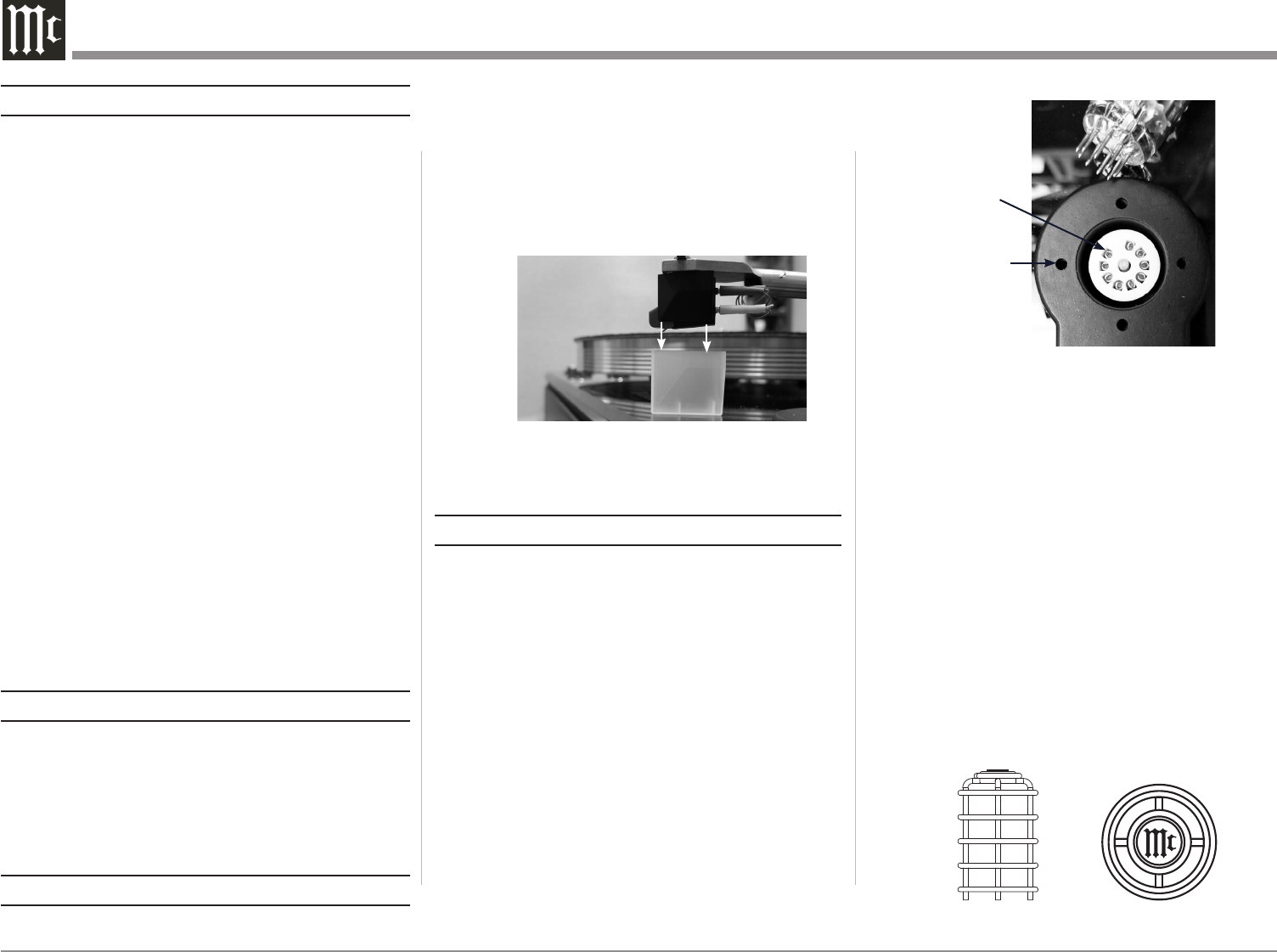

Figure 03– Vacuum Tube Shield Cover

Figure 01– Removing Stylus Guard

Figure 02– Tube Socket

Tube Pin Hole x9

Tube Shield Cover

Pin Opening x4
