Thank you for purchasing your new product.
We recommend that you spend some time reading this instruction manual in order that
you fully understand all the operational features it oers.
Read all the safety instructions carefully before use and keep this instruction manual for
future reference.

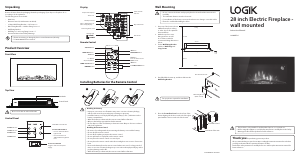

28 inch Electric Fireplace -
wall mounted
Instruction Manual
L28WMEF25
• This product is only suitable for well-insulated spaces or occasional use.
• Before using this appliance, read all safety instructions carefully rst in the Safety
Warnings booklet and keep them for future reference.
Product Overview
Front View
Control Panel
Top View
Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
• Main Unit
• Remote Control (2 AAA batteries included)
• L-Shape Wall Fixing Bracket × 1 & Screws × 2
• Glass Fixing Bracket × 1 & Glass Fixing Screw × 1
• Wall Fixing Bracket
• Wall Plugs × 7 and Long Fixing Screws × 7
• Instruction Manual and Safety Warnings
• If items are missing or damaged, please contact Partmaster (UK only).
• Tel: 0344 800 3456 for assistance.
WARNING: DO NOT COVER
Installing Batteries for the Remote Control
Wall Mounting
Air Outlet
Control Panel
1
2
3
Handling the Battery
• Improper or incorrect use of batteries may cause corrosion or battery leakage,
which could cause re, personal injury or damage to property.
• Install the battery correctly by following the polarity (+ and –) indications in the
battery compartment.
• When the battery is exhausted, the remote control will not function.
• Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance
with local regulations.
Handling the Remote Control
• Be aware of your ngernails when removing the battery cover and the battery.
• Do not drop the remote control.
• Do not allow anything to impact the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive
heat.
• Remove the battery from the remote control when not in use for a long period of
time, as corrosion or battery leakage may occur and result in physical injury, and/or
property damage, and/or re.
• When the battery is exhausted, the remote control will not function.
• Do not connect the heater until properly xed to the wall and the instructions is
read fully.
• The minimum distances must be observed.
• For installation of the heater, care must be taken not to damage concealed cables.
• Please be careful while drilling the holes.
Remote Control
Display
Temperature display
Timer ON/OFF
indicator
Day of the week
Auto mode
Timer icon
Standby indicator
Timer / Temperature (in
Timer setup) display
Flame brightness level
Heating level
: 1000W
: 2000W
ON/OFF Button
OK Button
+/– Button
C (Cancel) Button
TIMER SET Button
TIMER ON/OFF Button
DIMMER Button
Button
DATE/TIME Button
IC Button
Press to switch on/o
AUTO mode.
Button
1000W/2000W Button
1. Keep top of the heater at least
1000 mm away from ceiling
or other objects for optimum
heat ventilation.
2. Mark the top ve screws
xing positions on wall
in accordance with the
recommend xing dimensions
below.
3. Fix the Wall Fixing Bracket
with the 5 Wall Plugs and
Long Screws.
490 mm
434 mm
940 mm
1000 mm
Ceiling
Wall Fixing Bracket
Floor
Wall Plug
Long
Screw
4. Carefully lift the heater up, and then slide into the
Wall Fixing Bracket.
Rear View of the unit
Wall Fixing Bracket
(xed on wall)
5. Place the Front Glass Panel over the front of the
heater aligning the hooks at each side of the glass
panel with the slots at each side of the heater.
Two people are required for installation.
Rear View of the unit
Front Glass Panel
IB-L28WMEF25-250804V2
Power On/O Switch
Toggle to switch on/o power
supply.
I/O Flame Eect Button
• Press to switch the ame
light On/O.
• Press and hold to set
dierent ame brightness
level.
Flame Eect On Indicator
2000W Indicator
1000W Indicator
2000W Button
1000W Button
Do not cover the air outlet of the unit.
