INSTALLATION INSTALLATION

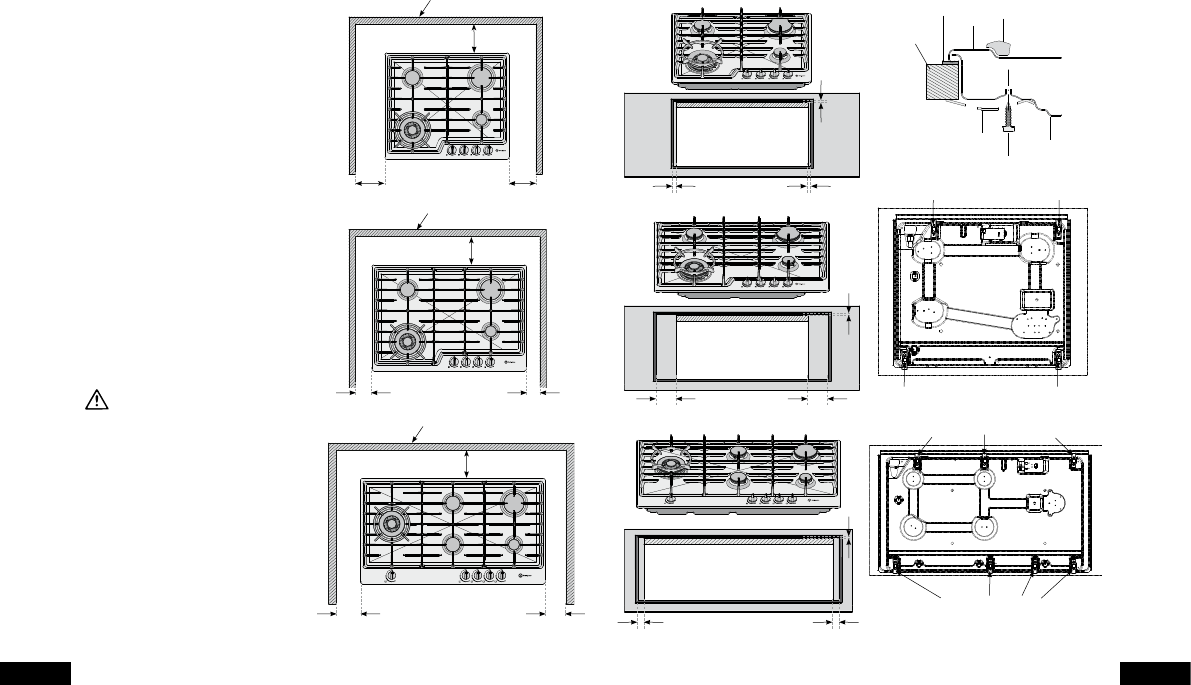

Figure 6–60cm models

Figure 6–75cm models

Figure 6–90cm models

Figure 7

Figure 8–60cm and 75cm models

Figure 8–90cm models

11mm

86mm 86mm

26mm 26mm

11mm

10mm

10mm

10mm

clamp location

clamp location Bottom view

clamp location

clamp location

possible clamp locations

possible clamp locations

Bottom view

trivet

hob

seal

benchtop

screw

clamp

burner box

1. The bench cutout should be made as per cutout

dimensions in Figure 4.

2. Adjacent walls, cupboards and protection for

combustible materials.

Ensure that the appliance is installed in accordance

with clauses 6.2.5 and 6.10.1.1 of AS/NZS

5601.1, or clauses 6.9.1 and 6.9.5 of AS/NZS

5601.2 with regard to clearances to combustible

surfaces and materials, and clearances to

rangehoods and exhaust fans.

To ensure clearances of 200mm from burners to

vertical combustible surfaces observe the minimum

dimensions shown in Figure 5.

Clearances to combustible surfaces may be reduced

if combustible surfaces are protected in accordance

with clause 6.10.1.2 of AS/NZS 5601.1, or clause

6.9.2 of AS/NZS 5601.2.

3. Optional Barrier

A barrier can be installed to prevent accidental contact

with the cooktop base, where the base of the cooktop

is accessible from below (i.e. inside a cupboard, etc).

An impression has been incorporated into the base to

ensure a minimum clearance of 15mm is maintained

between the base and the barrier. This barrier may

be made of any non-combustible, rigid material.

4. Fitting the cooktop into the bench

Carry out as follows:

• Place the seals supplied around the bench cut-out

as shown in Figure 6, taking care that the seals

meet without overlapping.

• Fit the pull-down clamps supplied to ensure

that the cooktop cannot move after installation.

WARNING

Failure to fix the cooktop to the bench could result

in loosening of the gas connection through movement

of the cooktop and a gas leak may result.

• Use the 4 clamps and screws supplied in the parts

bag for 4 burner models, and 6 clamps and screws

for 5 burner models.

• To assemble, attach the clamps to each corner

of the burner box via the screws provided.

• Fix the clamps as shown in Figure 7. The clamp

location points are shown in Figure 8.

• Remove excess seal.

• If the benchtop is less than the standard 33mm

thickness, use a packer between the bench and

the pull down clamps to ensure the cooktop is

properly secured.

combustible surface

combustible surface

combustible surface

119mm

79mm

99mm

131mm

91mm

111mm

131mm

131mm

Figure 5–60cm models

Figure 5–75cm models

Figure 5–90cm models

INSTALLATION PROCEDURE

131mm
