Sit Go has been specifically designed to

compliment the human form. There have

been a range of functional options included in

this chair to make it the most comfortable,

functional chair for your specific work

environment.

One of these many features is the versatile

synchronised mechanism. This means that the

seat and back of your chair move in a set

ration of 2:1. You can set your chair in ‘free-

float’, when the chair’s seat an back are free

to move with you as you move, providing

constant postural support making it ideal for

when you are regularly swapping between

tasks whilst sitting. Alternatively you can use

the synchronised mechanism in a ‘locked’

position, meaning the seat and back stay in

the same position. This is the preferred setting

as it provides constant support to you while

carrying out a task that makes you maintain a

similar position.

SITTING PROPERLY THE THINGS TO LOOKS OUT

FOR:

• Your body should always feel that it is

in an upright but comfortable and relaxed

position.

• Your bottom should always be at the

back of the seat

• Your neck should feel upright and

your shoulders squared and relaxed

• Your arms should hang straight down

by your side with elbows bending at right

angles to rest on your work surface

• Your feet should be flat on the floor

(or on a foot rest) and your knees at right

angle

• Your back should have permanent

contact with the chair back and the lower

‘lumber’ muscles feel supported

• Your pelvis should feel like it is tilted

slightly forward with a comfortable one hands

width from the front of the seat to the back of

your knees

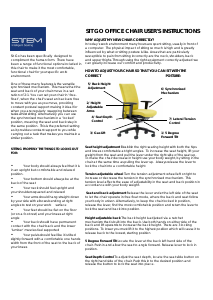

SIT GO OFFICE CHAIR USER’S INSTRUCTIONS

WHY ADJUST MY NEW CHAIR CORRECTLY?

In today’s work environment many hours are spent sitting, usually in front of

a computer. The physical impact of sitting so much is high and is greatly

influenced by what or sitting posture is like. Areas that are particularly

susceptible to pain from sitting incorrectly are the neck, shoulders, back

and upper thighs. Through using the right equipment correctly adjusted we

can greatly increase our comfort and productivity.

HOW TO ADJUST YOUR CHAIR SO THAT YOU CAN SIT WITH THE

CORRECT POSTURE:

Seat height adjustment Establish the right seating height with both the hips

and knees comfortable at right angles. To increase the seat height, lift your

weight from the seat and pull the lever under the right side of the seat up.

To make the chair decrease in height use your body weight, by sitting in the

chair at the same time as pulling the lever up. Always release the lever to

lock the chair into a comfortable height

Tension adjustable wheel Turn the tension adjustment wheel left or right to

increase or decrease the tension in the synchronised mechanism. This

tension level affects the ease of adjustability in the seat and back position in

accordance with your body weight.

Seat and back adjustment Release the lever under the left side of the seat

to let the chair operate in free float mode, where the back and seat follow

your body in unison. Alternatively, to keep the chair locked in position,

release the lever, find the most comfortable position and return the lever to

lock the seat and back into position.

Height adjustable back The back height is adjusted via a ratchet

mechanism that is built into the back. Use both hands on either side of the

back and lift upwards to increase the back height. There are 3 locking

positions. To lower you must lift it to the highest position which will cause it to

release back to the lowest, starting position

5 Degree Forward Tilt Locate the lever at the back left hand side of the

chair. Push in and allow the seat to angle forward. Release lever to lock in

position.

Seat Depth Control To adjust the seat depth, locate the seat slide button on

the right hand side of the chair. Push this in to the desired position and

release the button to lock the seat into place.

2/ Height

Adjustable

Arms

7/ Lateral Tension

Control

6/ Synchronised

Mechanism

5/ Back Height

Adjustment

3/ Gas Lift 1/ 5 Degree

Forward Tilt

4/ Seat Depth

Control
