M, and N. At each pole end,

(Points A, B, C, D, E and F)

there are ¾” side-release “fly-

clip” buckles. Clip these buckles

into their corresponding mates

on the tent stake loops and pull

the straps until the fly is taught

(Figure 5). Stake out the fly vestibules away from

the tent body at points M, N, O and P. For maxi-

mum stability in high winds, guy-out the tent at

points Q, R, S and T.

Ventilate the Tent

Besides staking and guying all the points listed

above, there are a variety of ventilation options

available for the Nomad 4 CD. The full-coverage

fly can be changed into a partial-coverage fly that

covers only the top of the tent. To do this, roll up

the fly and attach the buckles at points U, V, W,

X, Y, and Z on the fly to the buckles at points G,

H, I, J, K and L on the tent (Figure 6).

To get some air moving through the tent, the

front panels of the vestibule can be short-sheeted,

or shortened, so that air passes through the bot-

tom area of the vestibule. To short-sheet the

vestibule, attach the buckles at points M, N, O

and P to the buckles at points U, V, Z and W.

(Figure 7).

Alternatively, guy cords can be attached at points

M, N, O and P on the vestibule panels and the

vestibule can be raised up and turned into awning

by attaching the guy cords to trees or trekking

poles (Figure 8).

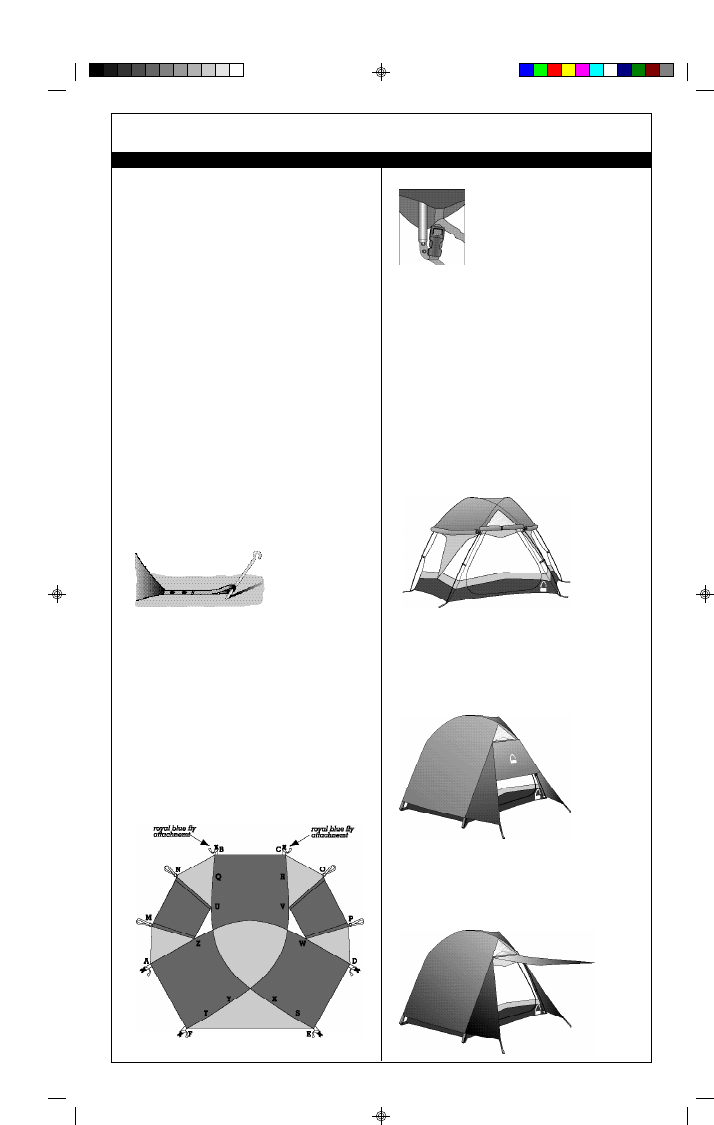

Figure 4: Flysheet (top view)

stake loops. Insert each pole tip into a grommet in

the stake loop. To help determine which pole goes

into which stake loop, follow the seam from the

end of the pole sleeve down to its corresponding

stake loop grommet. Work with one pole at a

time, inserting one tip into its stake loop grom-

met, then pushing the pole into its arched

position from the opposite end, and inserting the

other pole tip into its stake loop. To get the pole

into its arched position, it will help to grab the

stake loop in one hand and the pole in the other.

Pull the stake loop towards the pole tip, while

pushing the pole into its arched position. Repeat

this for each of the three poles. Attach the Swift

Clips on the tent body to the tent poles.

Stake Out the Tent

Use tent stakes to make the tent floor taught and

secure the tent to the ground. First, stake out the

tent at points B and C, then pull out the stake

loops at points F and E to make the tent floor

taught and stake them down. Drive the stakes into

the ground at an angle away from the tent (Figure

3). Next, pull out the stake loops at points A and

D and stake them down.

Put on the Fly

The blue and gray fly shelters the tent body from

rain, wind, and sun (Figure 4). The outside of

the fly has a flat finish and has reflective Sierra

Designs logos on it. The inside of the fly has a

shiny polyurethane finish. Drape the fly over the

tent and arrange it so the two royal blue stake

loops on the tent align with the two royal blue fly

attachment pieces on the fly at points B and C.

Also, the two vinyl windows in the fly should be

positioned just above the door panels on the tent.

Attach the fly to the tent poles via Velcro attach-

ments located underneath the fly at points K, L,

Figure 3: Stake Loops

Figure 5: Fly Clip

Figure 6: Partial Coverage Fly

Figure 7: Short-sheeted Fly

Figure 8: Fly with Awning
