SIERRA DESIGNS 2011 Cherry Street, Unit 202 Louisville, CO 80027 Phone: 303-262-3050 Fax: 303-262-3051 Toll Free: 800-635-0461

S I E R R A D E S I G N S

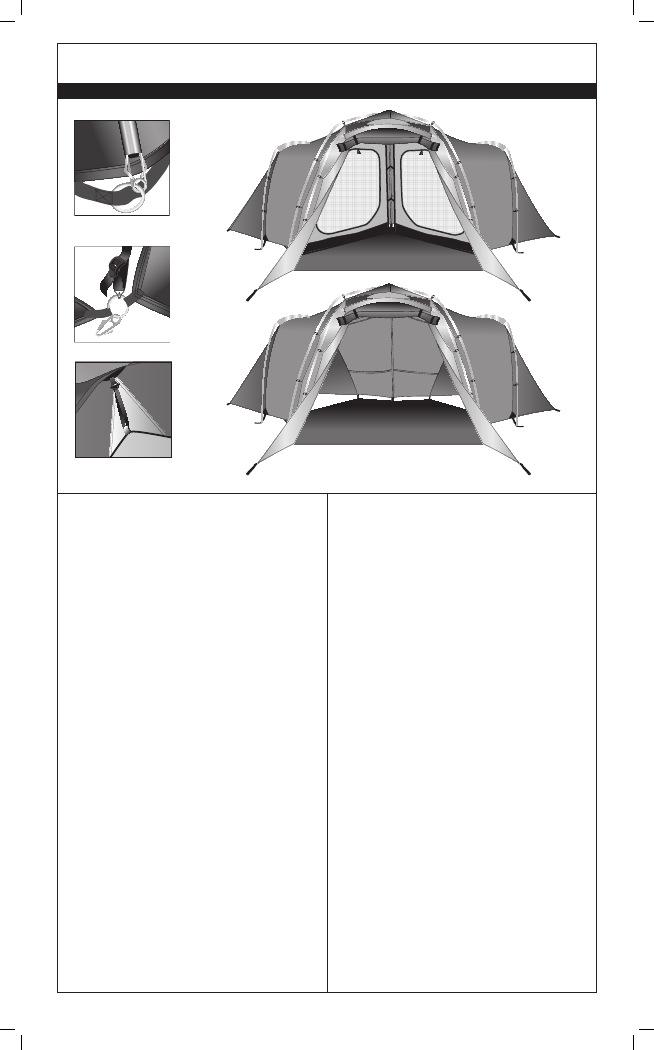

Figure 8: Toggle/Ring

BENJARI 6

Figure 7: Fly Hooks

Figure 6: Spring Clip

Figure 10: Tent with 2 rooms removed

Figure 9: Tent with 2 rooms

take the end of one of the longer poles and insert the “Spring

Clip” (Figure 6), attached to the yellow stake loops, to the end

of the pole (Figure 5, points E, F, & G). Follow this step for

the 2 remaining long sections of the main pole. Once these

three steps are complete attach the Swift Clips, designated

with yellow webbing, to their corresponding poles. You now

have 3 main body poles left. Each one of these poles are equal

in length and have 2 prebends in them, so it does not mat

-

ter which pole you use. The vestibule and sleeping rooms have

pole sleeves that the poles will needed to be threaded through.

Start by locating one of the six Navy Blue stake loops (Figure

5, point H, I, L, M, P, & Q). Thread the pole through the

pole sleeve along the axis of points H & I and then insert the

“Spring Clip” into the end of the pole tips. Attach the corre

-

sponding Swift Clips along the H – I axis. Once all the Swift

Clips are attached you will want to stake out points H & I.

While doing so, pull semi-taut away from point G & F and

stake out. Next stake out points J and K. Repeat these steps

for the L – M and P – Q axis. Your final steps are to work your

way around the tent and make sure that all of the “Fly Hooks”

(Figure 7) are attached to the Stake loop rings. There is 1 hook

for each stake out loop. Once the “Fly Hooks” are attached to

the stake loop rings work your way around the tent and adjust

them to their desired tautness.

Stake Out the Tent

By now your Benjari 6 is fully staked out and pitched. We sug

-

gest that you work your way around the tent and make any

necessary adjustments so that your tent has been pitched to its

desired tautness.

Inner Mesh Room Set-Up

Now that your Benjari 6 is pitched and you have been able to

view it from the inside you will notice that you have two sleep

-

ing rooms, a living area, and a vestibule area. You will also

notice that the two sleeping rooms are removable. By having

these two rooms removable it allows you various options for

your Benjari 6, including but not limited to, 2 rooms in (Figure

9), 1 room in and 1 room out, 2 rooms out (Figure 10), etc.

Included in your tent is a Mesh Inner room that can replace one

of the sleeping rooms. In order to use the mesh inner you first

must remove one of the sleeping rooms. To do this all you need

to do is unhook the “Toggle/Ring” (Figure 8) system and then

unclip the “side-release” buckles on the floor. To insert the in

-

ner mesh room first locate the white toggles by the larger door.

These designate the door that should face towards the center

of the tent. They will also correspond with the white rings at

-

tached to the underside of the tent fly making the installation

quick and easy. Once all the toggles (white and black) are at

-

tached you will need to attach the “side-release” buckles which

are located on the lower corners of the mesh inner. Once the

inner mesh tent is fully in place work your way around the tent

adjusting the side-release buckles to your desired tautness.

Awning Set-Up

In order to set-up the awning you will need the remaining 2

poles. On one of the ends of these poles is a thinner tip, which

will face upwards towards the sky when used correctly. Start by

unzipping any one of the tent fly doors. At the bottom of the

doors you will notice a ring on each corner. Insert the tip of

the pole into this ring. You will then need to use the provided

guy lines to stabilize the awing by staking the guy cords to the

ground.

Ventilate the Tent

You have various options for ventilating your Benjari 6. The

most effective way is to utilize the roof vents, along with the

vestibule and rainfly doors. You will notice that the roof in the

main living section of your tent there are 3 openings that allow

for ventilation. There are also two zip down panels within the

vestibule. These can be unzipped to increase the cross flow ven

-

tilation of the tent.

Footprint Set-Up

There are 2 additional footprints included with your Benjari

6. They are designed to be used under the sleeping rooms.

To attach them simply find the color coded webbing on the

footprint, starting with the yellow webbing, and attach the

side-release buckles to their corresponding mates that are

located on the tents stakeout loops. The footprints should

be orientated so that the shiny (coated) side of the footprint

is facing up.
