"Installation must conform to the standards & directives."

Manufacturer declines all responsibility for any damage that

might be caused by unsuitable or unreasonable use.

WARNING: Manufacturer cannot be held responsible for any incident

or its consequences that may arise during the use of an appliance not

linked to the earth, or linked to an earth whose continuity is defective.

Before any electrical operation, please check the supply tension

shown on the electricity meter, the adjustment of the circuit- breaker,

the continuity of the connection to earth to the installation and that the

fuse is suitable.

The electrical connection to the installation should be made according

to the rated power of the Appliance; this should be made via an Omni

pole cut-out switch.

If the appliance has a socket outlet, it must be installed so that the

socket outlet is accessible.

The yellow/green wire of the power supply cable must be connected to

the earth of both power supply and appliance terminals.

For any questions regarding power supply cord refer to After Sales

Service or a qualified technician.

If the hob is fitted with power supply cord, this shall be connected only

to a power supply of 220-240 V between phase and neutral.

It is however possible to connect the hob to:

Three Phase 220-240 V3

Three Phase 380-415 V2N

To proceed to the new connection, please follow below instructions:

Before making the connection, make sure that the installation is

protected by a suitable fuse, and that it is fitted with wires of a large

enough section to supply the appliance normally.

Turn over the hob, glass side against the working top, taking care to

protect the glass.

Open the cover in the following sequence:

231

- unscrew the cable clamp "1";

- find the two tabs located on the sides;

- put the blade of a flat screw-driver in front of each tab "2" e

"3", push in and press;

- remove the cover.

To release the power supply cord:

-Removethescrewsretainingtheterminalblockwhich

contains the shunt bars and the conductors of the supply cord;

- Pull out the supply cord.

Operations to be carried out to make a new connection:

-Choosethepowersupplycableinaccordancewiththe

recommendations in the table;

- Pass the power supply cable into the clamp;

- Strip the end of each conductor of the supply cord on a 10 mm length,

by taking in account the requested length of the cord for the

connection to the terminal block;

-According to the installation and with the help of shunt bars which you

should have recovered in the first operation, fix the conductor as

shown on the chart;

- Fix the cover;

- Screw the cable clamp.

Note: make sure the terminal board screws are tight.

Operations to be carried out to make a new connection:

-Choosethepowersupplycableinaccordancewiththe

recommendations in the table;

- Pass the power supply cable into the clamp;

- Strip the end of each conductor of the supply cord on a 10 mm length,

by taking in account the requested length of the cord for the

connection to the terminal block;

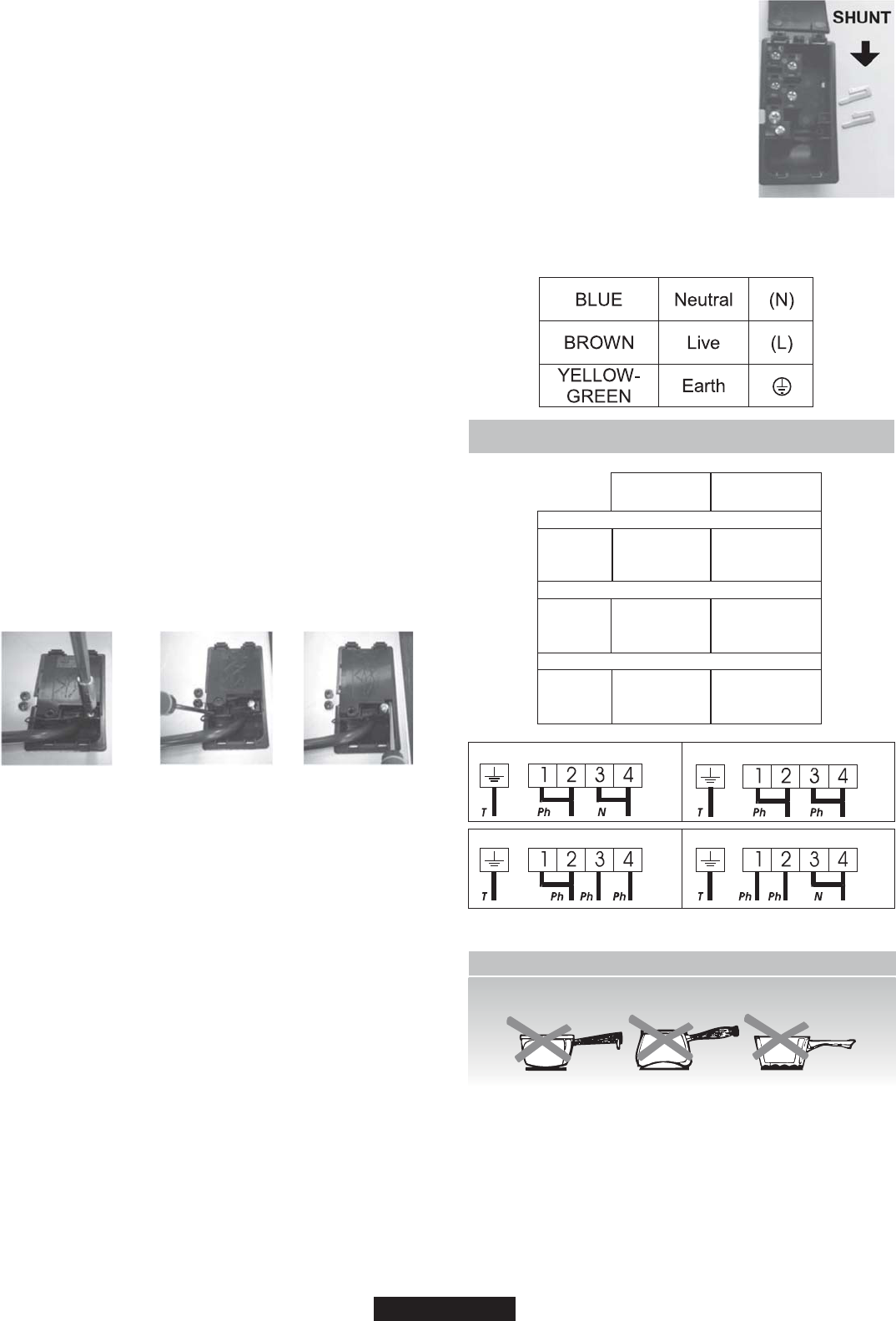

N=Neutral T=Earth

Monophase 220-240 V~

Two phases 220-240 V2~

Three phases 220-240 V3~ Three phases 380-415 V2N~

Ph = Phase

Connection to the terminals on the terminal block

ATTENTION:

If it should be necessary to replace the power supply cord, connect the

wire in accordance with following colors/codes:

LAY OUT

"1-3-5"

LAY OUT

"2-4"

MONOPHASE or TWO PHASES 220-240 V

~

Cable

HO5V2V2F

Cable

HO5V2V2F

Cable

HO5V2V2F

3x2,5 mm

2

3x4 mm

2

4x1,5 mm

2

4x1,5 mm

2

4x1,5 mm

2

4x1,5 mm

2

THREE PHASES 220-240 V3~

THREE PHASES 380-415 V2N~

-According to the installation and with the help

of shunt bars which you should have

recovered in the first operation, fix the

conductor as shown on the chart;

- Fix the cover;

- Screw the cable clamp.

06 GB

( )

5. HOB COOKWARE ADVICE

Using good quality cookware is critical for setting

the best performance from your hob.

• Always use good quality cookware with perfectly flat and thick

bases : using this type of cookware will prevent hot spots that cause

food to stick. Thick metal pots and pans will provide an even

distribution of heat.

• when fillingEnsure that the base of the pot or pan is dry :

pans with liquid or using one that has been stored in the refrigerator,

ensure that the base of the pan is completely dry before placing it on

the hob. This will help to avoid staining the hob.

• Use pans whose diameter is wide enough to completely cover

the surface unit : the size of the pan should be no s m a l l e r

than the heating area. If it is slightly wider the energy will be used at its

maximum efficiency.
