User Manual

Features

• Premium CREE XP-L HI V3 LED

• Crystal Coating Technology combined with “Precision Digital Optics Technology” for extreme reflector

performance

• Dual-switch tail cap designed for tactical use and easy application

• Powered by a dedicated 18650 rechargeable Li-ion battery

• Charged with a stable, efficient dedicated charging dock

• Maximum output up to 800 lumens

• Boasts a peak beam intensity of 25,800cd and a throw distance up to 321 meters

• Highly efficient circuit offers up to 15 hours of use

• Three selectable modes brings flexibility in operation

• STROBE READY

TM

button for quick access to Strobe (Chinese patent No.201320545349.4)

• Integrated LEDs on tail switch to indicate remaining battery power (Chinese patent No.

ZL201220057767.4)

• Anti-rolling design to provide a firm grip

• Two-way titanium steel clip included

• Toughened ultra-clear mineral glass with anti-scratch coating

• Constructed from aero grade aluminum alloy with HAIII military grade hard-anodized finish

• Waterproof in accordance with IPX-8 (two meters submersible)

• Impact resistant to 1.5 meters

Dimensions

Length: 5.55” (141mm)

Head diameter: 1.25” (31.8mm)

Tail diameter: 1” (25.4mm)

Weight: 3.81oz (108.1g, without battery)

Dock size: 3.34” x 2.6”x 2.3” (84.8mm x 66mm x 58.5mm)

Dock weight: 3.05oz (86.4g, without adapter)

*R25 NL188DW dedicated batteries are available for purchase.

Battery Options

Brightness & Runtime

Thanks for purchasing NITECORE!

The All-Round Flashlight Expert

Operation instructions

Battery installation

Install one 18650 Li-ion battery or two CR123 Li-ion

batteries with the positive pole pointing forward

(toward the bezel).

NOTE: Integrated LEDs within the tail switch will

blink to indicate remaining battery power after

battery installation. Please refer to Power Tips for

more information.

through all three brightness levels.

NOTE: When in medium and high mode, the R25 will reduce output luminance automatically after 3

minutes of use to prevent battery overheating and extend battery longevity.

To select a desired mode:

1. Ensure the R25 is switched off.

2. Loosen the head bezel.

3. Press and hold the STROBE READY

TM

button on the tailcap while simultaneously tightening the

bezel.

4. Once the bezel has been tightened, the R25 will indicate a mode has been selected by flashing once

for Tactical Mode, twice for Law Enforcement Mode or three times for General Mode.

5. To cycle through all three modes, simply repeat the above procedures.

Strobe Ready

1. With batteries loaded and the light off, press and hold STROBE READY™ button on the tailcap to

enter Strobe mode, release to exit.

2. With the light on in Tactical Mode, press STROBE READY™ button on the tailcap to enter Strobe

mode. To exit, simply press STROBE READY

TM

button again or switch the light off.

3. With the light on in Law Enforcement Mode or General Mode, press and hold STROBE READY™

button on the tailcap for more than 0.5 second to enter strobe mode. To exit, simply press STROBE

READY

TM

button again.

4. General mode provides an intelligent memory function to ensure direct access to the current Strobe

mode when reactivated.

Using Charging Dock

The R25 is capable of charging with a charging dock. You can fix the dock on a wall with screws.

Before charging, secure the flashlight to the dock. Turn the flashlight to align the charging pins on the

flashlight’s head to that on the dock. Connect the charging to a wall charger or a car adapter via its

charging cable.

1. Charging voltage is 5V, charging current 500mA.

2. The included car charger cord can only be used with 12V car charger.

Power Tips

Upon battery installation, the red power indicator LEDs in the tail switch will blink to indicate battery

power:

1. Three blinks indicate power levels above 50%;

2. Two blinks indicate power levels below 50%;

3. One blink indicates power levels below 10%.

Note: The power indication is set to be activated after 20 seconds of power cutoff. To inspect battery

power, please loosen the tail cap, wait 20 seconds and re-tighten it.

Changing / Charging Battery

Batteries should be replaced or recharged when output appears to be dim or the flashlight becomes

unresponsive.

Maintenance

Every 6 months, threads should be wiped with a clean cloth followed by a thin coating of silicon-based

lubricant.

Warranty Details

Our authorized dealers and distributors are responsible for warranty service. Should any problem

covered under warranty occurs, customers can contact their dealers or distributors in regards to their

warranty claims, as long as the product was purchased from an authorized dealer or distributor.

NITECORE’s Warranty is provided only for products purchased from an authorized source. This applies

to all NITECORE products.

Any DOA / defective product can be exchanged for a replacement through a local distributor/dealer

within the 15 days of purchase. After 15 days, all defective / malfunctioning NITECORE® products can

be repaired free of charge for a period of 60 months (5 years) from the date of purchase. Beyond 60

months (5 years), a limited warranty applies, covering the cost of labor and maintenance, but not the

cost of accessories or replacement parts.

The warranty is nullified if the product(s) is/are broken down, reconstructed and/or modified by

unauthorized parties, or damaged by batteries leakage.

For the latest information on NITECORE® products and services, please contact a local NITECORE®

distributor or send an email to [email protected].

※All images, text and statements specified herein this user manual are for reference purpose only.

Should any discrepancy occurs between this manual and information specified on www.nitecore.com.

Sysmax Industry Co., Ltd. reserves the rights to interpret and amend the content of this document at

any time without prior notice.

NOTE

The above data has been

measured in accordance with

the international flashlight

testing standards ANSI/NEMA

FL1 using 1x Nitecore

NL188DW (3.7V, 3200mAh,

dedicated to R25) battery or 2x

CR123 (3V, 1700mAh) batteries

under laboratory conditions. The

data may vary slightly during

real-world use due to battery

type, individual usage habits

and environmental factors.

R25

SYSMAX Industry Co., Ltd.

TEL: +86-20-83862000

FAX: +86-20-83882723

E-mail: [email protected]

Web: www.nitecore.com

Address： Rm1401-03, Glorious Tower, 850 East Dongfeng Road,

Guangzhou, China 510600

Please find us on facebook:

NITECORE Flashlights

Tactical Momentary Illumination

Press the tail switch partway down to turn on the flashlight, and release to turn it off.

Mode Selection

The R25 offers three different modes of illumination for different users and situations.

Mode 1-Tactical Mode: this mode only provides high output, and is ideal for self-defense,

emergencies and tactical operations.

Mode 2-Law Enforcement Mode: this mode provides two brightness levels: medium and high. This

mode is designed for law enforcement officers and patrol guards.

Mode 3-General Mode (default mode for first time use): this mode provides three brightness levels:

low, medium and high. With the light on, press the STROBE READY™ button on the tail to cycle

20160812

Accessories

Included: NL188DW dedicated battery (for

R25 only), R25 charging dock, charging

dock adapter, car charger, quality holster,

clip, tactical ring, lanyard, and spare O-ring

Optional: holster NTH30B, holster NCP30,

remote switch RSW2, tactical lanyard

NTL10/NTL20

CR123

3V

NL18650DW rechargeable lithium battery

18650

18650

3.7V

3.7V

RCR123 3.7V

TYPE

Nominal voltage

Compatible

18650 Rechargeable Li-ion battery

Primary Lithium battery *

Rechargeable Li-ion battery *

Yes (Recommended and

can be recharged)

Yes (Compatible but can

NOT be recharged)

Yes (Compatible but can

NOT be recharged)

Yes (Compatible but can

NOT be recharged)

*Warning: The charging dock can only charge an R25 with dedicated NL188DW battery. Do not

charge ordinary 18650, CR123 or RCR123 batteries with the charging dock.

1

h

9

h

12

h

800

25,800

cd

(Peak Beam Intensity)

321

m

(Beam Distance)

1.5

m

(Impact Resistant)

230 120 50

3

h30min

5

h30min

2×CR1231×18650

45min

15

h

11

h

HIGH(

Mode 1,2,3

)

MID(

Mode 3

)

MID (

Mode 2

)

LOW (

Mode 3

)

LUMENS

LUMENS LUMENS

LUMENS

IPX-8, 2m

(Waterproof AND Submersible)

3. When abnormal charging situations are detected (such as

non-rechargeable battery inserted, battery polarity reversed or

no battery inserted at all), the R25 will automatically stop

charging, and alert the user with blue LED blinks.

4. During charging, the blue indicator LED blinks every 1.5

seconds; upon charging completion, the R25 automatically

stops charging, and the blue LED goes constantly on.

5. The R25 charging dock can only charge an R25 with an

NL188DW dedicated battery. Do not charge an R25 on the

charging dock with ordinary 18650, CR123 or RCR123

batteries.

NL188DW

Betyg

Mer om denna bruksanvisning

Vi förstår att det är trevligt att ha en pappersbruksanvisning för din Nitecore R25 Ficklampa. Du kan alltid ladda ner bruksanvisningen från vår hemsida och skriva ut den själv. Om du vill ha en originalbruksanvisning rekommenderar vi att du kontaktar Nitecore. De kanske kan tillhandahålla en originalbruksanvisning. Letar du efter bruksanvisningen för din Nitecore R25 Ficklampa på ett annat språk? Välj ditt föredragna språk på vår hemsida och sök efter modellnumret för att se om vi har det tillgängligt.

Specifikationer

Alla bruksanvisningar för Nitecore Ficklampor
Fler bruksanvisningar för Ficklampor

Vanliga frågor om Nitecore R25 Ficklampa

Vårt supportteam söker efter användbar produktinformation och svar på vanliga frågor. Om du hittar en felaktighet bland våra vanliga frågor uppskattar vi om du meddelar oss detta via vårt kontaktformulär.

Relaterade produkter

Bruksanvisning

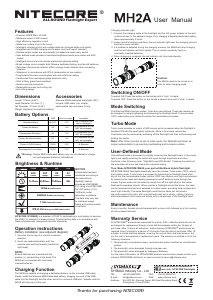

Nitecore MH2A Ficklampa
