User Manual

Features

• Premium CREE XM-L2 (T6) LED

• Maximum output of 800 lumens

• Crystal Coating Technology combined with “Precision Digital Optics Technology” for

extreme reflector performance

• Boasts a peak beam intensity of 9,300cd and a throw distance of up to 193 meters

• Highly efficient circuit offers up to 26 hours of use on low

• Dual-switch tail cap designed for tactical use and easy application

•

STROBE READY

TM

button for quick access to Strobe Mode (Chinese Patent:

201320545349.4)

• Three selectable modes brings flexibility in operation

• Tail switch features integrated power indicator to display remaining battery power

(Chinese Patent: ZL201220057767.4)

• Anti-rolling design to provide a firm grip

• Titanium steel clip included

• Toughened ultra-clear mineral glass with anti-scratch coating

• Constructed from aero grade aluminum alloy with HAIII military grade hard-anodized

finish

• Waterproof in accordance with IPX-8 (two meters submersible)

• Impact resistant to 1.5 meters

Dimensions

Length: 134mm (5.28”)

Head Diameter: 25.4mm (1)

Tail Diameter: 25.4mm (1”)

Weight: 82grams (2.89oz)(without battery)

Thanks for purchasing NITECORE!

Brightness & Runtime

The All-Round Flashlight Expert

Accessories

Included: quality holster, CR123 battery

magazine, clip, tactical ring, lanyard, spare

O-ring

Optional: remote switch RSW2, tactical

lanyard NTL10/NTL20

Battery Options

Operation Instructions

Battery Installation

Install one 18650 Li-ion battery or two

CR123 Li-ion batteries with the positive pole

pointing forward (toward the bezel).

NOTE: Integrated LEDs within the tail switch

will blink to indicate remaining battery power

after battery installation. Please refer to

Power Tips for more information.

WARNING

1. Install the batteries as instructed.

Incorrect battery installation can cause

unsuccessful activation.

2. NBM1618 battery magazine holds 2 ×

CR123 Li-ion batteries, inhibits battery

movement inside the tube and helps

maintain electrical continuity.

3 This product CANNOT be powered by

flat-top batteries.

4. AVOID direct eye exposure.

Switching ON/OFF

To switch ON: Press the tail button until a “click” is heard.

To switch OFF: with the light on, press the tail button again until a “click” is heard.

Mode Selection

The P10 offers three different modes of illumination for different users and situations.

Tactical Mode: this mode only provides turbo output, and is ideal for self-defense,

emergencies and tactical operations.

Law Enforcement Mode: this mode provides two brightness levels: medium and

turbo. This mode is designed for law enforcement officers and patrol guards.

General Mode (default mode for first time use): this mode provides three brightness

levels: low, medium and turbo. With the light on, press the

STROBE READY

TM

button on the

tail to cycle through all three brightness levels.

NOTE: When in medium and turbo mode, the P10 will reduce output luminance

automatically after 3 minutes of use to prevent battery overheating and extend battery

longevity.

To select a desired mode:

1. Ensure the P10 is switched off.

2. Loosen the bezel.

3. Press and hold the STROBE READY

TM

button on the tailcap while simultaneously

tightening the bezel.

4. Once the bezel has been tightened, the P10 will indicate a mode has been selected

by flashing once for Tactical Mode, twice for Law Enforcement Mode or three times for

General Mode.

5. To cycle through all three modes, simply repeat the above procedures.

Strobe Ready

1. With batteries loaded and the light off, press and hold STROBE READY

TM

button on the

tailcap to enter Strobe mode, release to exit.

2. With the light on in Tactical Mode, press

STROBE READY

TM

button on the tailcap to enter

Strobe mode. To exit, simply press

STROBE READY

TM

button again or switch the light off.

3. With the light on in Law Enforcement Mode or General Mode, press and hold

STROBE READY

TM

button on the tailcap for more than 0.5 second to enter strobe mode. To

exit, simply press

STROBE READY

TM

button again.

Note: This product has memory effect to ensure direct access to the last used

brightness levels or strobe when resumed.

Power Tips

Two integrated red LEDs built into the tail switch blink to indicate remaining battery

power when the tail cap is tightened after battery installation. The power indicators

will blink three times when power levels are above 50%; twice when power levels are

below 50%; and once when battery power is close to depletion.

NOTE: When batteries are already installed and a precise power reading is required,

ensure the P10 is powered down for 20 seconds before retightening the tail cap to

detect battery power status.

Changing Batteries

Batteries should be replaced when any of the following occurs: The power indicators

blink rapidly, output appears to be dim or the flashlight becomes unresponsive.

Maintenance

Every 6 months, threads should be wiped with a clean cloth followed by a thin coating

of silicon-based lubricant.

Warranty Service

All NITECORE® products are warranted for quality. Any defective / malfunctioning

NITECORE® product can be repaired free of charge for a period of 60 months (5

years) from the date of purchase. Beyond 60 months (5 years), a limited warranty

applies, covering the cost of labor and maintenance, but not the cost of accessories

or replacement parts.

The warranty is nullified in all of the following situations:

1. The product(s) is/are broken down, reconstructed and/or modified by unauthorized

parties.

2. The product(s) is/are damaged through improper use.

3. The product(s) is/are damaged by leakage of batteries.

For the latest information on NITECORE® products and services, please contact a

local NITECORE® distributor or send an email to [email protected]

※All images, text and statements specified herein this user manual are for reference

purpose only. Should any discrepancy occurs between this manual and information

specified on www.nitecore.com, information on our official website shall prevail.

Sysmax Industry Co., Ltd. reserves the rights to interpret and amend the content of

this document at any time without prior notice.

NOTE

The above data has been

measured in accordance with the

international flashlight testing

standards ANSI/NEMAFL1 using 1

x 3.7V 2600mAh Nitecore 18650

battery and 2 x 3V 1550mAh

Nitecore CR123 batteries under

laboratory conditions. The data

may vary slightly during real-world

use due to battery type, individual

usage habits and environmental

factors.

TYPE

Nominal voltage

Compatible

Primary Lithium battery

CR123 3V

Y (Recommended)

18650 Rechargeable Li-ion battery

18650 3.7V

Y (Recommended)

Rechargeable Li-ion battery

RCR123 3.7V

Y

P10

SYSMAX Industry Co., Ltd.

TEL: +86-20-83862000

FAX: +86-20-83882723

E-mail: [email protected]

Web: www.nitecore.com

Address： Rm1401-03, Glorious Tower, 850 East Dongfeng Road,

Guangzhou, China 510600

HIGH MID LOW

LUMENS

290

LUMENS

800

LUMENS

40

4

h30min

26

h

9

h

LUMENS

400

LUMENS

800

LUMENS

70

1

h30min

2

h30min

10

h30min

193m

(Beam Distance)

9300cd

(Peak Beam Intensity)

IPX-8, 2m

(Waterproof AND Submersible)

1.5m

(Impact Resistant)

Tactical Momentary Illumination

Simply half press and hold the tail switch to turn on the flashlight, and release

to turn it off.

20150916

Please find us on facebook:

NITECORE Flashlights

Betyg

Mer om denna bruksanvisning

Vi förstår att det är trevligt att ha en pappersbruksanvisning för din Nitecore P10 Ficklampa. Du kan alltid ladda ner bruksanvisningen från vår hemsida och skriva ut den själv. Om du vill ha en originalbruksanvisning rekommenderar vi att du kontaktar Nitecore. De kanske kan tillhandahålla en originalbruksanvisning. Letar du efter bruksanvisningen för din Nitecore P10 Ficklampa på ett annat språk? Välj ditt föredragna språk på vår hemsida och sök efter modellnumret för att se om vi har det tillgängligt.

Specifikationer

Alla bruksanvisningar för Nitecore Ficklampor
Fler bruksanvisningar för Ficklampor

Vanliga frågor om Nitecore P10 Ficklampa

Vårt supportteam söker efter användbar produktinformation och svar på vanliga frågor. Om du hittar en felaktighet bland våra vanliga frågor uppskattar vi om du meddelar oss detta via vårt kontaktformulär.

Relaterade produkter

Bruksanvisning

Nitecore MH2A Ficklampa

Bruksanvisning

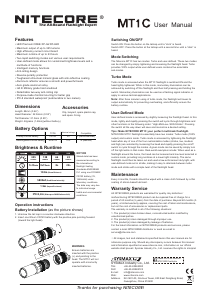

Nitecore MT1C Ficklampa

Bruksanvisning

Nitecore NU30 Ficklampa

Bruksanvisning

Nitecore TM26 Ficklampa

Bruksanvisning

Nitecore P25 Smilodon Ficklampa

Bruksanvisning

Nitecore MT2A Ficklampa

Bruksanvisning

Nitecore P12GT Ficklampa

Bruksanvisning

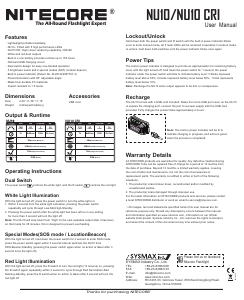

Nitecore NU10 CRI Ficklampa
