Bruksanvisning Muse M-1228 BT Bilradio

Bruksanvisning

1. Do not attempt to modify the unit, modifying the unit may cause an accident.

2. Installation or servicing of the unit by persons without training and experience in

electronic equipment and automotive accessories may be dangerous and could

expose you to the risk of electric shock or other hazards.

3. Stop the vehicle before carrying out any operation that could interfere with your

driving.

4. Keep the volume at a level which you could hear sounds from outside the vehicle.

5. Do not work in extremely high or low temperature. Be sure the temperature inside

the vehicle is between +60°C and -10°C before turning on your unit.

6. When replacing the fuse(s), the replacement must be of the same amperage as

shown on the fuse holder.

7. Do not block vents or radiator panels. Blocking them will cause heat to build up

inside and may result in re.

8. Using this unit without running the engine can result in battery drainage.

9. Use only in cars with a 12 volt negative ground.

10. After completing the installation or replacing the car battery, you need to RESET the

unit before using it. Remove the front panel and press RESET button on the base

with pointed object (such as ball-point pen) to reset the unit to its initial settings.

11. Before you install the unit, remove two screws on top of the unit absolutely.

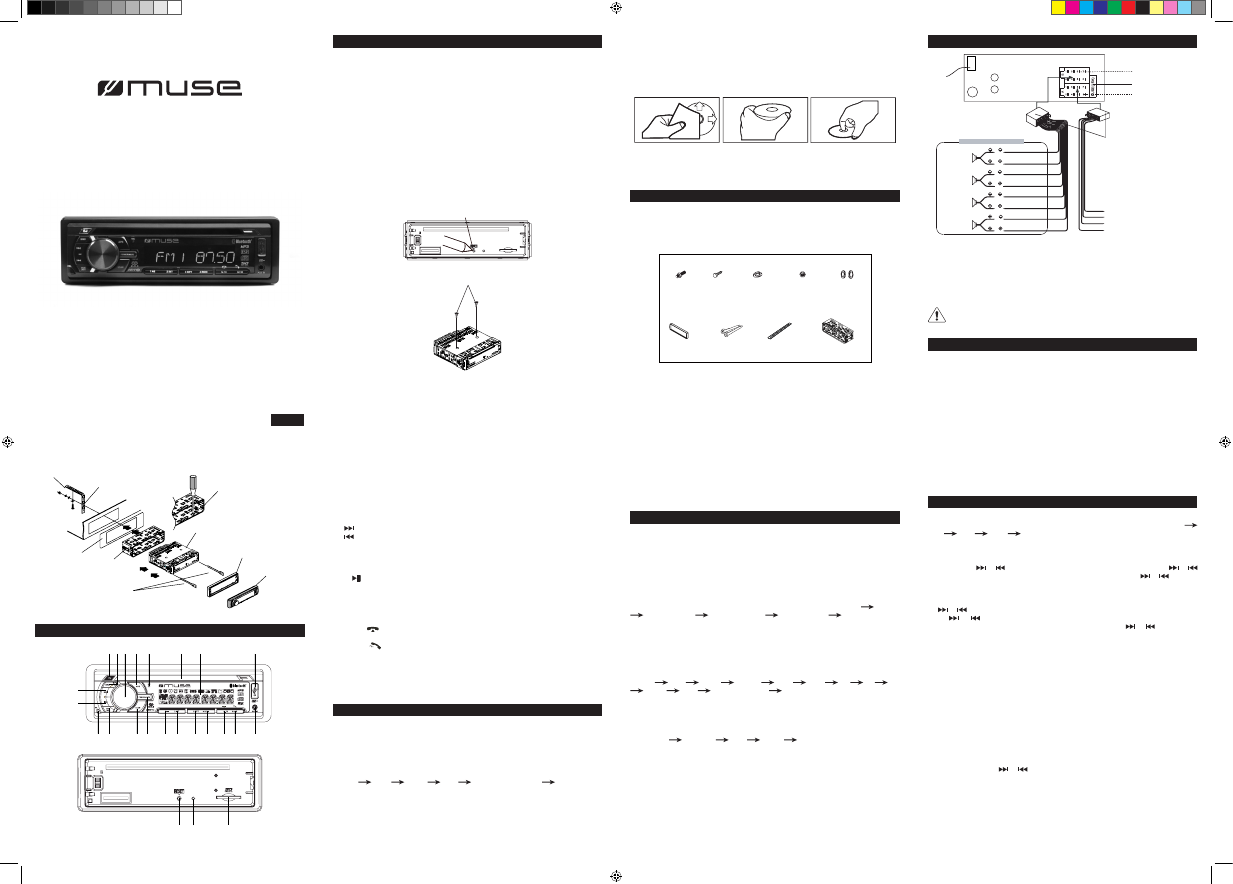

M-1228 BT

GB - 1

User Manual

CAR RADIO CD/MP3 PLAYER WITH USB & SD

Please read the instruction carefully

before operating the unit.

PRECAUTIONS

GB - 2 GB - 3

CONNECTION

Do not connect the ignition wire (red) and the battery wire (yellow), it may cause

a short circuit, even result in re.

GB - 4 GB - 5 GB - 6

UNPACK YOUR UNIT

When you unpack your new car radio, make sure that you have removed all the

accessories and information papers:

Main unit

User manual

Accessories:

The unit is installed to be an anti-theft one. The chassis of the unit wears a sliding

metal housing. Please do the connection of the power. Speakers and antenna are

according to the requirement of the instruction book. Then install the sliding metal

housing in the car as follows:

INSTALLATION

GB - 7

BASIC OPERATION

English

• Do not attempt to load more than one disc.

• Only 12cm discs are compatible.

• New discs may have some roughness around the edges. Before load such disc into

the player, use a ball-point pen or the like to remove any roughness from the edge of

the disc.

• If there is a scratch, dirt or ngerprints on the disc, it may cause tracking error. Before

playing, clean the disc with a clean cloth. Wipe the disc from the center out.

• Don’t store discs in places with high temperatures or high humidity, they can become

warped. After playing, store the disc in its case.

7

Keys x2

Screw x1

2

3

Spring Washer x1

4

Hex Nut x1

5

Plain Washer x2

6

Outer Trim

Frame x1

Rear Mounting

Bolt x1

1

8 9

Steel Bar x1 Mounting sleeve x1

LOCATION OF CONTROLS

1. EJ (eject) button: To eject the disc from disc slot.

2. BND (BAND) button: To select band: FM1, FM2, FM3, MW1 or MW2.

3. MENU setting; volume adjusting knob

4. APS button

5. Built-in microphone

6. Disc slot

7. LCD display

8. USB port

9. button

10. button

11. REL (release) button: Press to release the front panel.

12. MOD/PTY (mode) button

13. SCAN button

14. POWER/MUTE button: To turn unit on /off; To mute or restore sound.

15. 1/ button: To select preset channel 1 in radio mode. To start or pause playback.

16. 2/INT button: To select preset channel 2 in radio mode. To start/ cancel intro

playback.

17. 3/RPT button: To select preset channel 3 in radio mode. To repeat playback.

18. 4/RDM button: To select preset channel 4 in radio mode. To start/ cancel random

playback.

19. 5/ -10/ button: To select preset channel 5 in radio mode; To skip backward 10

tracks (mp3 only). To hang up the call.

20. 6/ +10/ button: To select preset channel 6 in radio mode; To skip forward 10

tracks (mp3 only). To answer the phone.

21. AUX IN jack

22. SD/SDHC/MMC Card Slot

23. RESET button

24. Indicator Light: when the front panel is removed, the indicator ashes.

SOUND FEATURES

Reset the unit

Operating the unit for the rst time or after replacing the car battery, you must reset

the unit. To set the unit to initial status, press RESET button located on the base with

a pointed object. When some errors occur in display, you can also reset the unit, but it

will erase the clock setting and some memorized functions.

Volume adjusting:

To increase or decrease the sound level, rotate volume knob clockwise or anti-

clockwise.

Muting the sound

When the unit is ON, press MUTE to mute the sound. Press again to restore.

Using MENU/volume knob to select sound feature

1) Repeatedly press MENU/volume knob

To select the desired mode for sound setting in the following order: VOL “BASS”

“TRE” (Treble) “BAL” (Balance) “FAD” (Fader) PTY NONE/ PTY

NAME.

After selecting the desired mode, you can adjust the level by rotating the volume knob.

Noted: If corresponding PTY name exist, PTY name will be displayed. If PTY name

does not exist, “PTY NONE” appears.

2) In FM mode, press and hold MENU/volume knob, the unit will enter setting menu.

Shortly press MENU/volume knob will show below items:

IN VOL DSP BEEP TA VOL EON REG AF TA EQ

LOUD LOC MONO/ STEREO AREA

After that, rotate MENU/volume knob to choose corresponding setting desired.

Preset equalizer (EQ)

When you are listening to pop music, classic music or rock music, use the equalizer to

adjust the sound quality. Rotate volume knob to select different equalizer mode in following

order: FLAT CLASSIC POP ROCK EQ OFF.

IN VOL

When “IN VOL” will be displayed, rotate volume knob to preset a constant switch-on

volume.

Switching Loudness on/off

By this function, you can increase the low frequency, which can improve sound

sensitivity.

Beep Tone

Choosing corresponding status can turn on or turn off beep.

LISTENING TO THE RADIO

Selecting band

In tuner mode, repeatedly press BND button to select bands in following order: FM1

FM2 FM3 MW1 MW2.

Manual/automatic tuning

- Manual Tuning

Press and hold or button until “MANUAL” shows on display, then press or

continuously to select a station downward or upward. Press and hold or button to

tune the station with a faster speed.

- Automatic Tuning

By or button

Press or button once, the radio automatically searches a station upward or

downward respectively and plays when it nds a station. Press or again to stop

scanning.

By SCAN button

Press SCAN button once, the radio will automatically searches a station, the current station

will blink 5 seconds, then press SCAN button again to remain and playback the current

frequency. If no key is press within 5 seconds, the unit will scan continually.

Noted: If AF or TA function is on, the unit will automatically search a RDS signal station

only.

Scanning and memorizing stations

- By APS button.

In tuner mode, press and hold APS button for 3 seconds to start scanning for stations and

store them automatically in memory. All preset stations are scrolled during few seconds

under your selected band. To remain on a station, press again the APS button.

- By number button 1- 6

1. Tune to a station by or button.

2. Press and hold one of the 1- 6 number buttons for 2 seconds until LCD shows the

corresponding number, which indicates that station is stored in the corresponding

number button.

3. Under radio mode, press 1- 6 Number buttons to listen to stored stations.

4. When you are listening to a station stored on a number button, press and hold another

number button for more than 2 seconds to store the station on this number button.

Note: The unit can be stored up to 6 stations for each band.

Reset

Caution!

- Make sure to connect the color coded leads according to the diagram. Incorrect

connections may cause the unit to malfunction or damage the vehicle’s electrical

system.

- Make sure to connect the speaker (-) leads to the speaker (-) terminal. Never connect

the left and right channel speaker cables each other or to the vehicle body.

- Make sure all the connections are completely correct before turning on your unit.

Steel bar

To boost up the capability

of anti-jamming. Please fix

the steel bar on the metal

connected to the bottom

bracket of the car

Bend these claws outward

for a tight fit, if necessary

Main unit

Dash board

Mounting sleeve

To take out the main unit, insert

the two keys in the holes on each

side between the main unit and

mounting sleeve.

Outer trim frame

Detachable front panel

9

10

11 12 13 14 15 16 17 18 19 20 21

1 6 7 82 3 4 5

23 24 22

Noted:

- Please refer to BASIC OPERATION for “DSP”.

- Please refer to “LISTENING TO THE RADIO” for others items operation.

Turning on/off the unit

Press POWER button to turn on the unit. Press and hold this button again to turn off the

unit.

Note: When the unit is off, press any key except REL and EJ to turn on the unit.

Selecting the mode

When the unit is on, press MOD button repeatedly to select different source mode:

TUNER DISC CARD USB BT AUDIO (Bluetooth) AUX.

Adjust time:

1. Press and hold MENU/ Volume knob to enter into setting mode

2. Repeatedly press MENU/ Volume knob to select DSP mode.

3. Rotate MENU/ Volume knob clockwise and anti-clockwise to adjust the hour and

minute value. It will conrm your setting if no key is pressed within 5 seconds.

Notice on disc

Use such discs may cause malfunction or breakdown of the internal mechanism:

With large scratches; with irregular shape; cracked; with any cellophane tape or other

glue on it or with peeling off marks; with protection sheet; equipped with stabilizers, etc.

4 SPEAKER SYSTEM

Rear Left

speaker

Front Left

speaker

Front Right

speaker

Rear Right

speaker

(Green/Black)

(Green)

(White/ Black)

(White)

(Gray/ Black)

(Gray)

(Violet/ Black)

(Violet)

B1

B2

B3

B4

B5

B6

B7

B8

ANTENNA

SOCKET

LINE OUT

L-CH (WHITE)

R-CH (RED)

ISO CABLE

(NOT INCLUDED)

ISO CONNECTOR B

ISO CONNECTOR A

FUSE HOLDER (15A)

A8

A7

A5

A4

Ground wire (Black)

Ignition wire (Red)

Power Antenna Amplifier Turn on (Blue)

+12V Constant Power Supply (Yellow)

Bluetooth

Antenna Wire
