Bruksanvisning

3

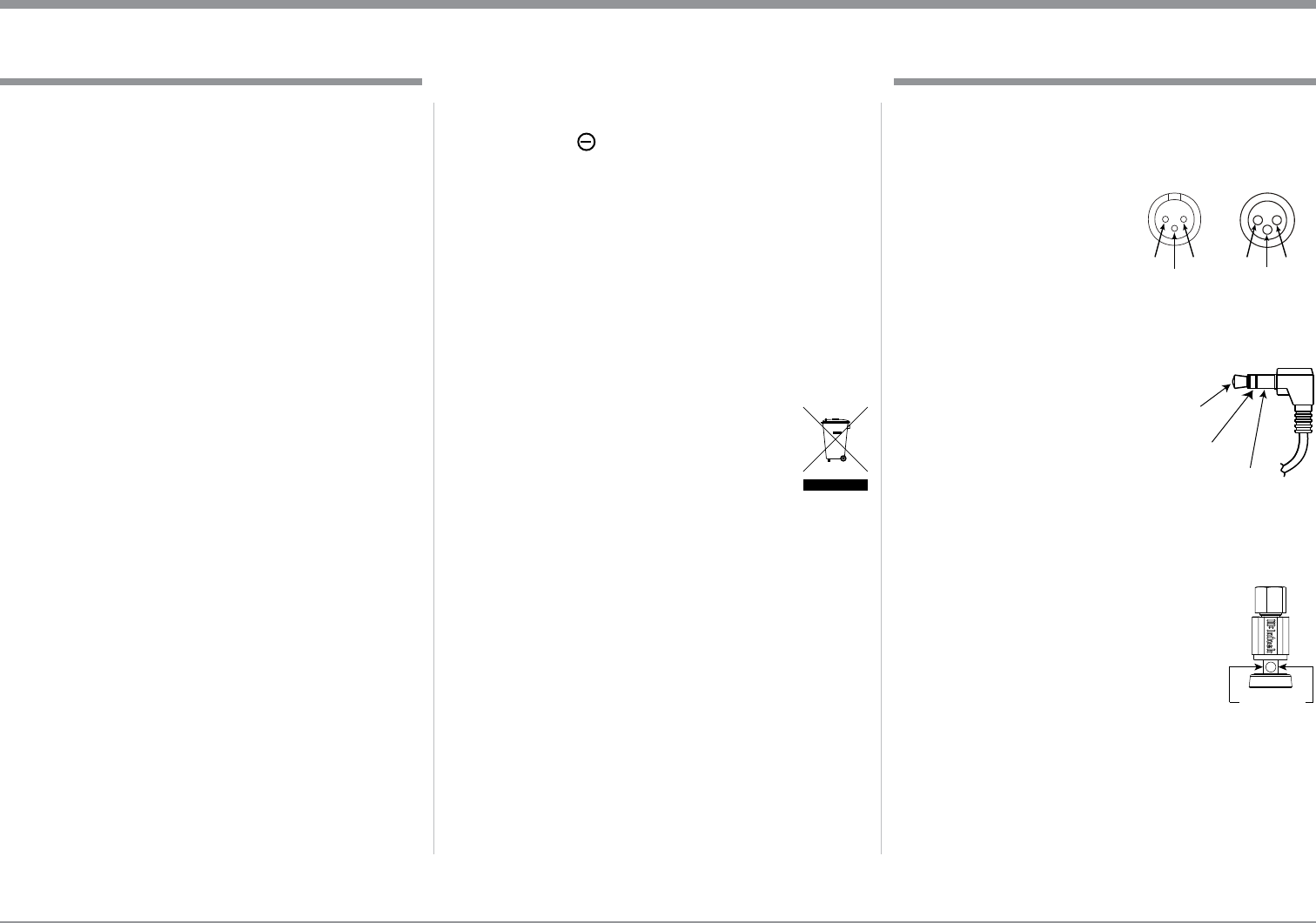

XLR Connectors

Below is the Pin configuration for the XLR Balanced

Input, Input/Output Connectors on the MC1.25KW.

Refer to the diagram for connection:

PIN 1: Shield/Ground

PIN 2: + Input/Output

PIN 3: - Input/Output

Power Control Connector

The MC1.25KW Power Control Input (Trigger Con-

trol) receives an On/Off signal from +5 to +12 volts.

The Power Control Output

will in turn provide a +12 volt

Output Signal with a total cur-

rent up to 50mA. An additional

connection is for controlling the

illumination of the McIntosh

Power Output Meters. The 3.5mm stereo mini phone

plug connects to another McIntosh Power Amplifier.

Output Terminal Connector

When cables with spade lugs are used

for Loudspeaker Connection, the spade

lugs need an opening of at least 3/10 inch

(7.6m m)

5. The MC1.25KW incorporates the very latest in

Fully Double Balanced Circuitry. As a result, the

Loudspeaker Negative Connections are above

chassis ground. Do not combine any connections

together, ground them or connect with another

MC1.25KW.

6

. In the event the MC1.25KW over heats, due to im-

proper ventilation and/or high ambient temperature,

the protection circuits will activate. The Front Panel

Power Guard LED will continuously indicate ON

and the audio will be muted. When the MC1.25KW

has returned to a safe operating temperature, nor-

mal operation will resume.

7. When discarding the unit, comply with local rules

or regulations. Batteries should never be

thrown away or incinerated but disposed

of in accordance with the local regulations

concerning battery disposal.

8. For additional information on the MC1.25KW and

other McIntosh Products please visit the McIntosh

Web Site at www.mcintoshlabs.com.

Caution: The MC1.25KW Amplifier weight is 158 pounds

(71.7 kilograms). It requires two or more per-

sons to safely handle when moving the ampli-

fier.

1. For additional connection information, refer to the

owner’s manual(s) for any component(s) connected

to the MC1.25KW.

2. The MC1.25KW mutes the speaker output for ap-

proximately two seconds when first turned on.

3. For the best performance and safety it is important

to always match the impedance of the Loudspeaker

to the Power Amplifier connections. Refer to “How

to Connect” pages 8 thru 11.

Note: The impedance of a Loudspeaker actually var-

ies as the Loudspeaker reproduces different

frequencies. As a result, the nominal impedance

rating of the Loudspeaker (usually measured at

a midrange frequency) might not always agree

with the impedance of the Loudspeaker at low

frequencies where the greatest amount of power

is required. Contact the Loudspeaker Manufac-

turer for additional information about the actual

impedance of the Loudspeaker before connecting

it to the McIntosh MC1.25KW.

4. It is very important that loudspeaker cables of ad-

equate size be used, so that there will be no power

loss. The size is specified in Gauge Numbers or

AWG, (American Wire Gauge). The smaller the

Gauge number, the larger the wire size:

If your loudspeaker cables are 50 feet (38.1m) or less,

use at least 14 Gauge.

If your loudspeaker cables are 100 feet (76.2m) or

less, use at least 12 Gauge.

General Information Connector and Cable Information

Trigger

Control

Ground

Meter

Illumination

Control

PIN 1

PIN 2

PIN 3

PIN 2 PIN 1

PIN 3

OUT

IN

3/10 of an inch

(7.6millimeters)

General Information and Cable Information
