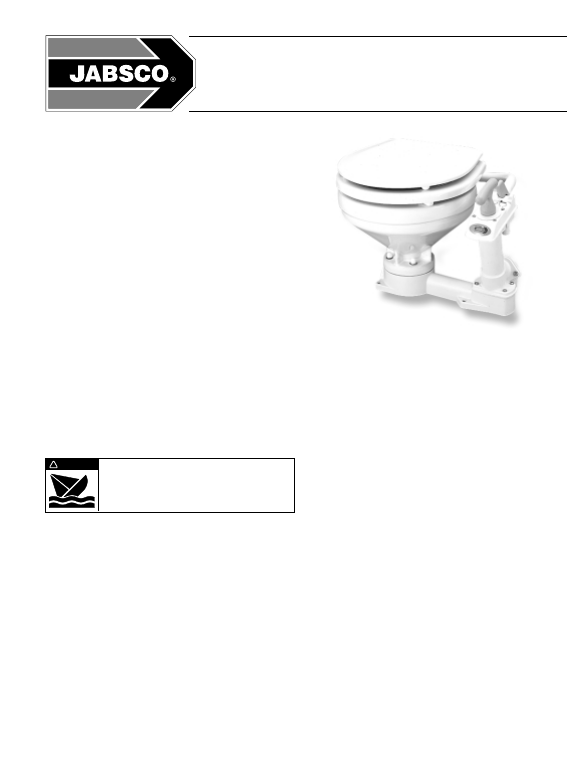

Bruksanvisning Jabsco 29090-2000 Toalett

Bruksanvisning

Models 29090-2000

29120-2000

MANUAL MARINE TOILET

FEATURES

• Easy to clean white ceramic bowl

• Sturdy wood seat with durable baked enamel finish

• Forward angled pump for easy operation

• Convenient top-mounted dry bowl selector

• Reversible pump mounting for right or left hand

installation

• External seal housing/rod guide for easy replacement

• Extra large seal housing allows piston rod assembly to

be removed without removing valve cover

• Smooth external surfaces with skirted base to maintain

cleanliness

• Base of pump and valve cover are skirted to conceal

gasket/flap valves

• Triadic full-flow joker valve to avoid accidental blockage

• Multi-angle discharge port for versatility of plumbing

connection

VARIATIONS AVAILABLE

MODEL NO. DESCRIPTION

29090-2000 Compact Size Bowl & Seat

29120-2000 Household Size Bowl & Seat

SPECIFICATIONS

Inlet port – 3/4"

Disharge port – 1-1/2"

Weight – compact bowl: 26 lb

large bowl: 32 lb

APPLICATION

The Jabsco Manual toilet is designed to meet the require-

ments of onboard marine applications. It may be installed

above or below the waterline. If the toilet is, or can be,

below the waterline at any normal (including static) attitude

of vessel heel and/or trim, a 3/4" Vented Loop Fitting must

be installed in a length of hose that connects the flushing

pump to the rear of the bowl. The vented Loop Fitting

should be positioned so it remains about eight inches or

more above the waterline at all angles of heel and trim. If

the toilet is plumbed to an overboard discharge, the

discharge hose must also include a Vented Loop Fitting.

(See WARNING.) The toilet may be plumbed so waste is

Models 29090-2000 & 29120-2000

discharged to holding tank, directly overboard (where

permitted by law) or into a certified waste treatment device.

For installation versatility, the pump assembly may be

positioned on the left or right hand side of the bowl. Its

multi-angle discharge port will allow routing of discharge

hose in almost any direction for ease of installation and

neat appearance.

The toilet is available with either a compact china bowl to fit

restrictive areas or a large bowl with household size seat

assembly for maximum comfort. Its forward angled double

action pump with convenient top mounted dry bowl selector

is easy and natural to operate. It is self-priming with a dry

suction lift of up to 3 feet (1 meter) and a discharge head to

9 feet (3 meters). A full-flow triadic joker valve resists

blockage while providing positive back-flow prevention.

OPERATION

Manual Marine toilets have traditionally been somewhat

cumbersome and confusing to operate and maintain. The

Jabsco toilet has been designed with user convenience in

mind. The pump assembly is angled forward to provide a

natural, smooth stroke action. It has a top mounted wet/dry

bowl selector which can be operated with the same hand

used for pumping without releasing the pump handle.

The Jabsco toilet is surprisingly easy to operate. Simply

move the wet/dry bowl selector to the wet bowl position

(left) and pump handle up and down a few times to add

some water to the bowl prior to use. After using, flush by

again pumping handle up and down (in wet bowl position)

until bowl is thoroughly rinsed and evacuated. Then move

the wet/dry bowl selector to the dry bowl position (right)

and continue pumping until only about one cup of water

remains in the bottom of bowl. Leave the wet/dry bowl

selector in the dry bowl position when toilet is not in use.

Flood hazard. If toilet is installed below the

waterline or may be below the waterline at any

angle of heel or trim, it must be installed with

properly positioned vented loops. Failure to do

so can result in flooding which can cause loss

of property and life.

WARNING

!
