Attach the y to the tent:

• Turn the fly top side up. Start at one end

and drag the fly up and over the top of

the tent [works best with two

people]. It only fits one way; align

the yellow web of the fly to the

yellow web on the tent. See fig.8.

• Reach under the fly and wrap all

the Velcro® straps around the

poles to secure the fly to the

frame. See fig. 9.

Stake down the y:

• There are, web/ring assemblies

on the bottom at each side of the

fly vestibule door. Pull these out and

away from the tent and to stake down.

Adjust as necessary. See fig.10.

• Locate the long web/buckle assemblies on the underside at each corner

of the fly. Attach these buckles to their mates on the corner stake-out

webs and adjust to proper tension. See fig. 11.

fig.9

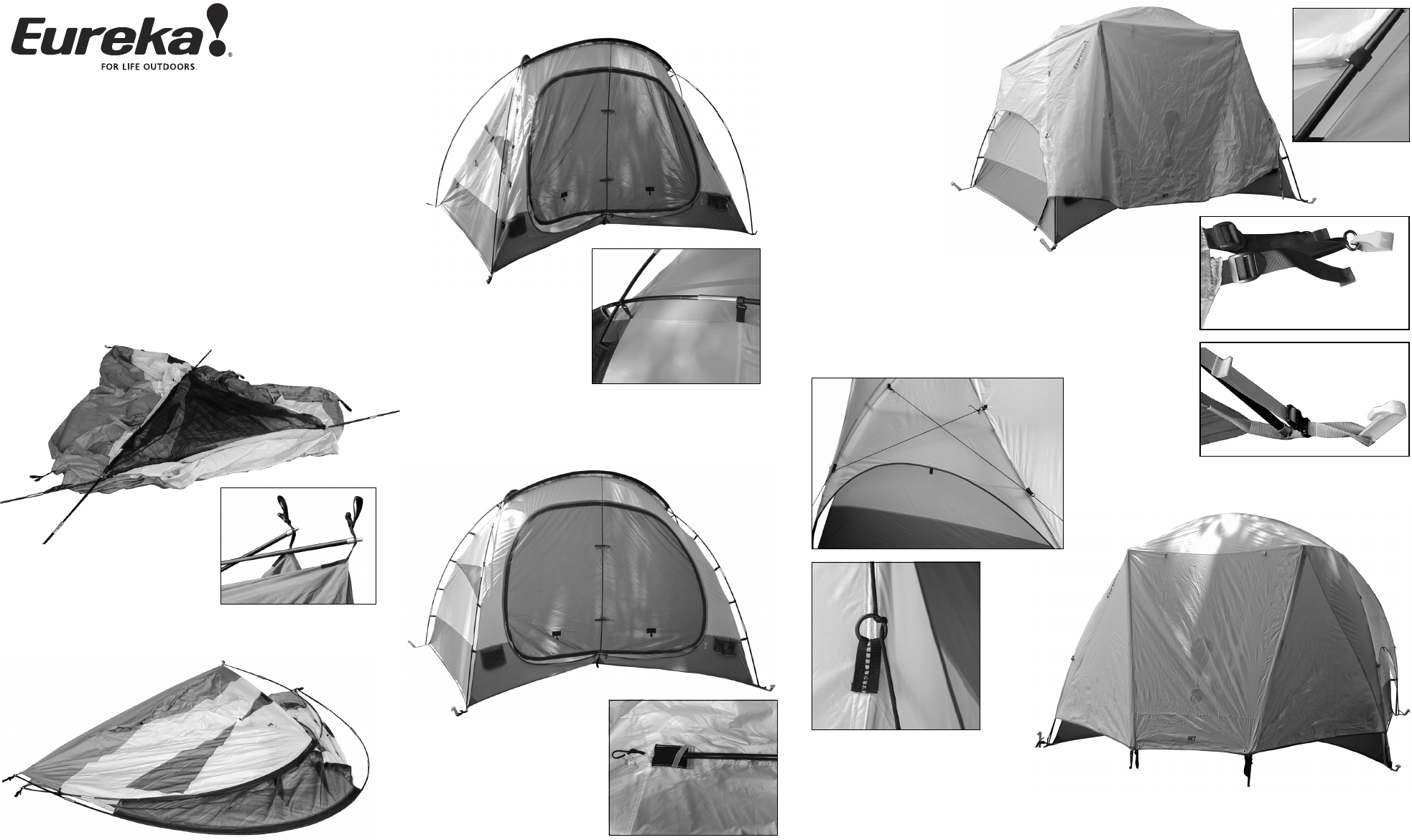

ASSEMBLY INSTRUCTIONS

FOR THE SUITE 4 and SUITE 6

CAMPING TENTS

fig.6

fig.8

Component List: 1 Tent, 2 Tent Poles, 1 Hoop, 2 Fly Poles, 1 Carry Bag,

1 Pole Bag, 1 Stake Bag w/ Stakes and Guys, 1 Rain Fly, 1 Storage

Basket and 1 Divider Curtain in the Suite 6

NOTE: This is a large family style tent and we recommend that you

have two people for setup.

Do not drop tent bag or pole bag on its end.

Do not bounce tent bag on its end to get the tent out. These actions

may cut the shock cord and/or damage the pole ends.

Raise the tent:

• Unroll and unfold the tent and lay it on the ground. If it’s windy,

stake down one front corner into wind.

• Lay the poles side by side and divide according to length. 2 long for

the tent, 1 long [ with gray section ] Hoop and 2 short for the fly.

• Assemble the shock corded poles as you work. Try to keep the pole

sections from snapping together, as this can damage the ends. Make

certain each plain end has been properly seated into its metal ferrule.

Slide the one tent pole through each sleeve. The poles should run

from corner to corner and cross at the rear of the tent body. See fig 1.

fig.2

fig.1

• Start at the rear of the tent and insert

the post end of the poles into the

web grommets. See fig.2.

• At the opposite end, with the pole in

one hand and the web in the other,

feed the pole up, bending it evenly along its length to create an arc.

Make sure the ferrules do not get caught on the sleeves. Place the

post end into this grommet to maintain tension. Repeat with the

other tent pole. See fig. 3.

fig.3

• Stand the tent up and insert the hoop over the tent poles and

through the front sleeve. Fit a post into the grommet on each

side web. See fig. 4.

Clip the fabric to the frame:

• Working your way around the

tent, attach all the clips to the

poles. See fig. 5.

Add the poles to the y:

• Once the tent is securely staked,

spread the rain fly out, top side

down. Locate the pockets on the

inside of the fly and insert the fly

poles. See fig. 7.

• Wrap the Velcro® strap around the

center of each pole to secure in place.

Stake down sequence:

• The tent is now freestanding. Place it in your desired location and stake

it down through the web loops. First, at the rear of the tent, stake down

the ‘V’. Move to the front and stake down the section between the

doors. Then go back to the rear and stake the corners. Lastly stake the

front corners. It works best to do this before you add the fly. See fig.6.

• We highly recommend that you attach the included guy lines and stake

them out.

Note: The guy lines take a unique path and twist through the second set

of rings. See fig 12 & 13.

Take down:

Pull up stakes and open doors. Remove the fly. Push poles out of the sleeves. Collapse all

poles and stow in the pole bag. Fold the tent/fly. Roll up both along with the pole bag

towards a door. Stow all in the main bag.

fig.10

fig.13

fig.11

fig.12

YOUR TENT IS READY!

Rev A 6.09

fig.4

fig.7

fig.5
