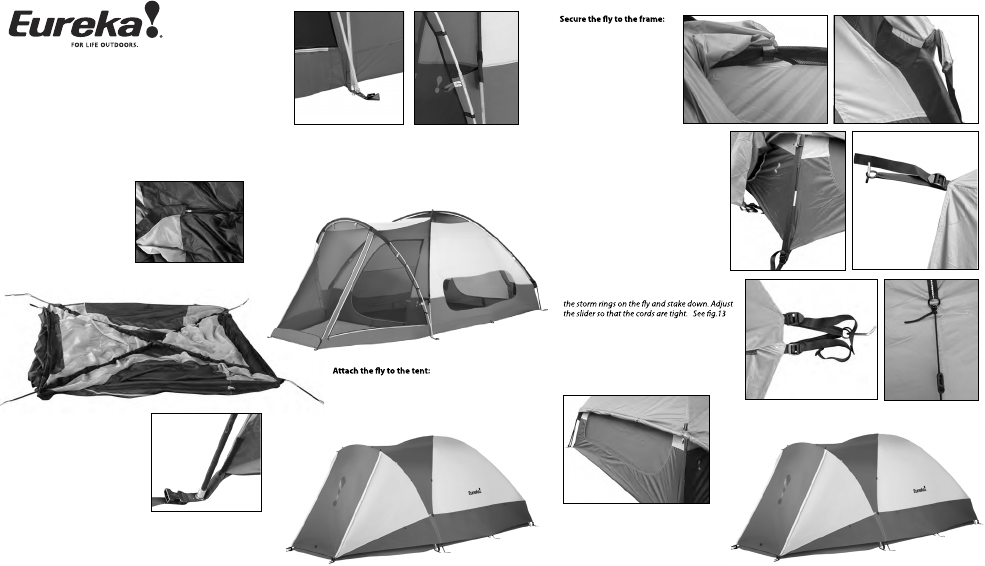

ASSEMBLY INSTRUCTIONS

FOR THE GRAND MANAN

TOUR TENT

Component List: 1 Tent, 2 Tent Poles, 1 Screen Hoop, 1 Carry

Bag, 1 Pole Bag, 1 Stake Bag w/ Stakes and Guys, 1 Rain Fly

• Once the tent is securely staked, spread the rain fly

out, right side up. Start at one end and drag the fly up

and over the top of the tent. It only fits one way. Align

the front door of the fly to the front entrance of the

screen room. See fig.7.

• Reach under the fly and wrap

the Velcro® straps through

the openings in the sleeves

and around the poles to

secure the fly to the tent

frame. See fig. 8.

• Also attach the wide Velcro®

straps to the patches on the

sleeves at each corner elbow.

See fig. 9

• Locate the long adjustable web/buckle

assemblies on the underside at each

corner of the fly. Attach these buckles to

their mates on the corner stake-out webs

and adjust to proper tension. See fig. 10.

• There are also, web/ring assemblies on the

bottom at each corner of the fly. Pull

these out and away from the tent and use

skewers to stake down. Adjust as

necessary. See fig.11.

• Grasp the web/rings on the door, pull

these out and away from the tent. Stake

down and adjust the tension. Repeat at

the rear of the tent with the vestibule. See

fig.12

NOTE:

In strong winds, tie extra cords ( included ) to

.

NOTE: This is a large family style tent and we recommend that you

have two people for setup.

Do not drop tent bag or pole bag on its

end. Do not bounce tent bag on its end to get the tent out. These

actions may cut the shock cord and/or damage the pole ends.

Rev B 4.09

Raise the tent:

• Unroll and unfold the tent and lay it on the ground. If it’s windy, stake

down one front corner into wind.

• Lay the poles side by side and divide according to length. 2 long [11

section] for the tent and 1 short [9 section] for the screen hoop.

• Assemble the shock corded

poles as you work. Try to

keep the pole sections from

snapping together, as this

can damage the ends. Make

certain each plain end has

been properly seated into its

metal ferrule. Slide one long

pole through each tent

sleeve. The poles run from corner to corner, cross at the center

through the sleeves. The gray pole fits to gray web. See fig 1 & 2

fig.4

fig.7

fig.10

fig.13

fig.11

fig.12

fig.14

fig.9fig.8

fig.5

fig.6

fig.2

fig.1

Stake it down:

• The tent is now freestanding. Place it in the desired location and use

the yellow stakes to stake it down through the corner web loops.

Stake diagonally opposit

e corners while applying tension to square

the tent and smooth any floor wrinkles.

Pull out the web loops from the screen room, use the skewers and

stake them down. It works best to do this before you add the fly.

See fig.6.

• Insert the post end of a pole into

the web grommet.

• At the opposite end, with the pole

in one hand and the web in the

other, feed the pole up, bending it

evenly along its length to create an

arc. Make sure the ferrules do not

get caught on the sleeves. Place the

post end into this grommet to

maintain tension. Repeat with the

other tent pole. See fig. 3.

• Assemble and slide the screen room hoop over the tent

poles and through the front sleeve. Fit the post into the

outside grommet on same front webs as the tent poles.

See fig. 4.

• Attach all the pole clips to the hoop. See fig. 5.

fig.3

Feature:

The Grand Manan provides exceptional air flow.

Detach the web rings from the stakes. Roll up

the fly sides for 4-way ventilation. Secure in

place with the attached loops and toggles.

See fig. 14.

Take down:

Pull up stakes and open doors. Remove the

fly. Push poles out of the sleeves. Collapse all

poles and stow in the pole bag. Fold the

tent/fly. Roll up both along with the pole bag

towards a door. Stow all in the main bag.

YOUR TENT IS READY!
