PROTECTION VOLUME.- It is the volume situated within the

horizontal planes previously stated for the prohibited volume

plus another two vertical ones 1,00 meters away from those

of the said volume.

No switches, power sockets or lighting equipment must be

installed within the PROHIBITED volume.

Do not install switches within the PROTECTION volume; this

does not apply, however, to safety power sockets.

If possible the heater must be installed outside the PROHIBITED

VOLUME so as to prevent water splashing against the unit.

Power must be supplied via a multi-polar switch, circuit breaker

or contactor. Adequate power rating fuses shall be made

available for unit protection purposes.

All electrical installations shall incorporate an earthing

connection. The plug used by the heater already has this

connection and only has to be inserted in a mains socket of

the same features.

Make sure the household or place of installation does have

an earth line. If not available, a differential switch is

recommendable.

The electric connection must be made with a power cable Type

H05VVF 3x1,5 (Serie eco-R/RN).

MAINTENANCE

The heater does not require a special maintenance procedure.

Clean by wiping with a soft cloth or damp sponge. Never use

abrasives nor detergents.

The customer is advised to contact the AFTER SALES

SERVICE to check the magnesium bar once the guarantee

has expired. Although this particular operation is not covered

by the guarantee, as it does not imply «unit servicing», it does

allow the wear rate of the bar to be monitored and to establish

how soon it should be changed. Moreover, indefinite heater

duration can be guaranteed.

Any overheating caused by thermostat failures is offset by the

safety limiting device cutting both stages off and leaving the

heater without power input.

If this happens, contact our After Sales Service.

WARNING.- Never remove the lead cover without previously

disconnecting the heater from the power supply.

THE MANUFACTURER reserves the right to modify the

characteristics and specifications of all products wilhout prior

notice.

OPERATION

Filling up. Open the shutoff cock as soon as the heater has

been installed. Open the hot water taps. Water appears as

soon as the unit fills up completely. Close the laps and check

the system for leaks. Do not connect the heater to the power

mains if uncertain as to whether it is foll or not.

Electric connection. Plug into the mains and press the main

power input switch. A light flashes when the heating element

is activated (on some models). The thermostat re-connects

the heating element after a certain amount of water has been

used.

Setting water temperatures. In the case of top-range models,

the external control knob allows water temperature adjustments

between 30°C (min. setting) and 70°C (max. setling).

E Position. (Energy saving) the water reaches a temperature

of approx. 55°C thus allowing the heater to operate economically.

Heat losses are minimal and calcareous deposits are practically

fully eliminated.

Heating element power setting switch. The deluxe and super

deluxe models incorporate double power rating features and

a switch for power setting changes:

Pos. II; ; MAX.: Total power

Pos. I; ; MIN.: Minimum power

It is advisable to have the heater plugged into the mains

permanently as the thermostat will only activate the unit when

it becomes necessary to maintain the selected temperature

settings.

How to empty the unit. The heater should be fully drained if

left unused for extended periods of time or if subject to freezing

hazards where installed. This can be done by means of the

safety valve (not safety valve eco). Always remember:

- Cut-off the power supply

- Shut-off the inqut cock

- Open the hot water tap.

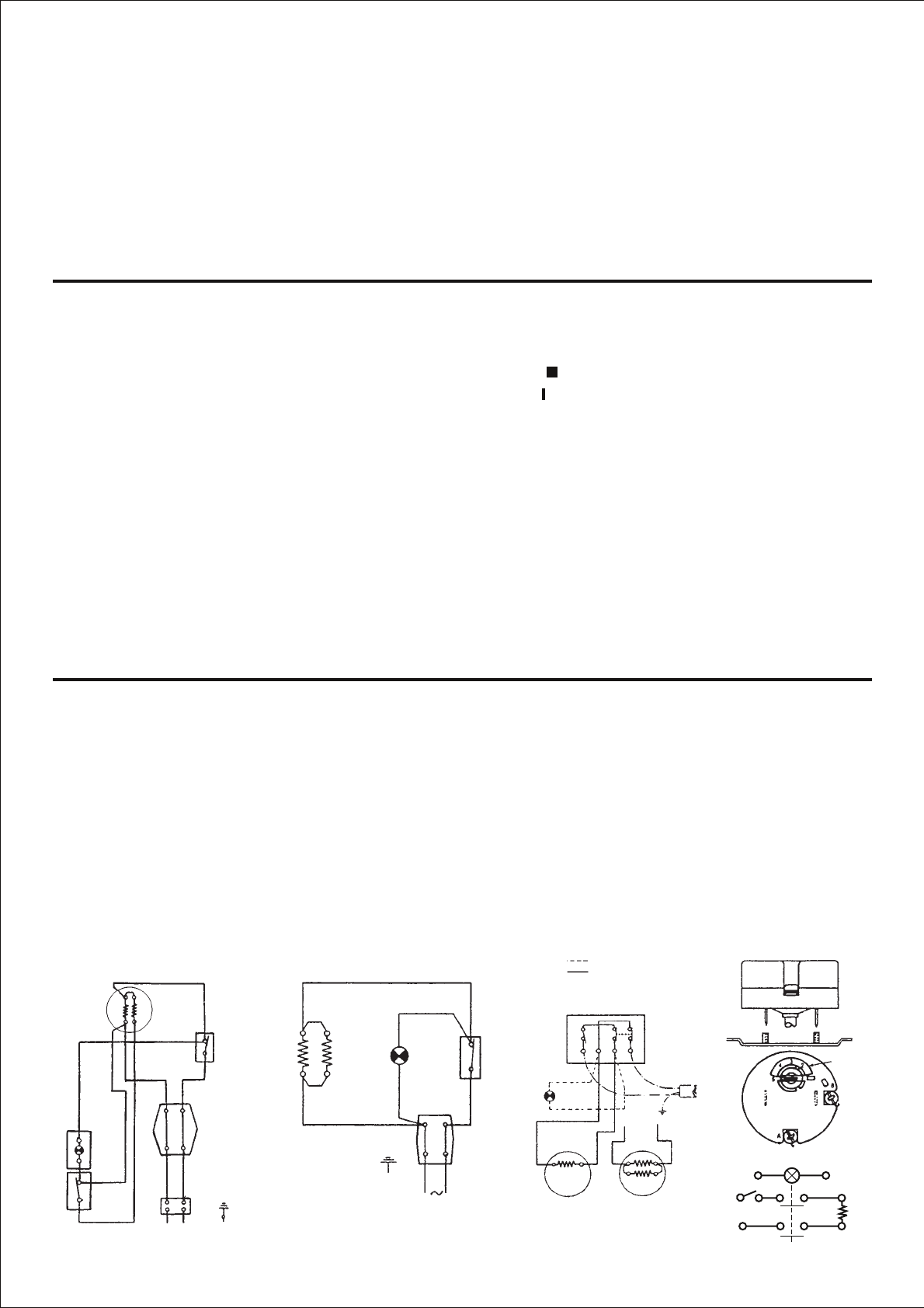

Two heating elements

Three heating elements

Heating

element

Thermostat

Therm

security

EWH-SL/SLN EWH-S/SN

Therm

security

Therm.

Heating

element

Thermostat

Heating element

EWH-R/RN EWH-eco R/RN

A

B
