Bruksanvisning Electrolux EWH-eco R Varmvattenberedare

Bruksanvisning

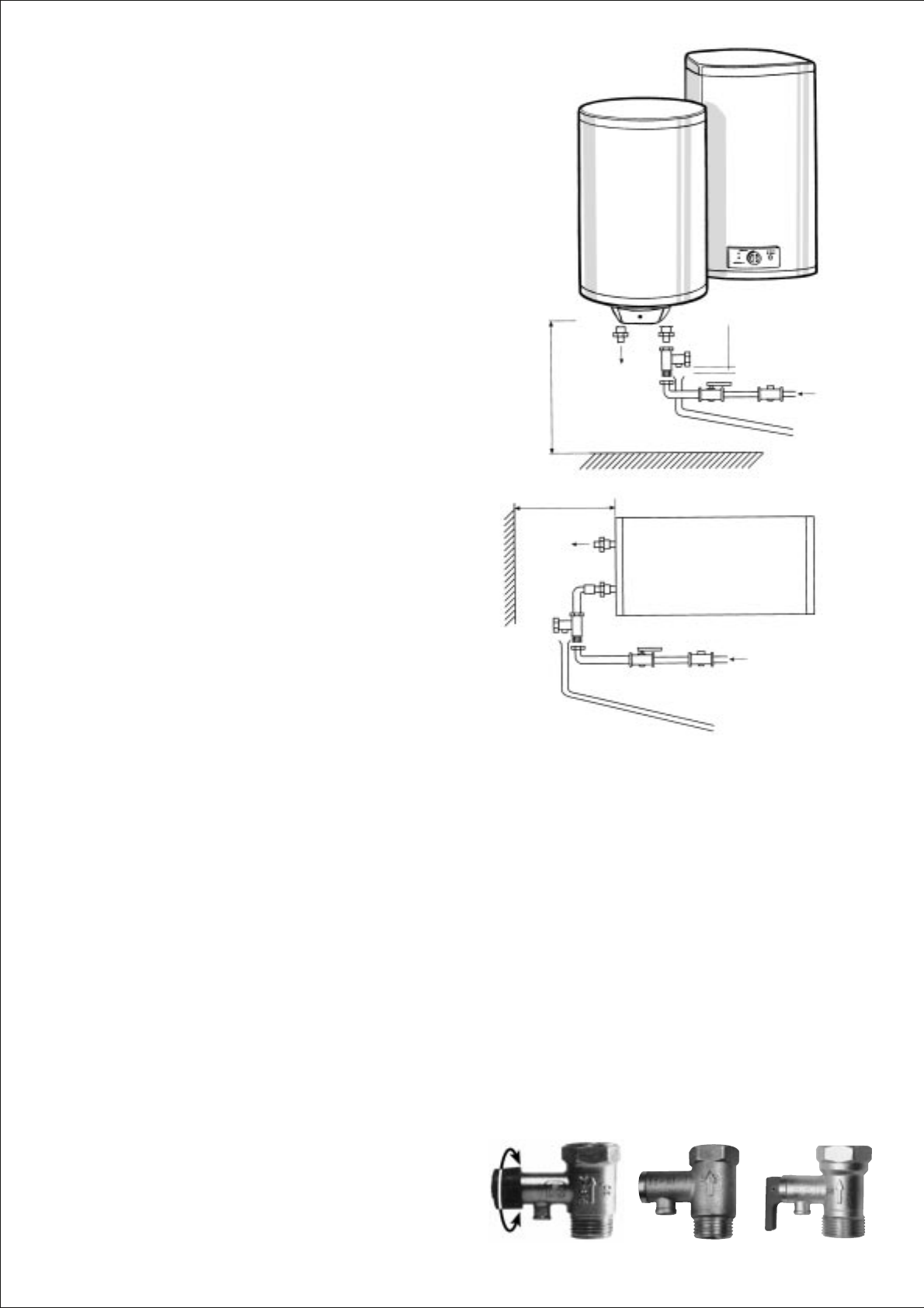

Hot water 6

1

Safety

valve

2

3

45

Cold water

Min. 20 mm air inlet

50 cm

Hot water

6

6

50 cm

Min. 20 mm air inlet

1

Safety valve

45

Cold water

3

2

1.Safety valve

2.Turning knob for cleaning and draining

3.Draining pipe for the safety valve

4.Stop valve

5.Reducing valve - necessary when pressure is more than 5 bar-

to be installed after the “meter”

6.Earthed plastic sleeves (supplied with the heater)

INSTALLATION

This electric unvented storage water heater includes the basic

installation elements which are found in the packaging, i.e.:

- Insulating bushing for pipes.

- Safety valve.

Installation and first operation of the storage heater and the

fittings have to be done by an expert which can take the

responsibility for properly done work and explains the handling

procedures.

For the connection the specific technical conditions of the

energy supplier as well as the valid standards and safety

regulations have to be considered.

WALL MOUNTING PROCEDURE

Use 4 adequately resistant and sturdy screws and rawl-

plugs capable of holding the weight of the filled heater.

LOCATION

The installation procedure is greatly facilitated by the possibility

to locate the unit horizontally (EWH-SL/SLN and EWH-R/RN)

or vertically in a frost-free (!) place anywhere the house.

It would be a good idea to place the unit as close as possible

to the outlet - short piping means little loss of temperature.

A minimum space of 50 cm below the outlet pipe is necessary

for servicing.

As shown in the drawing the input and output pipes must be

on the left side when the heater is installed horizontally.

Should the unit be close to a wall leave the recommended

minimum-space for maintenance and service.

Do not install the heater with its wall mounts against the floor

nor on a horizontal plane.

HYDRAULIC INSTALLATION

The heater must be connected to the water supply mains.

a) The safety valve - supplied with the heater- MUST be

installed on the cold water input (see right side)

- Before connecting the safety valve with the heater, the

connecting pipe must be rinsed carefully.

- The draining pipe and the safety valve must be left open

to the air and be installed in a continuous downward slope.

Water expands when heated. The units of the series R,

eco R and SL are supplied with a safety valve that lets the

expanding water flow back into the cold-water feed.

The units of the series RN and SLN have a safety valve

that prevents the expanding water (N=non return) from

flowing back into the cold-water feed. Here a suitable siphon

for the absorption of the expanding water is to install.

The drain of the safety valve must not be blocked.

To open the safety valve (not safety valve eco) to let the

water flow from the heater - via the outlet - turn the knob

clockwise or counterclockwise as you please.

The proper operating of the safety valve should be tested

periodically that way:

- turn the knob clockwise or counterclockwise up to the top

position

- the water should flow out of the passage

- turn the knob to its down position

The pressure rating is indicated on the knob.

b) If the water-supply pressure exceeds 5 bar, a type-approved

reducing valve must be installed.

ELECTRIC INSTALLATION

All storage water heaters of the EWH-series are of 220/230 V

single phase design. Before connecting make sure that the

mains supply and unit input features coincide.

The heaters installation procedure is totally straightforward

and only requires that Low Voltage Electronic Regulations are

met. Although well known by the installers we would like to

point out some of the basics:

“The following volumes and provisions shall be taken into

account for installations in bathrooms or toilets”.

PROHIBITED VOLUME.- It is the volume limited by the

tangential and vertical planes with respect to the outer edges

of bathtub, toilet pan or shower enclosure and by a plane

situated 2,25 m above the same or the floor, should the units

be embedded in the same.

Safety valve Safety valve ECO Safety valve
