10 | English

1 609 92A 35R | (6.6.16) Bosch Power Tools

Adjusting the Drilling Depth

The required drilling depth X can be set with the depth stop 3.

Loosen the wing bolt for the depth stop adjustment 6 and in-

sert the depth stop rod into the auxiliary handle 4.

Pull out the depth stop until the distance between the tip of

the drill bit and the tip of the depth stop corresponds with the

desired drilling depth X.

Retighten the wing bolt for the depth stop adjustment 6 again.

Changing the Tool (see figure A)

 Before any work on the machine itself (e. g. mainte-

nance, tool change, etc.) as well as during transport

and storage, remove the battery from the power tool.

There is danger of injury when unintentionally actuating

the On/Off switch.

Open the keyless chuck 2 by turning in rotation direction ,

until the tool can be inserted. Insert the tool.

Firmly tighten the collar of the keyless chuck 2 by hand in ro-

tation direction . This automatically locks the drill chuck.

Dust/Chip Extraction

 Dust from materials such as lead-containing coatings,

some wood types, minerals and metal can be harmful to

one’s health and cause allergic reactions, lead to res-

piratory infections and/or cancer. Materials containing

asbestos may only be worked by specialists.

– Provide for good ventilation of the working place.

– It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the

materials to be worked.

 Prevent dust accumulation at the workplace. Dust can

easily ignite.

Operation

Starting Operation

Inserting the battery

Note: Use of batteries not suitable for the machine can lead to

malfunctions of or cause damage to the power tool.

Set the rotational direction switch 17 to the centre position in

order to avoid unintentional starting. Insert the charged bat-

tery 12 into the handle so that it can be felt to engage and fac-

es flush against the handle.

Reversing the rotational direction (see figure B)

The rotational direction switch 17 is used to reverse the rota-

tional direction of the machine. However, this is not possible

with the On/Off switch 18 actuated.

Rotate clockwise: Move the rotational direction switch

17 on both sides up to the stop into position .

Rotate anticlockwise: Move the rotational direction

switch 17 on both sides up to the stop into position .

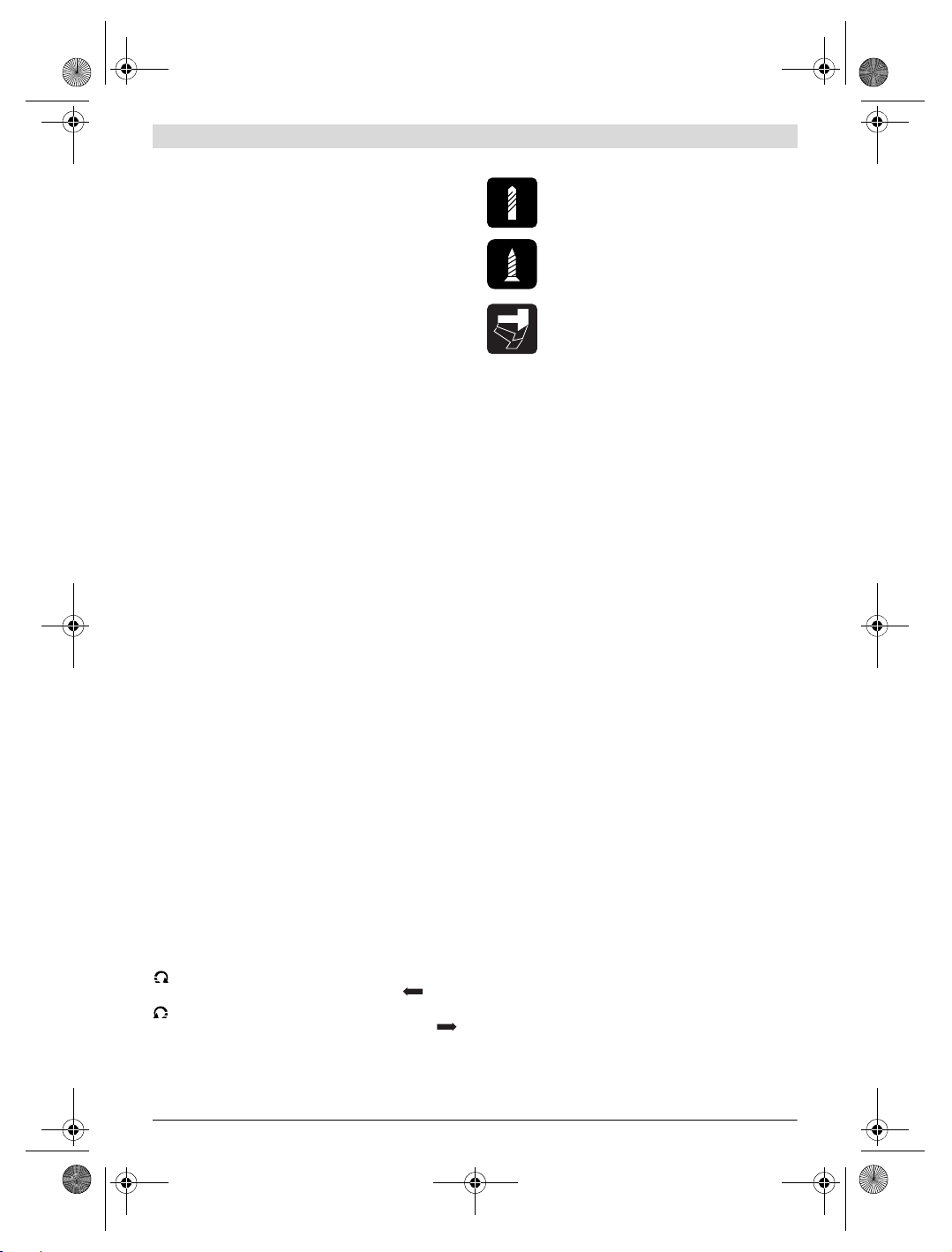

Setting the operating mode

Drilling

Set the operating mode selector switch 8 to the

“drilling” symbol.

Screwdriving

Set the operating mode selector switch 8 to the

“screwdriving” symbol.

Impact drilling

(GSB 14,4 VE-EC, GSB 18 VE-EC)

Set the operating mode selector switch 8 to the

“impact drilling” symbol.

Switching On and Off

To start the machine, press the On/Off switch 18 and keep it

pressed.

The LED 14 lights up when the On/Off switch 18 is halfway or

fully pressed, and enables illumination of the screwing loca-

tion in unfavourable light conditions.

To save energy, only switch the power tool on when using it.

Adjusting the Speed

The speed of the switched-on power tool can be variably ad-

justed, depending on how far the On/Off switch 18 is

pressed.

Light pressure on the On/Off switch 18 results in a low rota-

tional speed. Further pressure on the switch results in an in-

crease in speed.

Setting the torque (Applies to screwdriving mode)

With the torque preselection ring 7, the required torque can

be preselected in 25 steps. The inserted tool is stopped as

soon as the set torque is reached.

Gear selection, mechanical

 Actuate the gear selector 9 only when the machine is at

a standstill.

1st gear:

Low speed range; for working with large drilling diameters.

2nd gear:

High speed range; for drilling with small drilling diameter.

Temperature Dependent Overload Protection

In normal conditions of use, the power tool cannot be over-

loaded. If the power tool is overloaded or not kept within the

permitted battery temperature range, the power output is re-

duced or the power tool is switched off. The power tool will

not run at full power output again until the permitted battery

temperature has been reached.

Activation of the temperature-controlled overload protector

is indicated by the LED 15 on the power tool lighting up red.

The LED 15 will go out once the temperature of the tool's bat-

tery is back within the permissible range.

Protection Against Deep Discharging

The lithium-ion battery is protected against deep discharging

by the “Electronic Cell Protection (ECP)”. When the battery is

empty, the machine is switched off by means of a protective

circuit: The inserted tool no longer rotates.

OBJ_BUCH-2699-002.book Page 10 Monday, June 6, 2016 2:08 PM
