Button Commands and Important Tips

Not only does the Axiom HR400 have a variety of functions,

it’s also very easy to use. You only need remember a few

basic button commands in order to set and reset values, and

to toggle between the main screens (please refer to the

HR400 logic diagram on pages 10–11 for the complete range

of screens).

To go from any of the five main screens to another press the

Mode button. The Mode button will cycle the HR400 from

Time of Day, to Daily Alarm, to Countdown Timer, to Stop-

watch, to Time in Zone, and back to Time of Day.

To enter Set Up mode: in any main screen (except Time in

Zone), press and release the Select button. To continue

through each of the set up screens, continue to press and

release the Select button. Note: if the Countdown Timer is

activated, you will not be able to access its set-up screen.

Further, to change a number in a set up screen, press the

Adjust button.

To back up to a previous screen from any set-up screen:

press and release the Light button. The back-light will only

illuminate in a main screen and will not illuminate in a set-

up screen.

To move from a set-up screen to the corresponding main

screen: press and hold the Light button.

The following set-up instructions will take you through the

entire set-up procedure from beginning to end. If you’d like

to program a single function, go to the main screen for that

function and press and release the Select button. Once in

the set-up screen for the specific function, use the Adjust

button to modify the value. To return to the main screen,

press and hold the Light button.

3

Functions and Features

1. Current heart rate

2. Current heart rate expressed as a percentage of maximum

heart rate

3. Heart rate upper limit alarm (visible and audible)

4. Heart rate lower limit alarm (visible and audible)

5. Time spent in, above, and below the target zone

6. Time spent in, above, and below the target zone,

expressed as a percentage of total workout time

7. Average heart rate in the target zone

8. Average heart rate for entire workout

9. Time of day (12 or 24 hr.)

10. Daily alarm

11. Month and day calendar

12. Stopwatch

13. Countdown timer with auto repeat option

14. Automatic heart rate recovery timing

15. Electroluminescent back-light

Special features

1. Automatically set maximum heart rate by inputting your

age, or, program a specific value

2. All limits programmable in single beat increments

3. Each information screen can be viewed at any time during

your workout

4. Easy-to-remember button commands make it easy to pro-

gram and view

5. Transmitter battery is easily replaceable by the user

2

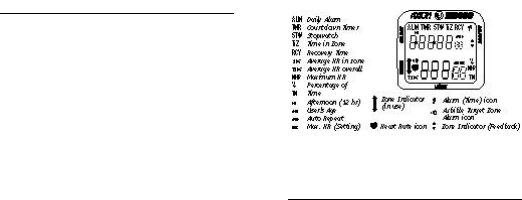

Figure 1. HR400 Display, all possible LCD segments on. Buttons

are as marked on the display surround.

HRM400 3/30/99 10:12 AM Page 2
