Maintaining your Boiler

6720813172 (2015/04) 5

6 Maintaining your Boiler

Your new gas-fired boiler represents a long term investment in a reliable,

high quality product.

In order to realise its maximum working life, and to ensure it continues to

operate at peak efficiency and performance, it is essential that your

boiler receives regular servicing and maintenance checks from a

competent person beyond the initial 2 year guarantee period.

If your gas-fired boiler should fail to operate correctly or requires

servicing please contact Worcester, Bosch Group Appointments Team

(see rear cover for details).

7 Explanation of the control unit

7.1 General

The boiler is fitted with a control unit, the BC10 basic controller

( fig. 1). This controller can be used to control the heating system.

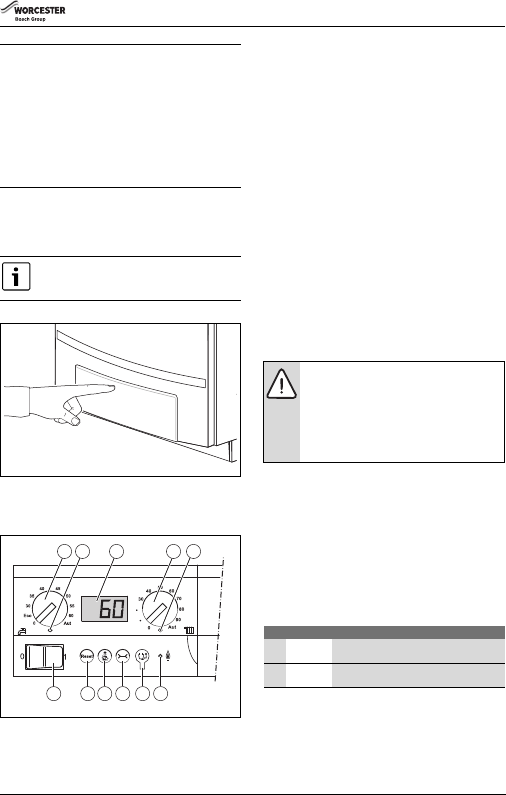

▶ Push on the control panel to open it ( fig. 3).

Fig. 3 Opening the control panel

The BC10 basic controller is located on the left, behind the control

panel.

The BC10 basic controller consists of the following components:

Fig. 4 BC10 basic controller

[1] Mains switch (boiler On/Off)

[2]

c “Reset” button (fault reset button)

[3]

d Chimney sweep button (for manual operation)

[4]

e Service button

[5] Service Connector

[6]

G “Burner LED” (On/Off)

[7]

R “Heat demand” LED

[8] Maximum CH (boiler) flow temperature dial

[9] Display (for status indication)

[10]

S “DHW mode” LED

[11] DHW temperature dial

Mains switch

The mains switch ( fig. 4, item 1) is used to switch the boiler on and

off.

“Reset” button

If a fault has occurred you may have to restart the boiler by pressing the

“Reset” button ( fig. 4, item 2).

This is only required in the event of a “locking” fault. “Blocking” faults are

reset automatically as soon as their cause has been removed.

The display shows “rE”during the reset operation.

“Chimney sweep” button

The “Chimney sweep” button ( fig. 4, item 3) is used to put the boiler

into manual operation mode, e.g. if the heating system control (e.g.

room controller) is defective.

The heating system can be operated in manual mode, independent of a

room controller on a temporary basis. The control system must comply

with Part L1 + L2.

In this case, the CH (boiler) flow temperature setting of the right-hand

dial is used as the temperature for boiler operation. See table 5 “Manual

Operation menu”.

“Service” button

The “Service” button ( fig. 4, item 4) is used to display the current

CH (boiler) flow temperature, the current working pressure etc.

Also see section 8.1.1, page 6.

Service Connector

A Worcester service engineer can connect a Service Tool here ( fig. 4,

item 5) for diagnostic purposes when servicing.

“Burner” (On/Off) LED

The “Burner” (On/Off) LED ( fig. 4, item 6) lights up when the burner

of the boiler is switched on and it is extinguished when the burner is

switched off.

The “Burner” (On/Off) LED indicates the burner status.

“Heat demand” LED

The “Heat demand”LED ( fig. 4, item 7) lights up when the control

system has made a heat demand and it is extinguished when this heat

demand is no longer required.

If your heating system consists of several boilers

(cascade system), you have to carry out the settings on

the control units of all individual boilers.

6 720 648 727-010.1TD

6 720 648 727-001.1TD

11 10 9 8 7

65432

1

DANGER: Damage to the installation due to freezing

while manual operation is switched on.

After a power failure or after switching off the supply

voltage, the heating system may freeze since manual

operation is no longer active.

▶ Re-activate manual operation after switching on the

heating system, so that the system is permanently in

operation (especially if there is a risk of freezing).

LED Status Explanation

On Burner

operational

Boiler water is being heated.

Off Burner off The CH (boiler) flow temperature has reached the

set temperature or there is no heat demanded.

Table 3 Meanings of “Burner” (On/Off) LED indications
