Woods

®

Vacation Villa 2 Room Tent with Awning

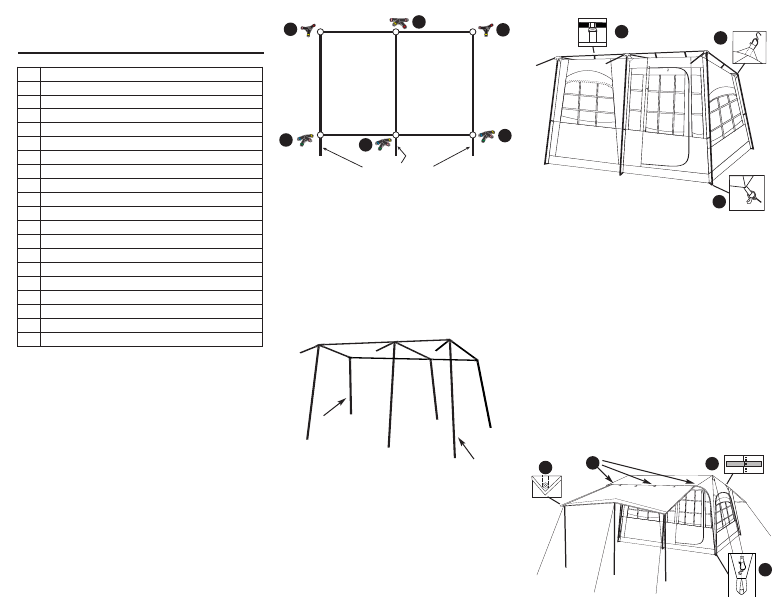

PARTS LIST

This tent requires at least three people to assemble.

SET-UP

1. Select a smooth, level site free of debris.

2. Lay out all the poles and sort them into groups

according to the colored stickers affixed to the poles.

3. Create the Roof Structure

Gather the two long pink poles with the attached hubs

and lay them parallel to each other. (NOTE: The one

with the attached four way hub is the pole for the back

of the tent.)

Attach the four way front corner hubs (A)

to ends of the front pink stickered pole. Attach the

three w

ay back corner hubs to the ends of the back

pink stickered pole. Put the three yellow stickered

poles into the corresponding stickered yellow hub

openings. Put the blue eave poles into the front hubs

openings

.

At this point your pole structure should look

like Figure 1.

4. Insert the Leg Poles

Gather together the remaining green and red stickered

poles. The green poles are for the front of the tent and

the red ones are for the back of the tent. Insert them

into the remaining hub openings. At this point your

pole structure should look like Figure 2. (NOTE: we

suggest that two people insert the poles on the diago-

nal of the tent – one red and one green – to steady the

tent frame structure – and the remaining person will

install the other four poles)

5. Insert the Tent Body

The tent can now be attached to the pole structure.

Clip the tent S-Hooks (E) into the six holes in the roof

hubs. Then insert the pin from pin-ring assemblies at

base of tent into ends of poles (F). Then attach the

quick clips to the tent frame (G). As the frame is a free-

standing str

ucture, the tent may be added or removed

as needed.

Qty Description

3 Roof Pole 3 sections 205cm (yellow)

2 Roof Pole with attached hub - 5 sections 335cm (pink)

3 Rear Leg Pole 3 sections 153cm (red)

3 Front Leg Pole 4 sections 224cm (green)

3 Front Eave Pole 1 sections 69cm (blue)

2 Canopy Pole (for end) 3 sections 170cm (black)

1 Canopy Pole (for center) 3 sections 190cm (black)

2 Front Corner 4-way Hub (A)

2 Back Corner 4-way Hub (B)

1 Front Center 5-way Hub (attached to pink pole for front) (C)

1 Rear Center 4-way Hub (attached to pink pole for rear) (D)

3 Bay Window Pre bent Fiberglass pole 3 sections

1 Rainfly/awning

1 Divider Curtain

10 Guy ropes

21 Stakes

1 Pole Storage Bag

1 Stake Storage Bag

1 Tent Storage Bag

6. Install the Bay Windows

Locate the three Pre-bent Fiberglass poles. Slide the

poles through the pole sleeves on the edge of the win-

dow awning. Extend the window awning so it is taut

and then close the nylon fastener flaps to ensure that

the pole remains in position.

7. Stake the Tent Body

To stake out tent drive stakes through webbing loops

attached to pin-ring assemblies (F) at the base of the

tent.

8. Install the rainfly/awning

Lay the fabric of the rainfly over the tent. The edge

with the three grommets (H) should be at the front of

the tent. Attach the five hooks (I) of the fly extensions

that cover the corner and back poles to the holes in

the leg poles. Attach the three hooks in the front into

the ends of the blue poles (J). Wrap the all the nylon

fasteners (K) on the underside of the rainfly around the

poles to further secure the rainfly.

Yellow Sticker Pole

Yellow Sticker Pole

Yellow Sticker Pole

Front of Tent

Blue Sticker Poles

Pink Sticker Pole

Pink Sticker Pole

FIG. 1

Red Rear Leg Pole

Green Front Leg Pole

FIG. 2

FIG. 3

E

A

F

B

G

D

A

B

C

J

K

H

I
