You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

• Visiting our website - docs.whirlpool.eu

• Using QR Code

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When

contacting our After-sales Service, please state the codes provided on your product’s identi cation plate.

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance,

please register your product on

www.whirlpool.eu/register

EN

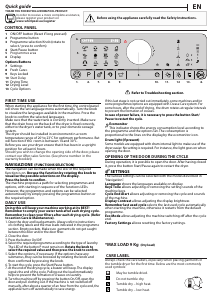

Quick guide

Before using the appliance carefully read the Safety Instructions.

xxxxxxxxxxxx

xxxx

If this last stage is not carried out immediately, some machines and/or

some programmes/options are equipped with Crease Care system. For

some hours, after the end of drying, the drum rotates at regular intervals

to prevent the formation of creases.

In case of power failure, it is necessary to press the button Start/

Pause to restart the cycle.

Ecomonitor

This indicator shows the energy consumption level according to

the programme and the options set. The consumption is

proportional to the lines on the display,by the ecomonitor icon.

Drum light (If present)

Some models are equipped with drum internal light to make use of the

dryer easier. No setting is required. For instance, the light goes on when

opening the door.

OPENING OF THE DOOR DURING THE CYCLE

During operation, it is possible to open the door. After having closed

it, press the button Start/Pause again to restart the dryer.

SETTINGS

The various settings can be selected with the modes described in

"Navigation".

Language shows the languages available on display.

Keys Tone allows adjusting or removing the setting sounds of the

machine keys.

Cycle End Alert allows adjusting or removing the cycle end sounds

of the machine.

Display Contrast allows adjusting the display brightness

Remember last used cycle selects the last used cycle automatically

when starting the machine, otherwise it restarts from the default

programme.

Eco Mode allows adjusting the machine switching o after the cycle

end.

Factory Settings allows resetting the factory settings.

FIRST TIME USE

When starting the appliance for the rst time, the control panel

will show the set language menu automatically. Turn the knob

to visualize the languages available in the machine. Press the

knob to conrm the selected languages.

Make sure that the water tank is correctly inserted. Make sure

that the drain hose on the back of the dryer is xed correctly,

either to the dryer’s water tank, or to your domestic sewage

system.

The dryer should be installed in environment in a room

temperature range of 20°to 23°C for optimum performance. But

will function if the room is between 14 and 30°C.

Before you use your dryer ensure that it has been in a upright

position for at least 6 hours.

Should you wish to change the opening side of the door, please

contact our After-sales Service. (See phone number in the

warranty booklet).

NAVIGAZIONE FUNCTIONS SELECTION

The navigation can be made when the LED of the required

function is on. Browse the function by rotating the knob to

visualise the possible selections on the display.

Press the knob to conrm.

The machine proposes a path for selecting programmes and

options, with starting in sequence of the functions LEDs.

However, the programmes and options can be selected

autonomously by simply pressing the programmes button or

the required option.

DAILY USE

Doing this will keep your machine working at its BEST!

Remember to empty your water tank after each drying cycle.

Remember to clean your lters after each drying cycle. (Refer

to section Care & Maintanence).

1. Open the door and load garments. Always refer to instructions

on clothing labels and the max loads indicated in the programme

section. Empty pockets. Make sure garments do not get caught

between the door and/or the door lter.

2. Close the door.

3. Press the button On/O.

4. Select the required programme according to the type of laundry.

The LED of the button P must remain on. Rotate the knob to

select the required value and then press the knob to conrm.

5. Select the options, if necessary. If the options have any

submenus, they can be browsed by rotating the knob and

then conrmed by pressing the knob.

6. To start the cycle, press the Start/Pause button.

7. At the end of the drying cycle, a buzzer will beep. The display

signals the end of the cycle. Pulling out the load immediately

helps to prevent the formation of creases on laundry.

8. Turn the machine o by pressing the button On/O, open the

door and pull clothing out. If the machine is not switched o

manually, after about a quarter of an hour from the cycle end, the

appliance turns o automatically to save energy.

CARE LABEL

Always check the care labels, especially when placing garments in

the tumble dryer for the  rst time. Below are the most commonly

used symbols:

May be tumble dried.

Do not tumble dry.

Tumble dry – high heat.

Tumble dry – low heat.

*MAX LOAD 9 Kg (Dry load)

CONTROL PANEL

Refer to Troubleshooting section.

COTTON 2:20

1. 10.2. 11.8. 13.7. 129. 4.

5.

1 ON/OFF button (Reset if long pressed)

2 Programme button

3 Programme selection Knob (rotate to

select / press to conrm)

4 Start/Pause button

5 Programmes area

6 Display

Options Buttons

7 Settings

8 Fresh Care+

9 Keys Locked

10 Start Delay

11 Drying Time

12 Drying Level

13 Cycle Options

6.

3.
