CHANDELIER MOUNTING AND WIRING INSTRUCTIONS
NOTE: Underwriters Laboratories (UL) does not require all fixtures to have ground wires. These fixtures
meet all UL specifications.
1.
Turn off power at circuit box to avoid possible electric shock.
2. Thread mounting screws (A) into the cross bar (B).
3. Secure cross bar (B) to outlet box (C) with outlet box screws (D)
(if applicable)
(see fig. 1).
4. Affix the loop 1 (I) to the canopy (F) by hex nut (K) and star washer (J).
5. Thread stem (L) onto fixture.
6. Thread fixture cap (E) and loop 2 (I) onto stem (L), (carefully twist fixture cap (E) and loop 2 (I) to
stem (L), do not twist or kink wires)
7.
Open one link on bottom end of chain (H). Attach to fixture loop 2 (I). Securely close link on chain (H).
8. Lace wires up through every other link on chain (H) then through canopy loop 1 (I), canopy (F) and
nipple 1 (G).
9. Open one link on top end of chain (H). Attach to canopy loop 1 (I) and canopy (F). Securely close link
on chain (H).
10. Identify color coding of fixture wires (see fig. 3).
11. Connect the smooth wire with marking printed or molded from the fixture with the black wire from
outlet box (C)
by wire connector (N), and wrap the wire connector (N) with electrical tape for a
more secure connection.
12. Connect the ribbed wire from the fixture with the white wire from the outlet box (C)
by wire
connector (N), and wrap the wire connector (N) with electrical tape for a more secure connection.
13. Partially thread green grounding screw (O) into side hole (P) on cross bar (B).
14.
Wrap grounding wire from fixture around green grounding screw (O) leaving enough excess
wire, then connect the excess grounding wire from the fixture with the grounding wire from outlet
box (C) by wire connector (N) (if applicable), then wrap the wire connector (N) with electrical tape
for a more secure connection.
15. Tighten green grounding screw (O). Do not over tighten.
16. Tuck wires inside outlet box (C).
17. Raise canopy (F) to ceiling over mounting screws (A).
18. Secure into place with cap nuts (Q).
SEMI-FLUSH MOUNTING AND WIRING INSTRUCTIONS
NOTE: Underwriters Laboratories (UL) does not require all fixtures to have ground wires. These fixtures
meet all UL specifications.
1.
Turn off power at circuit box to avoid possible electric shock.
2. Thread mounting screws (A) into the cross bar (B).
3. Secure cross bar (B) to outlet box (C) with outlet box screws (D)
(if applicable)
(see fig. 2).
4. Thread stem (L) onto fixture.
5. Remove the loop 2 (I) from fixture cap (E).
6. Affix the canopy (F) to the fixture cap (E) by hex nut (K) and star washer (J).
7. Thread fixture cap (E) and canopy (F) onto stem (L), (carefully twist fixture cap and canopy to stem, do
not twist or kink wires)
8. Identify color coding of fixture wires (see fig. 3).
9. Connect the smooth wire with marking printed or molded from the fixture with the black wire from
outlet box (C)
by wire connector (N), and wrap the wire connector (N) with electrical tape for a
more secure connection.
10. Connect the ribbed wire from the fixture with the white wire from the outlet box (C)
by wire
connector (N), and wrap the wire connector (N) with electrical tape for a more secure connection.
11. Partially thread green grounding screw (O) into side hole (P) on cross bar (B).
12.
Wrap grounding wire from fixture around green grounding screw (O) leaving enough excess
wire, then connect the excess grounding wire from the fixture with the grounding wire from outlet
box (C) by wire connector (N) (if applicable), then wrap the wire connector (N) with electrical tape
for a more secure connection.
13. Tighten green grounding screw (O). Do not over tighten.
14. Tuck wires inside outlet box (C).
15. Raise canopy (F) to ceiling over mounting screws (A).
16. Secure into place with cap nuts (Q).
FIXTURE ASSEMBLY INSTRUCTIONS
Warning: This fixture is for indoor use only.
1. Install lamp(s). Do not exceed recommended wattage.
2. Turn power back on at circuit box.
FIXTURE ASSEMBLY INSTRUCTIONS
Warning: This fixture is for indoor use only.
1. Install lamp(s). Do not exceed recommended wattage.
2. Turn power back on at circuit box.
Westinghouse Lighting, Philadelphia, PA 19154-1029, U.S.A. www.westinghouselighting.com
, WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF are trademarks of Westinghouse Electric Corporation.
Used under license by Westinghouse Lighting. All rights reserved. Made in China
WARNING
Turn off electricity to the mounting site before beginning installation.
Mounting instructions must be followed exactly as shown for the fixture to be safely
supported.
CLEANING AND CARE
To clean, wipe fixture with soft cloth. Clean glass with mild soap. Spray from chemical cleaners can
discolor the finish of fixture. Do not use scouring pads, powders, steel wool or abrasive paper to
clean this fixture.
NOTE FOR FIXTURES THAT ARE SOLID BRASS:
Your hand-crafted, solid brass lighting fixture has been coated with a durable, baked-on acrylic
lacquer which gives maximum protection against the weather. However, in time the brightness of
the brass will tarnish, giving way to an authentic old-world brass finish. To keep your solid brass
fixture looking new for years to come, regularly apply a good quality, non-abrasive car wax to all
metal surfaces, giving the fixture an extra protective covering.
ORDERING PARTS
Keep this manual for future reference, and in case replacement parts are needed. Available parts can
be ordered from place of purchase. Use exact wording from diagrams when ordering parts.
FIGURE 2.
FIXTURE
WIRES:
Smooth
HOUSE
WIRES:
Black
(Hot)
HOUSE
WIRES:
White
(Neutral)
HOUSE
WIRES:
Bare
Copper
(Ground)
FIXTURE
WIRES:
Bare
Copper
(Ground)
FIXTURE
WIRES:
Ribbed
W-481
062816
FIGURE 3.
*NOT SUPPLIED
Line art shown may not exactly match the
fixture enclosed. However, the installation
instructions do apply to this fixture.

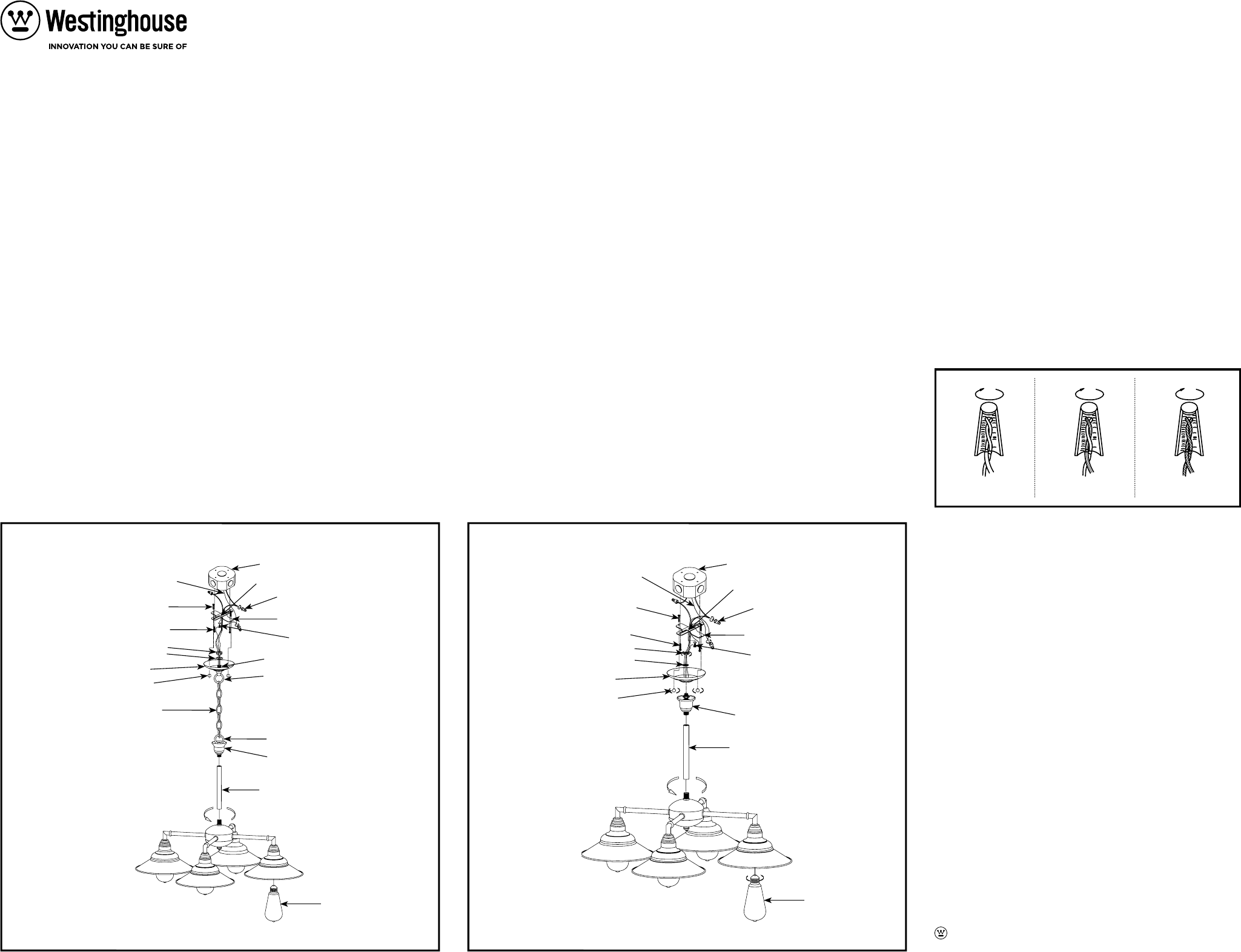

FIGURE 1.
For Chandelier Mounting Option
GROUND
WIRE
*LAMP
WIRE
CONNECTORS (N)
SIDE HOLE (P)
STAR WASHER (J)
HEX NUT (K)
GREEN
GROUNDING
SCREW (O)
LOOP 1 (I)
NIPPLE 1 (G)
LOOP 2 (I)
FIXTURE CAP (E)
STEM (L)
CAP NUTS (Q)
CANOPY (F)
CHAIN (H)
CROSS
BAR (B)
MOUNTING
SCREWS (A)
*OUTLET BOX
SCREWS (D)
*OUTLET
BOX (C)
FIXTURE CAP (E)
*NOT SUPPLIED
Line art shown may not exactly match the
fixture enclosed. However, the installation
instructions do apply to this fixture.
FIGURE 2.
For Semi-flush Mounting Option
GROUND
WIRE
*LAMP
WIRE
CONNECTORS (N)
SIDE HOLE (P)
STAR WASHER (X)
HEX NUT (K)
GREEN
GROUNDING
SCREW (O)
STEM (L)
CAP NUTS (Q)
CANOPY (F)
CROSS
BAR (B)
MOUNTING
SCREWS (A)
*OUTLET BOX
SCREWS (D)
*OUTLET
BOX (C)
WARRANTY INFORMATION
This Westinghouse Lighting Fixture is warranted against defects in material and workmanship for a
period of Five Years from purchase date. This warranty is in lieu of all other warranties expressed or
implied.
This warranty does not cover acts of nature such as lightning damage, or corrosion and discoloration
of components, nor does it cover damages caused through abuse, improper installation, surges in
electric current, or acts of third parties.
This warranty does not cover costs of removing and re-installing the lighting fixture.
If this product fails for any reason covered by this warranty, contact us toll free at 1-888-417-6222.
ASSEMBLY INSTRUCTIONS FOR INDOOR LIGHTING FIXTURE
Congratulations on your Westinghouse purchase. This fixture has been designed to give you many
years of beauty and service. For questions and comments, please visit www.westinghouselighting.
com/contact-us.
NOTE: Carefully unpack fixture and parts. Make sure all parts are included before discarding any
packing materials (see figure 1).
WARNING:
ELECTRICAL SHOCK CAN RESULT IN SERIOUS INJURY.
Read and follow instructions exactly as shown. If instructions are unclear, do not proceed.
Contact a qualified electrician. Read all instructions before beginning. Proper wiring is
essential for safe operation of this fixture. When cutting or drilling into walls or ceilings, do not
damage electrical wiring, gas lines, or water lines. If any of the fixture or wiring components
are damaged, do not install fixture. Return to place of purchase.
For fixtures provided with 75° C or 90° C supply wire warning only. (These warnings are
provided on the U.L. label and on the fixture carton.) Risk of fire. Most dwellings built before
1985 have supply wires rated 60° C. Consult a qualified electrician before installing.
Owner’s Manual
Indoor Lighting Fixture
Installation Instructions
