3

PLANNING

ELECTRICAL SPECIFICATIONS

Model VDVI600 - Internal Flex:

120 VAC • 60 Hz • 3.0 A

Models VDVE900, VDVE1200 - Exterior

120 VAC • 60 Hz • 6.0 A (max.)

TAKE MEASUREMENTS

DO NOT INSTALL WITH COOKING PRODUCTS THAT HAVE A

GRIDDLE.

Due to its exible design, this downdraft system can be used to

exhaust airborne contaminants when cooking with a variety of gas or

electric cooking appliances - including cooktops, rangetops, slide-in

ranges and free-standing ranges.

It can be mounted in island, peninsula, or conventional wall location. The

blower (purchase separately) and electrical panel can be mounted to the

downdraft unit, inside the cabinet, or in a convenient remote location.

This unit can be easily installed following these basic steps:

• Cut out the countertop opening.

• Mount the unit in the cabinet.

• Install the blower and electrical panel.

• Connect the ductwork and electrical.

• Mount the trim/door.

• Install the cooking appliance.

Note: the high level of air ow of this appliance may effect the gas

ame on some types of gas cooktops. This is NORMAL and will cause

no harm, but can be corrected by lowering the speed of the blower.

PLAN THE DUCTWORK

1. Refer to the cooktop installation instructions for dimensions of

cooktop, countertop cut-out, and cabinet requirements. However,

it is recommended that oversized cabinets be used for easier

installation.

2. Cooktop depth can vary greatly from one to another. This may

cause the t of these two appliances to be rather tight.

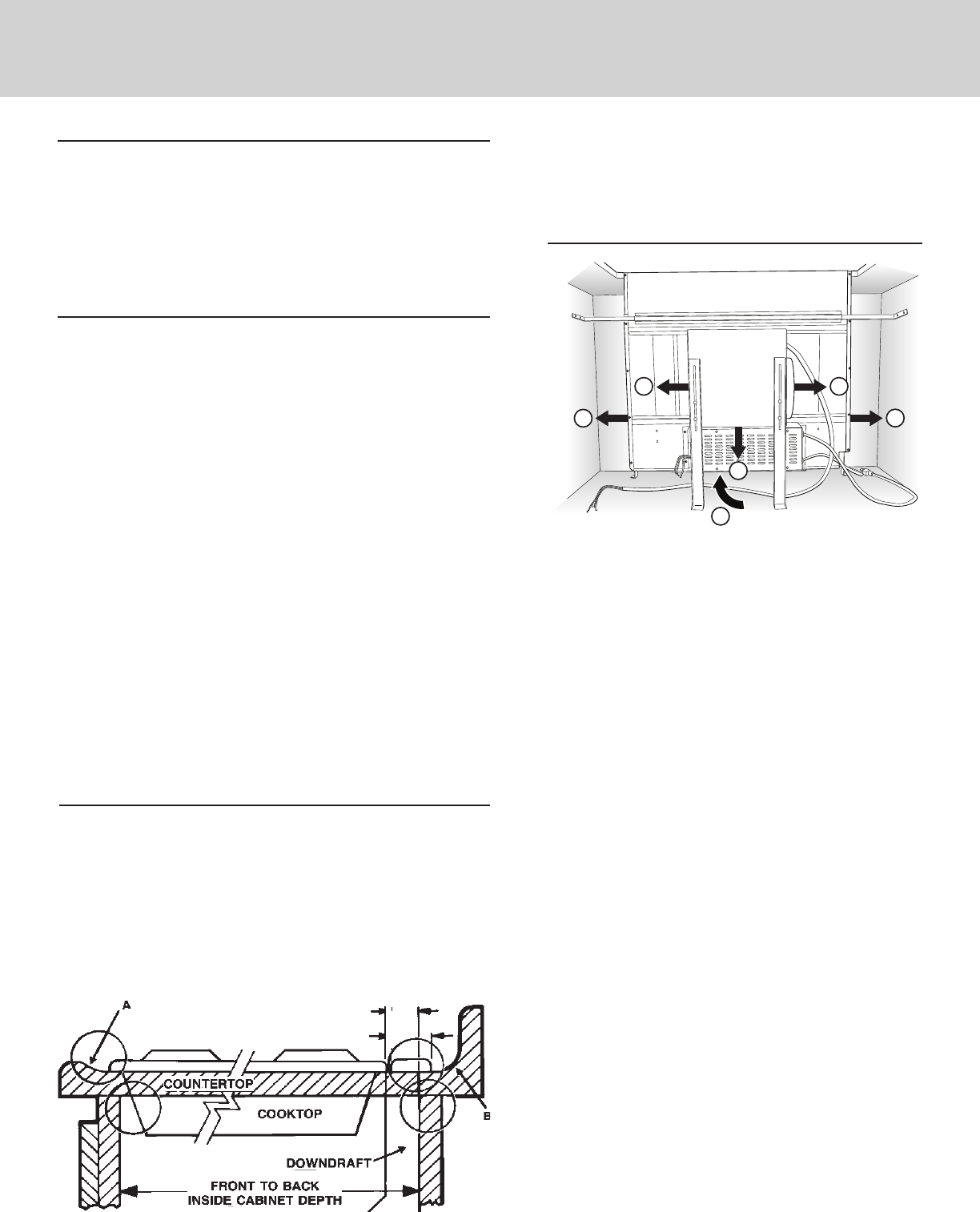

Pay special attention to the areas of potential interference highlighted

below. A countertop with (A) a raised lip and/or (B) a backsplash may not

allow enough at countertop for a proper installation. Note that 2-3/4" of

at countertop is required behind cooktop and that 2-1/2" is necessary

between the back edge of the cooktop and the inside of cabinet back.

A

B

C

D

E

F

HOUSING

1. The downdraft blower system is designed for use with

8" round ductwork using a ex blower or 10" Round

ductwork using a remote blower. (Purchase blowers

separately.) Six (6) different discharge connections are

available - with side-to-side adjustment for accurate

alignment of ductwork:

A = 8" Round, Left Discharge out of Flex Blower

B = 8" Round, Right Discharge out of Flex Blower

C = 8" Round, Down Discharge out of Flex Blower

(Electrical Box to be mounted remotely)

D = 2" x 19¼", Left Discharge out of Housing

to Remote Blower or Flex Blower in remote

location. Use 2" x 19¼" to 8" round transition,

2" x 19¼" to 10" round transition, or 2" x 19¼"

ductwork as appropriate.

E = 2" x 19¼", Right Discharge out of Housing

to Remote Blower or Flex Blower in remote

location. Use 2" x 19¼" to 8" round transition,

2" x 19¼" to 10" round transition, or 2" x 19¼"

ductwork as appropriate.

F = 2" x 19¼", Rear Discharge out of Housing

to Remote Blower or Flex Blower in remote

location. Use 2" x 19¼" to 8" round transition,

2" x 19¼" to 10" round transition, or 2" x 19¼"

ductwork as appropriate.

2. For best performance: Choose the ducting option which

allows the shortest length of ductwork and a minimum

number of elbows and transitions. Check location of

oor joists, wall studs, electrical wiring or plumbing for

possible interference.

CONTENTS

These parts are included with your downdraft housing:

1 - Parts Bag

4 - Support Legs

1 - Trim Kit

1 - Electrical Panel

2 - Support Brackets

2-3/4"

2-1/2"

FLEX

BLOWER

*

*

Remote blowers use 8" or 10" round remote discharge

plate instead of ex blower.

Note: Remove all protective lm and packaging before op-

eration. In order to remove all protective lm and packag-

ing, raise the ventilator housing and remove the front panel

to access the lter area.
