TENT PITCHING INSTRUCTIONS – RIVENDALE (UK)

Flysheet First Pitching:

 Open out flysheet and position in required direction

 Peg out the four main corners of the tent using the pegs supplied

 Locate inflation points on each beam

 Remove the valve cap (figure 1)

 Insert the correct pump adaptor, which will lock onto the valve (figure 2 & 3)

 There is no need to turn the white valve button as the adaptor will move this to the correct position

 Inflate all tubes to 7psi. The tubes MUST be guided into an arch as they are inflated.

 Final tube pressure MUST NOT exceed 8psi

 DO NOT OVER-INFLATE THE BEAMS

 Start with the centre tube and guide the beam into an upright position while it is inflating

 Inflate the other beams.

 A small amount of air may leak from the valve when it is being inflated but this is normal

 Remove the pump adaptor as soon as the beam is at the correct psi

 Replace the valve cap to create an air tight seal (figure 5 & 6)

 Ensure the tent is in a straight line

 The groundsheet should be flat and wrinkle free

 Peg out the remaining poles and pegging points using pin pegs at the base of poles

 Peg out ALL guy lines using pin-pegs ensuring that guy line fabric attachment points are evenly tensioned.

 Reposition and adjust tensioning where necessary

CORRECT PUMP SET-UP:

 Pump Body > Pressure Valve > Pressure Gauge > Hose

 (Ensure the valve/gauge/hose are connected to the inflation port of the pump)

Inner Attachment:

 Open out inner tent inside flysheet and position doorways to correspond with the living area

 Starting from the rear corners of the tent, attach the elasticated hooks on the groundsheet to corresponding rings on the flysheet

 Suspend the inner by attaching toggles of inner tent through rings on inside of flysheet

 Do the rear first and work forward

Tension Band System:

 Remove Tension Band System from pockets and attach into the corresponding clips at the apex of the pole

 Adjust the straps until they are taut

 DO NOT OVERTENSION. Excess tension will alter the shape of the tent

TO DEFLATE AIRBEAM/ AIRAWAY/ AIRAWNING:

 To deflate the AirBeam (remove the cap (figure 7)) press & turn (figure 8) the button from CLOSED to OPEN

In the unlikely event of a puncture:

 Deflate the air beam. Unzip the internal flysheet sleeve which contains the affected beam.

 Remove the tube and its protective outer.

 The zips for the protective outer are cable tied together to prevent accidental access. Cut the cable tie and open the zip.

 DO NOT open these zips when the tube inflated.

 Remove the clear rubberised tube from the protective sleeve taking care when removing the valve from the sleeve.

 Partially inflate the tube and pass through a bucket or basin of water, looking for air bubbles. This will indicate location of puncture

 Use the repair patch provided and cover hole, using instructions on patch. Re-insert tube into protective outer, closing zip from both ends, so that zip pullers

are in the flysheet sleeve (this might be easier with the tube partially inflated)

AIRBEAM INFLATION:

AIRBEAM DEFLATION:

AUFBAUANLEITUNG– RIVENDALE (DE)

Mit Außenzeltaufbau zuerst:

 Außenzelt auslegen und korrekt ausrichten.

 Befestigen Sie die 4 Hauptecken des Zelts mit Hilfe der mitgelieferten Heringe

 Lokalisieren Inflation Punkte auf jeder Strahl

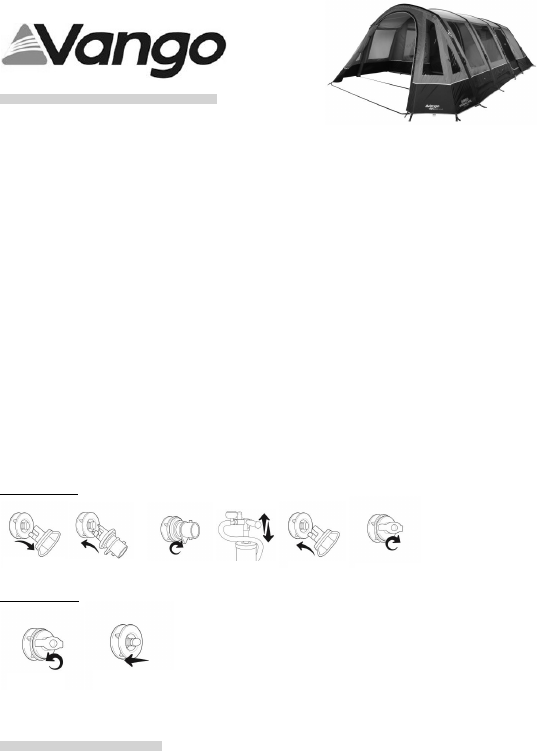

Figure 1

Remove

locking cap

Figure 3

Lock locking pump

connector

Figure 4

Inflate with

AirBeam pump

Figure 5

Insert locking

cap

Figure 6

Lock locking cap

Figure 8

Push button to deflate &

twist to open position

Figure 7

Unlock

locking cap

Figure 2

Insert locking pump

connector
