INSTALLATION

TECHNICAL INFORMATION

FOR THE INSTALLER

Installation, adjustments of controls and

maintenance must only be carried out by a qualified

engineer.

Incorrect installation may cause damage to persons,

animals or property for which the Manufacturer shall

not be considered responsible.

During the life of the system, the automatic safety or

regulating devices on the appliance may only be

modified by the manufacturer or by his duly

authorized dealer.

3) INSTALLING THE HOT PLATE

Check that the appliance is in a good condition after

having removed the outer packaging and internal

wrappings from around the various loose parts. In

case of doubt, do not use the appliance and contact

qualified personnel.

Never leave the packaging materials (cardboard,

bags, polystyrene foam, nails, etc.) within

children's reach since they could become

potential sources of danger.

The measurements of the opening made in the top

of the modular cabinet and into which the hot plate

will be installed are indicated in either fig. 7. Always

comply with the measurements given for the hole

into which the appliance will be recessed (see fig. 7

and 8).

The appliance belongs to class 3 and is

therefore subject to all the provisions

established by the provisions governing such

appliances.

4) FIXING THE HOT PLATE

The hot plate has a special seal which prevents

liquid from infiltrating into the cabinet. Strictly

comply with the following instructions in order to

correctly apply this seal:

- Detach the seals from their backing, checking that

the transparent protection still adheres to the seal

itself.

- Overturn the hot plate and correctly position seal

"E" (fig. 9) under the edge of the hot plate itself, so

that the outer side of the seal perfectly matches

the outer perimetral edge of the hot plate. The

ends of the strips must fit together without

overlapping.

- Evenly and securely fix the seal to the hot plate,

pressing into place with the fingers and remove

the strip of protective paper from the seal and set

the plate into the hole made in the cabinet.

- Fix the hooks in the relative accomodations of the

body with the screws "G" (see fig.10).

- The prospective walls (left or right) that exceed the

working table in height must be at a minimum

distance from the cutting as mentionned both in

the columns and the scheme.

- In order to avoid accidental touch with the

overheating bottom of the hob, during the working,

is necessary to put a wooden insert, fixed by

screws, at a minimum distance of 60 mm from the

top (see fig. 7).

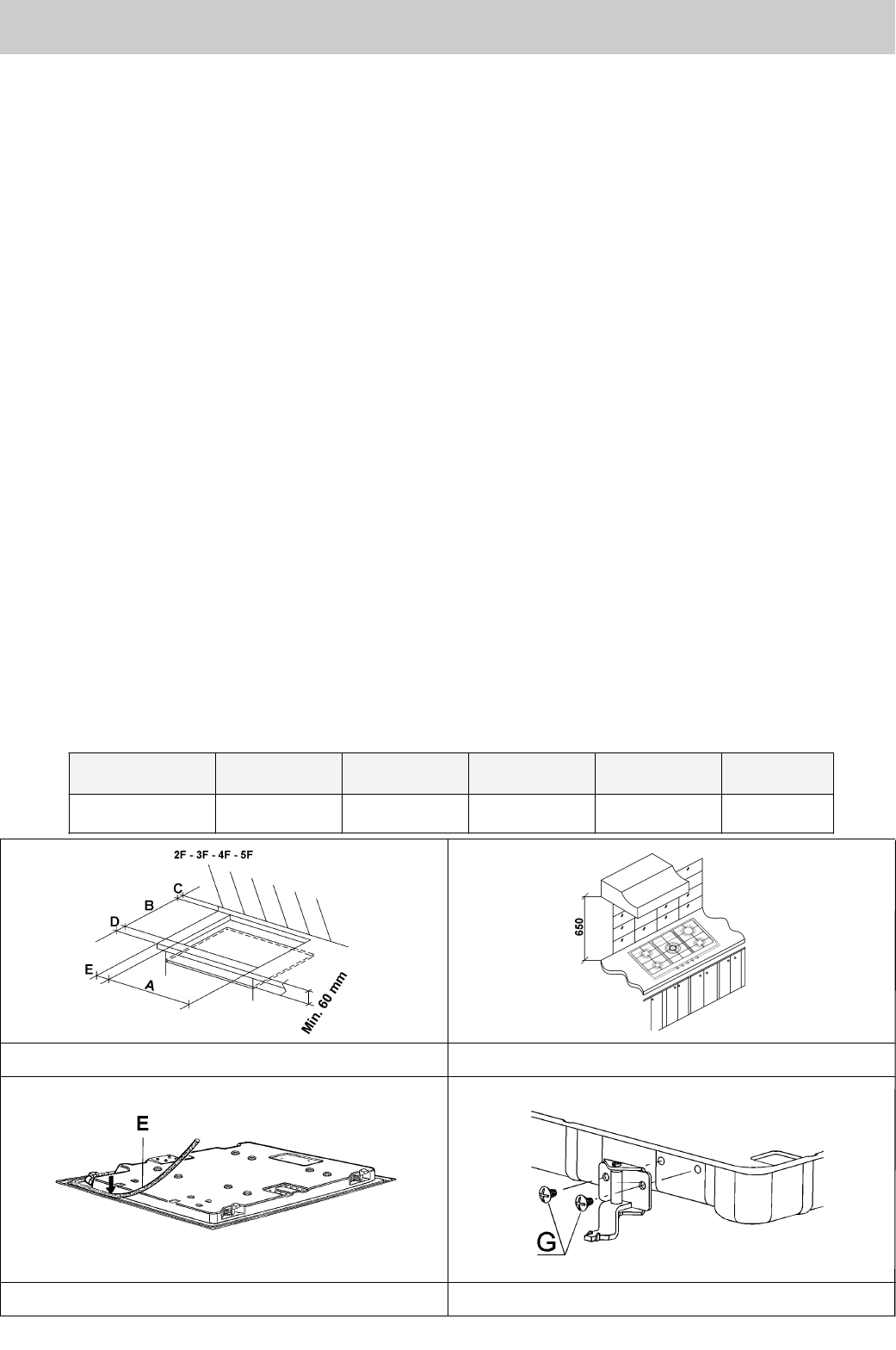

FIG. 9 FIG. 10

FIG. 7 FIG. 8

A

B

C

D

E

2F – 3F - 4F – 5F

833

475

62.5

62.5

73.5 min.

COMPLY WITH THE DIMENSIONS (mm)
