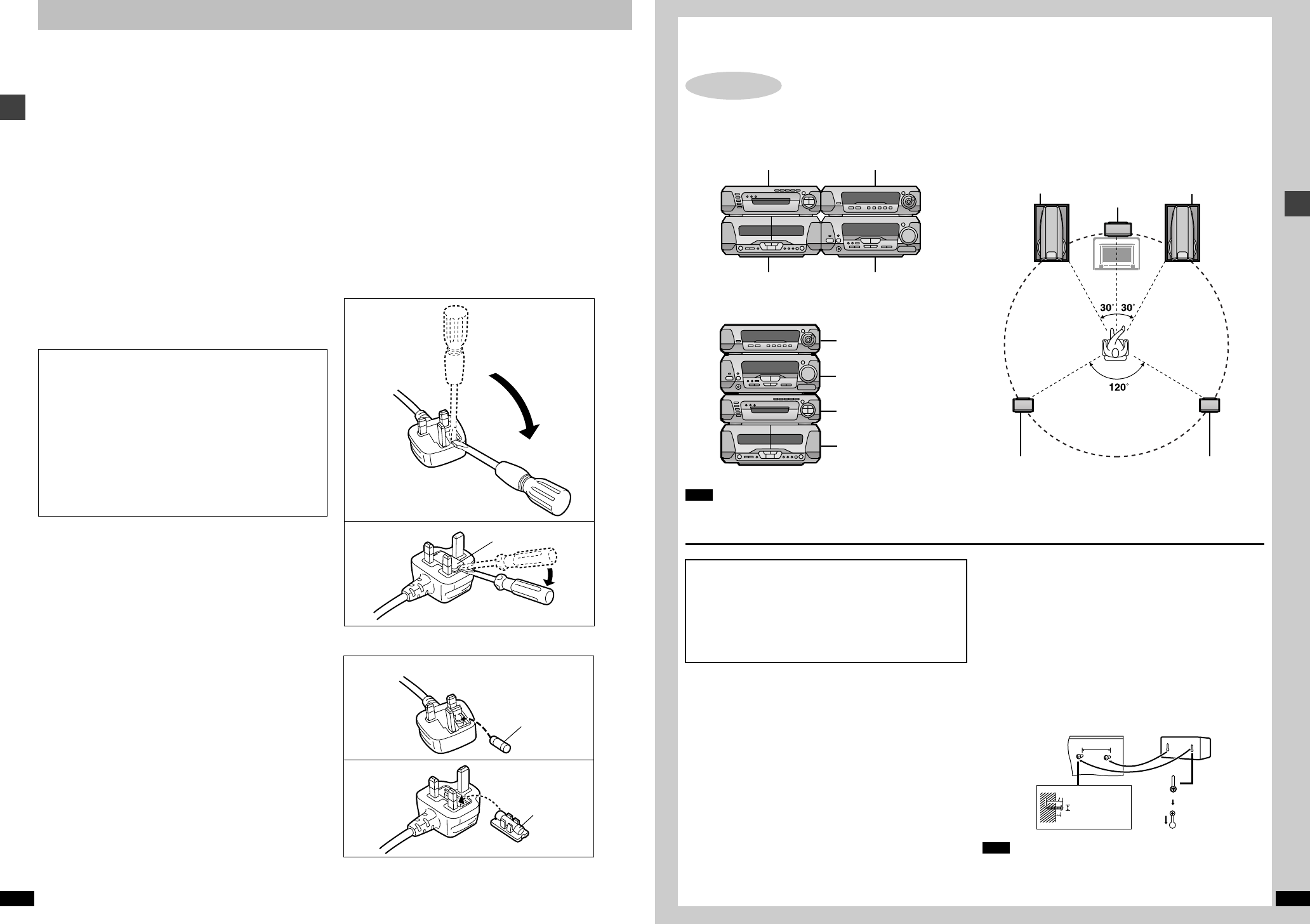

Bruksanvisning Technics SC-EH790 Hembiopaket

Bruksanvisning

4

RQT6866

Before use

5

RQT6866

Simple set-up and play

A

D

C

B

E

Notes on speaker use

∫ You can damage your speakers and shorten their useful life if you play

sound at high levels over extended periods.

∫ Reduce the volume in the following cases to avoid damage.

≥When playing distorted sound.

≥When the speakers are receiving howling from a microphone

(for Australia and N.Z.) or record player, noise from FM broadcasts,

or continuous signals from an oscillator, test disc, or electronic

instrument.

≥When adjusting the sound quality.

≥When turning the unit on or off.

If irregular colouring occurs on your television

These speakers are designed to be used close to a television, but the

picture may be affected with some televisions and set-up combinations.

If this occurs, turn the television off for about 30 minutes.

The television’s demagnetizing function should correct the problem.

If it persists, move the speakers further away from the television.

Note

The wall or pillar on which the speakers are to be attached should be

capable of supporting 5 kg per screw.

Front speakers

Left and right front speakers are exactly same.

Surround speakers

Place either side of the listening position, or slightly to the rear, about 1

meter higher than ear level with the Technics logo facing toward the

listening position.

The effect varies with the type of music and the music source.

If you are unable to position the surround speakers as recommended

You can put them near the front speakers and still achieve a surround-like

effect (➡ page 26, VIRTUAL REAR SURROUND).

Attaching to a wall

Set the speaker onto screws and slide through bracket to lock into

position.

STEP1

Simple set-up and play

Locating

Components

Sound processor

Cassette deck Tuner/amplifier

Speakers

Note

Do not put the CD changer or CD player on the top

of the tuner/amplifier. Heat can damage your CDs.

CD changer or CD player

Sound processor

Cassette deck

Tuner/amplifier

CD changer or

CD player

Optimum location

Distance: A=B=C=D=E

Front speaker (left) Front speaker (right)

[EH790]

Center speaker

[EH790]

Surround speaker (left)

[EH790]

Surround speaker (right)

Use only the supplied speakers.

Using other speakers can damage the unit and sound quality will be neg-

atively affected.

The illustrations show SC-EH790 for the United Kingdom and Eastern Europe.

Caution

≥Use the speakers only with the recommended system.

Failure to do so may lead to damage to the amplifier and/or the

speakers, and may result in the risk of fire.

Consult a qualified service person if damage has occurred or if

you experience a sudden change in performance.

≥Do not attempt to attach these speakers to walls using methods

other than those described in this manual.

Caution for AC Mains Lead

(For United Kingdom)

(“EB” area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains

plug for your safety and convenience.

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that

the replacement fuse has a rating of 5-ampere and that it

is approved by ASTA or BSI to BS1362.

Check for the ASTA mark m or the BSI mark o on the

body of the fuse.

If the plug contains a removable fuse cover you must en-

sure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a

replacement cover is obtained.

A replacement fuse cover can be purchased from your

local dealer.

If a new plug is to be fitted please observe the wiring code

as stated below.

If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance

with the following code:

Blue: Neutral, Brown: Live.

As these colours may not correspond with the coloured

markings identifying the terminals in your plug, proceed

as follows:

The wire which is coloured Blue must be connected to the

terminal which is marked with the letter N or coloured

Black or Blue.

The wire which is coloured Brown must be connected to

the terminal which is marked with the letter L or coloured

Brown or Red.

WARNING: DO NOT CONNECT EITHER WIRE TO THE

EARTH TERMINAL WHICH IS MARKED WITH THE

LETTER E, BY THE EARTH SYMBOL n OR COL-

OURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC

mains plug (figures A and B). Confirm the AC mains plug

fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

2. Replace the fuse and close or attach the fuse cover.

Fuse cover

Figure A

Figure B

Fuse

(5 ampere)

Fuse

(5 ampere)

Figure A

Figure B

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUIT-

ABLE FOR THE SOCKET OUTLET IN YOUR

HOME THEN THE FUSE SHOULD BE RE-

MOVED AND THE PLUG CUT OFF AND DIS-

POSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELEC-

TRICAL SHOCK IF THE CUT OFF PLUG

IS INSERTED INTO ANY 13-AMPERE

SOCKET.

70 mm

30–35 mm

7.5–9.5 mm

7–9 mm
