HEAD PHONE
ANT
S-VIDEO
VIDEO
L
R
Pr
Pb
Y
L
R
COMPONENT
AUDIO
AV-IN2
AUDIO
AV-IN1
11
12
13
14
15
16
17
HEAD PHONE
ANT
S-VIDEO
VIDEO
L
R
Pr
Pb
Y
L
R
COMPONENT
AUDIO
AV-IN2
AUDIO
AV-IN1

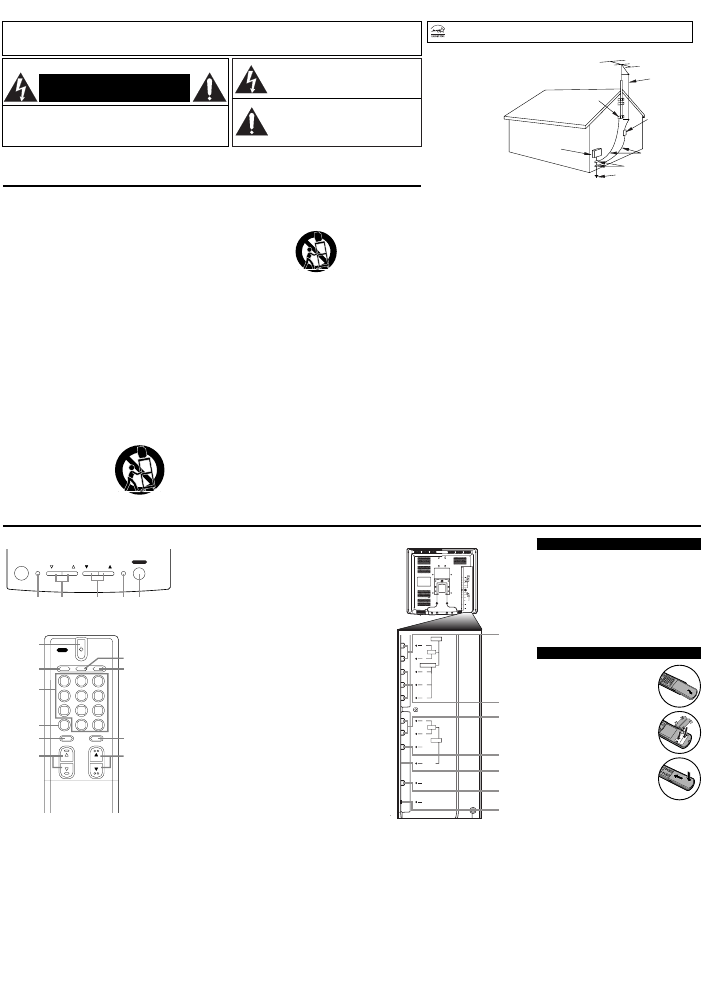

IMPORTANT SAFEGUARDS
The important note is located on the rear of the cabinet.
1. Read instructions-All the safety and operating instruc-
tions should be read before the appliance is operated.
2. Retain Instructions-The safety and operating instruc-
tions should be retained for future reference.
3. Heed Warnings-All warnings on the appliance and in
the operating instructions should be adhered to.
4. Follow Instructions-All operating and use instructions
should be followed.
5. Cleaning-Unplug TV from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol clean-
ers. Use a damp cloth for cleaning.
EXCEPTION: A product that is meant for uninter-
rupted service and that for some specific reason, such
as the possibility of the loss of an authorization code
for a CATV converter, is not intended to be unplugged
by the user for cleaning or any other purpose, may
exclude the reference to unplugging the appliance in
the cleaning description otherwise required in item 5.
6. Attachments-Do not use attachments not recommend-
ed by the TV manufacturer as they may cause hazards.
7. Water and Moisture-Do not use this TV near water, for
example, near a bath tub, wash bowl, kitchen sink, or
laundry tub, in a wet basement or near a swimming
pool, and the like.
8. Accessories-Do not place this TV on an unstable cart,
stand, tripod, bracket, or table. The TV may fall, caus-
ing serious injury to someone, and serious damage to
the appliance. Use only with a cart, stand, tripod,
bracket or table recommended by the manufacturer or
sold with the TV.
Any mounting of the appliance should follow the man-
ufacturer’s instructions and should
use a mounting accessory recom-
mended by the manufacturer. An
appliance and cart combination
should be moved with care. Quick
stops, excessive force and uneven
surfaces may cause the appliance
and cart combination to overturn.
AMEUBLES- Cet appareil ne doit être placé que sur
un meuble (avec ou sans roulettes) recommandé par le
fabricant. Si vous l’installez sur
un meuble à roulettes, déplacez
les deux ensembles avec précau-
tion. Un arrêt brusque, l’utilisa-
tion d’une force excessive et des
surfaces irrégulières risquent de
déstabiliser l’ensemble et de le
renverser.
9. Ventilation-Slots and openings in the cabinet and the
back or bottom are provided for ventilation and to
ensure reliable operation of the TV and to protect it
from overheating, these openings must not be blocked
or covered. The openings should never be blocked by
placing the TV on a bed, sofa, rug, or other similar
surface. This TV should never be placed near or over a
radiator or heat register. This TV should not be placed
in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufac-
turer’s instructions have been adhered to .
10. Power Sources-This TV should be operated only from
the type of power source indicated on the marking
label. If you are not sure of the type of power supply
to your home, consult your appliance dealer or local
power company. For TVs intended to operate from
battery power, or other sources, refer to the operating
instructions.
11. Grounding or Polarization-This TV is equipped with a
polarized alternating-current line plug(a plug having
one blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety feature.
If you are unable to insert the plug fully into the out-
let, try reversing the plug. If the plug should still fail
to fit, contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the polar-
ized plug.
PORTABLE CART WARNING
S3126A
12. Power-Cord Protection-Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the
appliance.
13. Outdoor Antenna grounding-If an outside antenna or
cable system is connected to the TV, be sure the anten-
na or cable system is grounded so as to provide some
protection against voltage surges and built-up static
charges. Article 810 of the National Electrical Code,
ANSI/NFPA No. 70, provides information with respect
to proper grounding of the mast and supporting struc-
ture, grounding of the lead-in wire to an antenna dis-
charge unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding elec-
trodes and requirements for the grounding electrode.
(Fig. A)
14. Lightning-For added protection for this TV receiver
during a lightning storm or when it is left unattended
and unused for long periods of time, unplug it from
the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the TV due to
lightning and power-line surges.
15. Power Lines-An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light of power circuits or where it can fall into
such power lines or circuits. When installing an out-
side antenna system, extreme care should be taken to
keep from touching such power lines or circuits as
contact with them might be fatal.
16. Overloading-Do not overload wall outlets and exten-
sion cords as this can result in a risk of fire or electric
shock.
17. Object and Liquid Entry-Never push objects of any
kind into this TV through openings as they may touch
dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of
any kind on the TV.
18. Servicing-Do not attempt to service this TV yourself
as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing
to qualified service personnel.
19. Damage Requiring Service-Unplug this TV from the
wall outlet and refer servicing to qualified service per-
sonnel under the following conditions:
a. When the power supply cord or plug is damaged or
frayed.
b. If liquid has been spilled or objects have fallen into the
TV.
c. If the TV has been exposed to rain or water.
d. If the TV does not operate normally by following the
operating instructions. Adjust only those controls that
are covered by the operating instructions, as improper
adjustment of other controls may result in damage and
will often require extensive work by a qualified techni-
cian to restore the TV to its normal operation.
e. If the TV has been dropped or damaged in any way.
f. When the TV exhibits a distinct change in perfor-
mance-this indicates a need for service.
20. Replacement Parts-When replacement parts are
required, be sure the service technician uses replace-
ment parts specified by the manufacturer that have the
same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, injury
to persons or other hazards.
21. Safety Check-Upon completion of any service or
repairs to this TV, ask the service technician to per-
form routine safety checks to determine that the TV is
in proper operating condition.
22. Heat-This TV product should be situated away from
heat sources such as radiators, heat registers, stoves or
other products (including amplifiers) that produce
heat.
FIGURE A
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
ELECTRIC
SERVICE
EQUIPMENT
GROUND
CLAMP
NEC - NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
S2898A
GROUND CLAMPS
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ANTENNA
LEAD IN
WIRE
OPERATING CONTROLS AND FUNCTIONS
- REAR PANEL -
1. MENU button- Press to display the menu
on the TV screen.
2. VOLUME (VOL)
YY
/
XX
buttons- Press to
control the volume level.
Press the VOL
XX
button to determine the
setting mode from the menu on the TV
screen.
Press to select or adjust from a particular
menu. (for example: Language Selection,
Channel Presetting, Closed Caption
Selection, Picture Adjustment or V-CHIP
Set Up)
3. CHANNEL (CH) ▼/▲ buttons- Press to
select memorized channel.
Press to select the setting mode from the
menu on the TV screen.
Press to select item you want to adjust in
the picture control mode.
4. SELECT (INPUT SELECT) button-
Press to select TV or video input mode
(VIDEO1 or VIDEO2).
(See USING AUDIO/VIDEO INPUT
JACKS.)
5. POWER button- Press to turn the TV ON
and OFF.
6. Channel number button- Press two digits
to directly access the desired channel.
Remember to press a "0" before a single
digit channel.
+100 button- Press to select cable chan-
nels higher than 99.
7. MUTE button- Press to turn off the sound
portion of the TV program. (Volume level
display turns LIGHT RED from LIGHT
BLUE.) Press it again or press the
VOL(ume)
YY
or
XX
button to restore sound.
8. CH RETURN button- Press to go back to
the previously viewed channel. Press it
twice to return to the present channel.
9. DISPLAY button- Press to display the
channel number and TV sound mode on
the screen. The channnel number will dis-
appear by pressing it again.
10. SLEEP button- Press to display the sleep
timer and start the function. The shut off
time can be determined by the number of
times you press the button. (0, 10, 20, 30,
..90, 0 minutes)
11. AUDIO L/R input jacks- VIDEO2:
Connect to the left/right audio output jacks
of a DVD player or set top box.
12. COMPONENT (Y/P
b/Pr) video input
jacks- Connect to the component video out
jacks of a DVD or set top box.
13. AUDIO L/R input jacks- VIDEO1:
Connect to the left/right audio output jacks
of a video camera, VCR or video game.
Note: The AUDIO L jack is for mono
input. The sound is heard from both speak-
ers. Use this jack for connecting monaural
audio equipment.
14. VIDEO input jack- Connect to the video
output jack of a video camera, VCR or
video game.
15. S-VIDEO input jack- Connect to the S-
VIDEO output jack of a video camera or
VCR using the S-VIDEO cable (not sup-
plied).
Note: The S-VIDEO jack is given priority
over the VIDEO jack.
16. ANT(enna). in jack- Connect to an anten-
na, cable system or satellite system.
17. HEADPHONE jack- Connect headphone
(not supplied) for personal listening.
Note: Do not connect earphones that have
an L-shaped plug. The plug may interfere
with the cabinet.
MENU VOLUME CHANNEL SELECT
POWER
1
2
3
4
5
USING AUDIO/VIDEO INPUT JACKS
When you use the AUDIO/VIDEO input jacks,
select “VIDEO1” or “VIDEO2” mode by
pressing the INPUT SELECT button on the
remote control or the SELECT button on the
front panel on the TV.
•To use the jacks of AV-IN1 on the TV,
select “VIDEO1”.
•To use the jacks of AV-IN2 on the TV,
select “VIDEO2”.
INSTALLING THE BATTERIES
1) Remove the battery
compartment cover on the
remote unit by sliding it while
slightly twisting.
2) Insert 2 “AA” penlight
batteries into battery
compartment in the direction
as indicated by the polarity
(+ /
-
) markings.
3) Replace the cover.
4) Push the cover on its top side
until it clicks in order to fit the
cover completely to the
compartment.
[BATTERY PRECAUTIONS]
• Be sure to follow the correct polarity as
indicated in the battery compartment.
Reversed batteries may cause damage to
the device.
• Do not mix different types of batteries
together (e.g. Alkaline and Carbon-Zinc) or
old batteries with fresh ones.
• If the device is not to be used for a long
period of time, remove the batteries to pre-
vent damage or injury from possible battery
leakage.
• Do not try to recharge batteries not intend-
ed to be recharged; they can overheat and
rupture.
SYMBOLE D'AVERTISSEMENT POUR
LES COMPOSANTES
APPAREIL ET MEUBLE A ROULETTES
S3126A
- FRONT PANEL -
- REMOTE CONTROL -
POWER
INPUT
SELECT
DISPLAY SLEEP
MUTE CH RETURN
VOL
123
456
789
MENU
0
+100
CH
TV
5
6
2
1
7
9
8
10
4
3
As an ENERGY STAR Partner, our company has determined that this product meets
the E
NERGY STAR guidelines for energy efficiency. ENERGY STAR is a U.S. registered mark.
®
®
®
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK) NO
USER SERVICEABLE PARTS INSIDE. REFER SERVIC-
ING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THIS SYMBOL INDICATES THAT
DANGEROUS VOLTAGE CONSTITUT-
ING A RISK OF ELECTRIC SHOCK IS
PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT
THERE ARE IMPORTANT OPERAT-
ING AND MAINTENANCE INSTRUC-
TIONS IN THE LITERATURE
ACCOMPANYING THE APPLIANCE.
Delta i konversationen om denna produkt
Här kan du dela vad du tycker om Sylvania 6615LE LCD TV. Om du har en fråga, läs först noggrant igenom manualen. Att begära en manual kan göras genom att använda vårt kontaktformulär.
