HEAD PHONE
COMPONENT
POWER
INPUT
DC12V
S-VIDEO
ANT.
AV-IN1
VIDEO AUDIO RL
AV-IN2
AUDIO
Y
P
B
PR
R
L
+
-
12
13
14
15
16
16
17
18

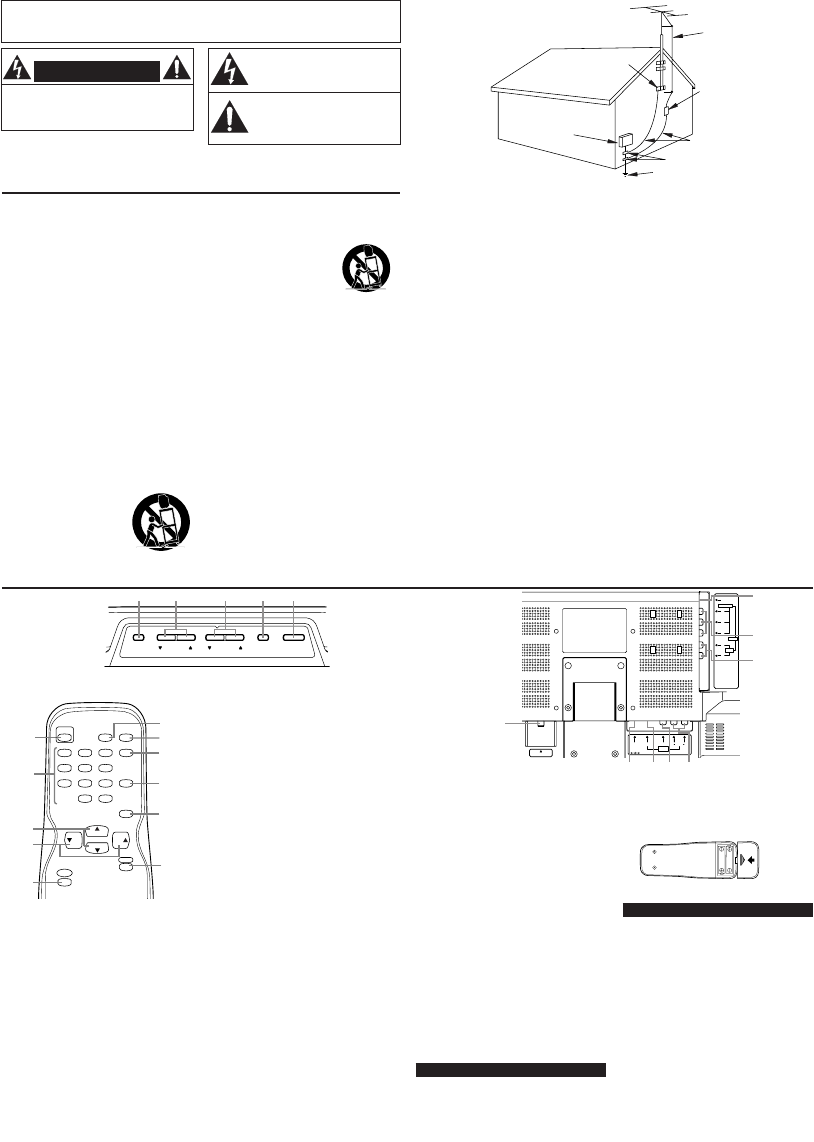

WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLI-
ANCE TO RAIN OR MOISTURE.
IMPORTANT SAFEGUARDS
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK) NO
USER SERVICEABLE PARTS INSIDE. REFER SER-
VICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THIS SYMBOL INDICATES THAT DAN-
GEROUS VOLTAGE CONSTITUTING A
RISK OF ELECTRIC SHOCK IS PRE-
SENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT
THERE ARE IMPORTANT OPERATING
AND MAINTENANCE INSTRUCTIONS
IN THE LITERATURE ACCOMPANYING
THE APPLIANCE.
The important note is located on the rear of the cabinet.
1. Read instructions-All the safety and operating instruc-
tions should be read before the appliance is operated.
2. Retain Instructions-The safety and operating instruc-
tions should be retained for future reference.
3. Heed Warnings-All warnings on the appliance and in
the operating instructions should be adhered to.
4. Follow Instructions-All operating and use instructions
should be followed.
5. Cleaning-Unplug TV from the wall outlet before clean-
ing. Do not use liquid cleaners or aerosol cleaners. Use
a damp cloth for cleaning.
EXCEPTION: A product that is meant for uninter-
rupted service and, that for some specific reason, such
as the possibility of the loss of an authorization code
for a CATV converter, is not intended to be unplugged
by the user for cleaning or any other purpose, may
exclude the reference to unplugging the appliance in
the cleaning description otherwise required in item 5.
6. Attachments-Do not use attachments not recommended
by the TV manufacturer as they may cause hazards.
7. Water and Moisture-Do not use this TV near water, for
example, near a bath tub, wash bowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming
pool, and the like.
8. Accessories-Do not place this TV on an unstable cart,
stand, tripod, bracket, or table. The TV may fall, caus-
ing serious injury to someone, and serious damage to
the appliance. Use only with a cart, stand, tripod,
bracket, or table recommended by the manufacturer, or
sold with the TV.
Any mounting of the appliance should follow the man-
ufacturer’s instructions and should
use a mounting accessory recom-
mended by the manufacturer. An
appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
AMEUBLES- Cet appareil ne doit être placé que sur un
meuble (avec ou sans roulettes) recommandé par le
fabricant. Si vous l’installez sur
un meuble à roulettes, déplacez
les deux ensembles avec précau-
tion. Un arrêt brusque, l’utilisation
d’une force excessive et des sur-
faces irrégulières risquent de
déstabiliser l’ensemble et de le
renverser.
9. Ventilation-Slots and openings in the cabinet and the
back or bottom are provided for ventilation and to
ensure reliable operation of the TV and to protect it
from overheating, these openings must not be blocked
or covered. The openings should never be blocked by
placing the TV on a bed, sofa, rug, or other similar sur-
face. This TV should never be placed near or over a
radiator or heat register. This TV should not be placed
in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufac-
turer’s instructions have been adhered to .
10. Power Sources-This TV should be operated only from
the type of power source indicated on the marking
label. If you are not sure of the type of power supply to
your home, consult your appliance dealer or local
power company. For TVs intended to operate from bat-
tery power, or other sources, refer to the operating
instructions.
11. Grounding or Polarization-This TV is equipped with a
polarized alternating-current line plug(a plug having
one blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety feature.
If you are unable to insert the plug fully into the outlet,
try reversing the plug. If the plug should still fail to fit,
contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized plug.
PORTABLE CART WARNING
S3126A
12. Power-Cord Protection-Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the
appliance.
13. Outdoor Antenna grounding-If an outside antenna or
cable system is connected to the TV, be sure the anten-
na or cable system is grounded so as to provide some
protection against voltage surges and built-up static
charges. Article 810 of the National Electrical Code,
ANSI/NFPA No. 70, provides information with respect
to proper grounding of the mast and supporting struc-
ture, grounding of the lead-in wire to an antenna dis-
charge unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding elec-
trodes, and requirements for the grounding electrode.
(Fig. A)
14. Lightning-For added protection for this TV receiver
during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable system.
This will prevent damage to the TV due to lightning
and power-line surges.
15. Power Lines-An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light of power circuits, or where it can fall into
such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact
with them might be fatal.
16. Overloading-Do not overload wall outlets and extension
cords as this can result in a risk of fire or electric shock.
17. Object and Liquid Entry-Never push objects of any
kind into this TV through openings as they may touch
dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of
any kind on the TV.
18. Servicing-Do not attempt to service this TV yourself as
opening or removing covers may expose you to dan-
gerous voltage or other hazards. Refer all servicing to
qualified service personnel.
19. Damage Requiring Service-Unplug this TV from the
wall outlet and refer servicing to qualified service per-
sonnel under the following conditions:
a. When the power supply cord or plug is damaged or
frayed.
b. If liquid has been spilled, or objects have fallen into
the TV.
c. If the TV has been exposed to rain or water.
d. If the TV does not operate normally by following the
operating instructions. Adjust only those controls that
are covered by the operating instructions, as improper
adjustment of other controls may result in damage and
will often require extensive work by a qualified techni-
cian to restore the TV to its normal operation.
e. If the TV has been dropped or damaged in any way.
f. When the TV exhibits a distinct change in perfor-
mance-this indicates a need for service.
20. Replacement Parts-When replacement parts are
required, be sure the service technician uses replace-
ment parts specified by the manufacturer that have the
same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, injury to
persons or other hazards.
21. Safety Check-Upon completion of any service or
repairs to this TV, ask the service technician to perform
routine safety checks to determine that the TV is in
proper operating condition.
22. Heat-This TV product should be situated away from
heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.
FIGURE A
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
ELECTRIC
SERVICE
EQUIPMENT
GROUND
CLAMP
NEC - NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
S2898A
GROUND CLAMPS
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ANTENNA
LEAD IN
WIRE
OPERATING CONTROLS AND FUNCTIONS
- REAR PANEL -
1. MENU button- Press to display the menu
on the TV screen.
2. VOLUME (VOL) ▲/▼ buttons- Press to
control the volume level.
Press to determine the setting mode from the
menu on the TV screen. (only the VOL ▲
button)
Press to select or adjust from a particular
menu. (for example: Language Selection,
Channel Presetting, Closed Caption Selection,
Picture Adjustment, V-CHIP Set Up)
3. CHANNEL (CH) ▲/▼ buttons- Press to
select memorized channel.
NOTE:You MUST PRESET channels
BEFORE using CHANNEL ▲/▼ button.
(See CHANNEL PRESETTING.)
Press to select the setting mode from the
menu on the TV screen.
Press to select item you want to adjust in
the picture control mode.
4. INPUT SELECT button- Press to select
TV or the external input (VIDEO1 or
VIDEO2) mode.
(See USING AUDIO/VIDEO INPUT JACKS.)
5. POWER (PWR) button- Press to turn the
TV ON and OFF.
6. CHANNEL NUMBER button- Press two
digits to directly access the desired channel.
Remember to press a "0" before a single
digit channel.
+100 button- Press to select cable channels
higher than 99.
7. MUTE button- Press the MUTE button to
turn off the sound portion of the TV pro-
gram. (Volume level display turns LIGHT
RED from LIGHT BLUE.) Press the
MUTE button again or press the VOL(ume)
▲ or ▼ button to restore sound.
8. CHANNEL RETURN button- Press this
button to go back to the previously viewed
channel. For example, pressing the CHAN-
NEL RETURN button once will change
channel display from CH 3 (present chan-
nel) to CH 10 (previously viewed channel),
and pressing it a second time will return
from CH 10 to CH 3.
9. DISPLAY button- Press to display the
channel number on the screen. If you press
it again, the channel number will disappear.
10.SLEEP button- Press the SLEEP button to
display the sleep timer and start the func-
tion. The shut off time can be determined
by the number of times you press the but-
ton. (0, 10, 20, 30,..90, 0 minutes)
11.GAME button- Press to set the Game
mode and external input mode at the same
time. To exit, press the INPUT SELECT
button. (Use VIDEO1 input jacks.)
12.ANT(enna). in jack- Connect to an anten-
na, cable system, or satellite system.
13.POWER INPUT jack- Connect to an AC
adapter (supplied).
14.S-VIDEO input jack- Connect to the S-
VIDEO output jack of a video camera or
VCR using the S-VIDEO cable (not sup-
plied).
NOTE: The S-VIDEO jack is given priority
over the VIDEO jack.
15.VIDEO in jack- Connect to the video out-
put jack of a video camera or VCR.
16.AUDIO L/R in jacks- Connect to the
left/right channel audio output jacks of a
video camera or VCR.
NOTE: The AUDIO L (in) jack is for mono
input. The sound is heard from both speak-
ers. Use this jack for monaural audio equip-
ment to be hooked up.
17.COMPONENT (Y/Pb/Pr) video in jacks-
Connect to the component video out jacks
of a DVD.
18.HEADPHONE jack- Connect headphone
(not supplied) for personal listening.
NOTE: Do not connect earphones that have
an L-shaped plug. The plug may interfere
with the cabinet.
INSTALLING THE BATTERIES
1) Slide the battery compartment cover back
on the remote unit.
- REMOTE CONTROL -
1
2
SELECTINPUT
POWERCHANNLLVOLUMEMENU
3
4
5
PWR
123
456
789
0 +100
DISPLAY
VOL
CH
CH
VOL
SLEEP
CHANNEL
RETURN
INPUT
SELECT
5
6
2
1
7
9
8
4
10
MUTE
MENU
3
GAME
11
2) Insert 2 "AA" penlight batteries into battery
compartment in the direction as indicated
by the polarity (+ / -) markings. Batteries
installed with incorrect polarity may dam-
age the remote unit.
3) Replace the cover.
USING AUDIO/VIDEO INPUT JACKS
When you use the AUDIO/VIDEO input jacks,
select “VIDEO1” or “VIDEO2” mode by
pressing the INPUT SELECT button on the
remote control.
• To use the jacks at the underneath of the TV,
select “VIDEO1”.
• To use the jacks at the side of the TV, select
“VIDEO2”.
NOTES:
• You may also set the Game mode and exter-
nal input mode at the same time by pressing
the GAME button on the remote control.
"GAME" appears on the TV screen. In this
case, connect the external source to the
AUDIO/VIDEO jacks at the underneath of
the TV. (Use VIDEO1 input jacks.) (See PIC-
TURE ADJUSTMENT.)
• When you use the S-VIDEO connection,
S-VIDEO jack is given priority over the
VIDEO jack.
SYMBOLE D'AVERTISSEMENT POUR
LES COMPOSANTES
APPAREIL ET MEUBLE A ROULETTES
S3126A
- TOP PANEL -
L0111_0131UB(EN)_ÉrÉXê‡ñ .QX33 03.3.27 14:50 Page 2
Delta i konversationen om denna produkt
Här kan du dela vad du tycker om Sylvania 6613LD LCD TV. Om du har en fråga, läs först noggrant igenom manualen. Att begära en manual kan göras genom att använda vårt kontaktformulär.
