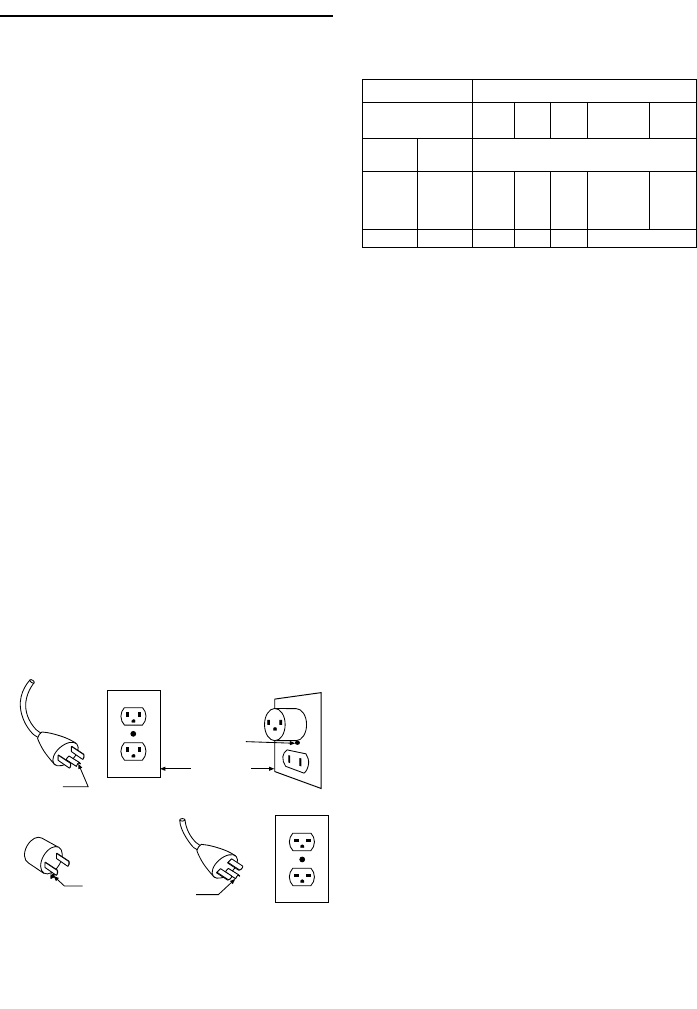

GROUNDING INSTRUCTIONS:

1. All grounded, cord-connected tools:

In the event of a malfunction or breakdown, grounding

provides a path of least resistance for electric current to

reduce the risk of electric shock. This tool is equipped with

an electric cord having an equipment-grounding conductor

and a grounding plug. The plug must be plugged into a

matching outlet that is properly installed and grounded in

accordance with all local codes and ordinances. Do not

modify the plug provided -- if it will not fit the outlet, have

the proper outlet installed by a qualified electrician.

Improper connection of the equipment-grounding

conductor can result in a risk of electric shock. The

conductor with insulation having an outer surface that is

green with or without yellow stripes is the equipment-

grounding conductor. If repair or replacement of the

electric cord or plug is necessary, do not connect the

equipment-grounding conductor to a live terminal. Check

with a qualified electrician or service personnel if the

grounding instructions are not completely understood, or if

in doubt as to whether the tool is properly grounded.

Use only 3-wire extension cords that have 3prong

grounding plugs and 3pole receptacles that accept the

tool's plug.

Repair or replace damaged or worn cord immediately.

2. Grounded, cord-connected tools intended for use on a

supply circuit having a nominal rating less than

150 volts:

This tool is intended for use on a circuit that has an outlet

that looks like the one illustrated in Sketch A in Figure 28.

The tool has a grounding plug that looks like the plug

illustrated in Sketch A in Figure 28. A temporary adapter,

which looks like the adapter illustrated in Sketches B and

C, may be used to connect this plug to a 2-pole receptacle

as shown in Sketch B if a properly grounded outlet is not

available. The temporary adapter should be used only until

a properly grounded outlet can be installed by a qualified

electrician. The green-colored rigid ear, lug, and the like,

extending from the adapter must be connected to a

permanent ground such as a properly grounded outlet box.

Grounding methods

Table 1

Minimum gage for cord

Effective date for Table 1 changed from November 1, 1995 to

November 11, 1996

Ampere Rating Volts Total length of cord in feet

120 V 25 ft. 50 ft. 100 ft. 150 ft.

240 V 50 ft. 100 ft. 200 ft. 300 ft.

More Not More AWG

Than Than

0 6 18 16 16 14

6 10 18 16 14 12

10 12 16 16 14 12

12 16 14 12 Not Recommended

Additional safety instructions :

This milling machine is for indoor use only. Do not expose

to rain or use in damp locations.

Use only accessories recommended for this milling ma-

chine. Follow the instructions that accompany accessories.

Use of improper accessories may cause hazards.

Do not attempt to modify this tool or create accessories

not recommended for use with this tool. Any such

alternation or modification is misuse and could result in

hazardous condition leading to possible serious injury.

To avoid injury from unexpected starting or electrical

shock, do not plug the power cord into a power source

receptacle during unpacking and assembly. This cord must

remain unplugged whenever you are working on the milling

machine.

If any part is missing or damaged, do not plug the milling

machine in until the missing or damaged part is replaced,

and assembly is complete. To avoid electrical shock, use

only identical replacement parts when servicing grounded

tools.

For your safety, never connect the plug to the power

source receptacle until the assembly and adjustment steps

are completed, and you have read and understood the

safety and operating instructions.

To avoid injury from accidental start, make sure the switch

is in the OFF position and the plug is not connected to the

power source receptacle before changing any parts or

tools (i. e. miller)

To avoid injury from accidental start, make sure the switch

is in the OFF position and the plug is not connected to the

power source receptacle before making any adjustments.

For your own safety, do not plug the tool into the power

source receptacle or insert the switch key, until the parts

are correctly installed and adjustments have been made.

For your own safety, use only millers sized and recommen-

ded for this milling machine. Follow the instructions that

accompany the millers.

GROUNDING

ADAPTER

GROUNDING

GROUNDING

MEANS

METAL SCREW

COVER OF GROUNDED

OUTLET BOX

<A>

<B>

<C>

<D>

PIN

PIN

Fig. 28
