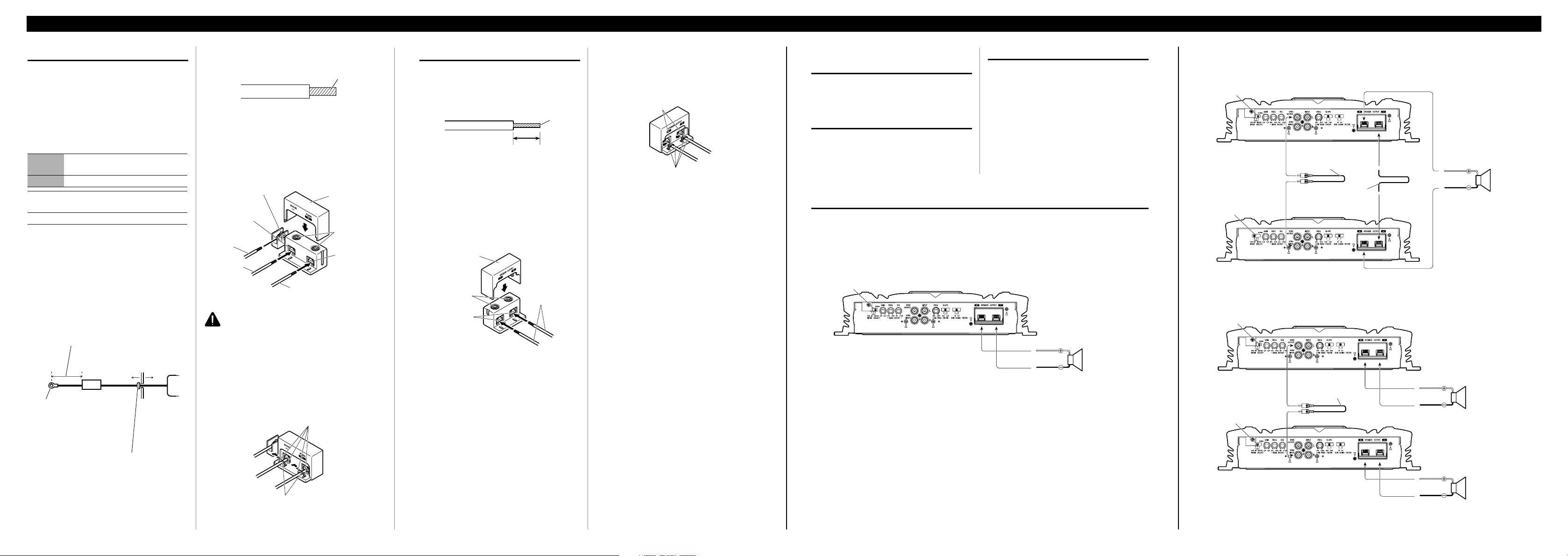

Connecting the Unit

Connecting the Power Terminal

• Always use the recommended battery and ground

wire, which is sold separately. Connect the battery

wire directly to the car battery positive terminal

(+) and the ground wire to the car body.

• Recommended wires size (AWG: American Wire

Gauge) is as follows. The battery wire, the ground

wire and the optional direct ground wire must be

same size.

Battery Wire and Ground Wire Size

Wire Length less than 4 ft 4—7 ft 7—10 ft

less than 1.2 m 1.2—2.1 m 2.1—3.0 m

Wire Size 4 AWG 4 AWG 2 AWG

10—13 ft 13—16 ft 16—19 ft 19—22 ft

3.0—3.9 m 3.9—4.8 m 4.8—5.7 m 5.7—6.7 m

2 AWG 1 AWG 1 AWG 0 AWG

1. Pass the battery wire from the

engine compartment to the interior

of the vehicle.

• After making all other connections to the

amplifier, connect the battery wire terminal of

the amplifier to the positive (+) terminal of

the battery.

2. Twist the battery wire, ground wire

and system remote control wire.

3. Connect the wires to the terminal.

• Before connecting the wires to the terminals,

remove the endcap. After connecting the

wires to the terminals, attach the endcap.

• Fix the wires securely with the terminal

screws.

WARNING

Failure to securely fasten the battery wire to the ter-

minal using the terminal screws could cause the ter-

minal area to overheat and could result in damage

and injury including minor burns.

4. Put the wire ties in the slits and

wrap the wire ties around the wires.

• Wrap the wire tie around the wire insulation,

not the stripped wire.

Engine

compartment

Interior of

the vehicle

Drill a 14

mm (1/2 in.)

hole into the

vehicle body.

Insert the O-ring rubber

grommet into the vehicle

body.

Positive (+)

terminal

Twist

GND terminal

Power

terminal

Battery wire

System remote

control terminal

System remote

control wire

Ground wire

Fuse 150 A

Each amplifier must

be SEPARATELY

fused at 150 A.

The maximum length of the wire between

the fuse and the positive (+) terminal of the

battery is 45 cm (18 in.).

Endcap

Terminal

screw

Connecting the Speaker Terminals

1. Expose the end of the speaker wires

using nippers or a cutter by about

15–20 mm (5/8–3/4 in.) and twist.

2. Connect the speaker wires to the

speaker terminals.

• Before connecting the wires to the terminals,

remove the endcap. After connecting the

wires to the terminals, attach the endcap.

• Fix the speaker wires securely with the termi-

nal screws.

3. Put the wire ties in the slits and

wrap the wire ties around the wires.

• Wrap the wire tie around the wire insulation,

not the stripped wire.

15–20 mm

(5/8–3/4 in.)

Twist

Speaker terminal

Terminal screw

Speaker wire

Endcap

Setting the Gain for

synced amplifier

After connecting the speaker wires, adjust each

synced amplifier’s gain control. All synced ampli-

fiers follow the master amplifier’s settings.

Quick Setup of the Gain

Set each synced amplifier’s gain control to the NOR-

MAL position. This setting will balance output vol-

umes sufficiently for most applications.

Advanced Setup of the Gain

Starting with the master amplifier, adjust the gain

control on each amplifier in order.

1. Output sin wave through this system at low output

level.

2. Use volt meter to measure the master amplifier’s

output voltage level.

3. Use volt meter to measure the synced amplifier’s

output voltage level.

4. Match the synced amplifier’s output to the mas-

ter’s output using the gain control on the synced

amplifier.

5. Repeat for the each synced amplifier in the proper

order.

Connecting the Speaker wires

Connect the speaker leads to suit the configuration according to the figures shown below and the next page.

Single Amplifier

• Speaker wire size must be 10 AWG minimum.

• Load may be any combination of speakers but impedance must be 2 Ω or larger.

MODE SELECT switch must be in

MASTER position.

2 Ω

minimum

1,500 W

Two Amplifier Bridged

• Speaker wire size must be 10 AWG minimum.

• Load may be any combination of speakers but impedance must be 4 Ω or larger.

Two Amplifier

• Speaker wire size must be 10 AWG minimum.

• Load may be any combination of speakers but impedance must be 2 Ω or larger.

MODE SELECT switch must be in MASTER position.

4 Ω

minimum

3,000 W

MODE SELECT switch

must be in SYNC INV

position. Before setting

to the position, remove

the screw and the stop-

per.

Connecting wire with RCA

pin plugs (sold separately).

Connecting speaker wire

(sold separately).

2 Ω

minimum

1,500 W

2 Ω

minimum

1,500 W

MODE SELECT switch must be in MASTER position.

Connecting wire with

RCA pin plugs (sold

separately).

MODE SELECT

switch must be in

SYNC position.

Wire tie

Slit

Wire tie

Slit
