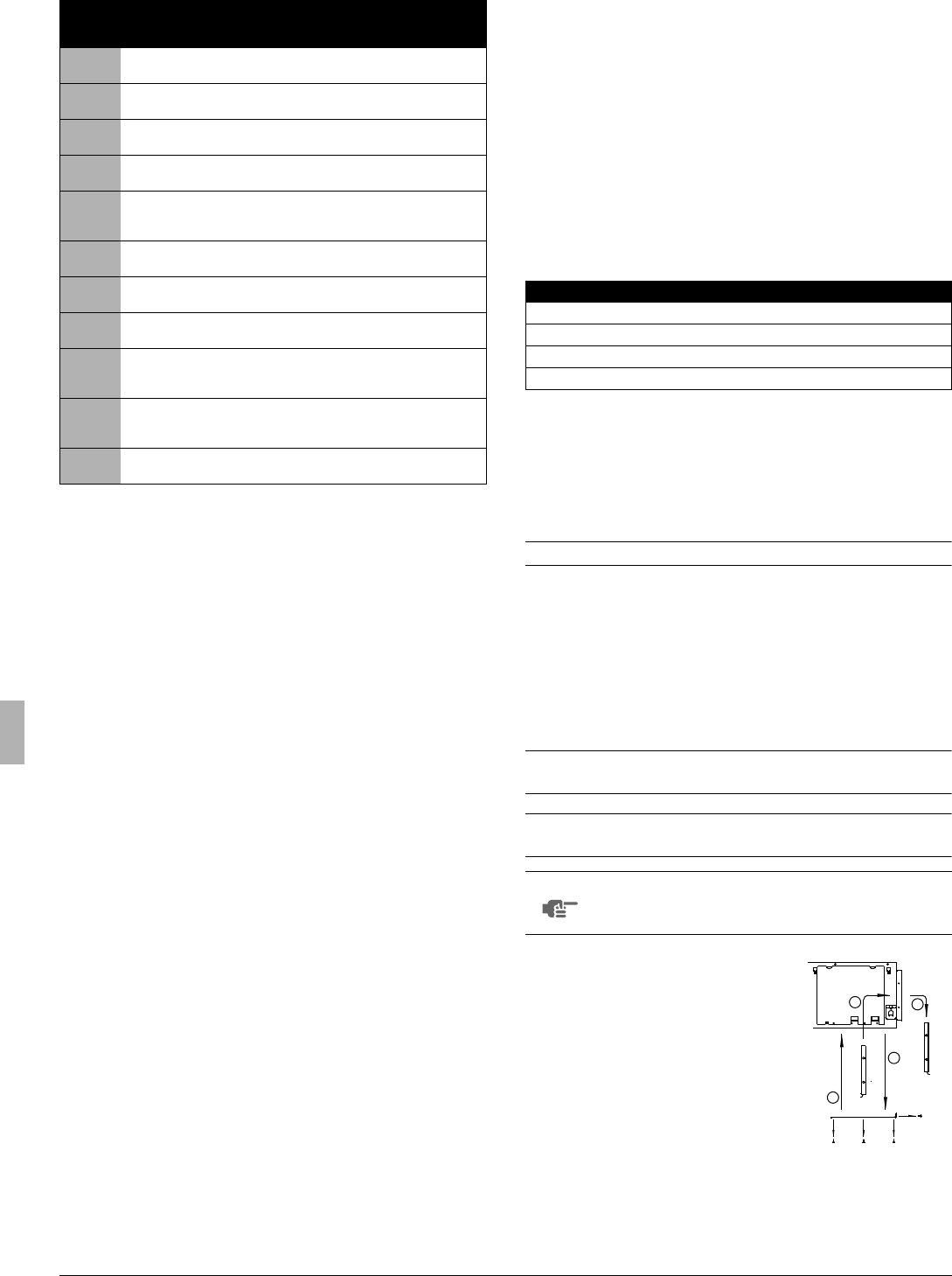

For the following items, take special care during

construction and check after installation is finished

Notes to the installer

■

Read this manual carefully to ensure correct installation. Be

sure to instruct the customer how to properly operate the system

and show him/her the enclosed operation manual.

■

Explain to the customer what system is installed on the site. Be

sure to fill out the appropriate installation specifications in the

chapter "What to do before operation" of the outdoor unit

operation manual.

S

ELECTING

INSTALLATION

SITE

(See figure 1 and figure 2)

1

Select an installation site where the following conditions are

fulfilled and that meets your customer's approval.

- Where optimum air distribution can be ensured.

- Where nothing blocks air passage.

- Where condensate water can be properly drained.

- Where the false ceiling is not noticeably on an incline.

- Where sufficient clearance for maintenance and service can

be ensured.

- Where piping between indoor and outdoor units is possible

within the allowable limit. (Refer to the installation manual of

the outdoor unit.)

- This is a class A product. In a domestic environment this

product may cause radio interference in which case the user

may be required to take adequate measures.

-Keep indoor unit, outdoor unit, power supply wiring and

transmission wiring at least 1 meter away from televisions

and radios. This is to prevent image interference and noise in

those electrical appliances. (Noise may be generated

depending on the conditions under which the electric wave is

generated, even if 1 meter is kept.)

2

Use suspension bolts for installation. Check whether the ceiling

is strong enough to support the weight of the indoor unit. If there

is a risk, reinforce the ceiling before installing the unit.

P

REPARATIONS

BEFORE

INSTALLATION

1

Relation of ceiling opening to unit and suspension bolt position.

(See figure 3)

For installation, choose one of the possibilities as listed further.

Standard rear suction (See figure 6a)

Installation with rear duct and duct service opening (See

figure 6b)

Installation with rear duct, no duct service opening (See

figure 6c)

Tick

✓

when

checked

■

Is the indoor unit fixed firmly?

The unit may drop, vibrate or make noise.

■

Is the gas leak test finished?

It may result in insufficient cooling.

■

Is the unit fully insulated?

Condensate water may drip.

■

Does drainage flow smoothly?

Condensate water may drip.

■

Does the power supply voltage correspond to that shown on the

name plate?

The unit may malfunction or components may burn out.

■

Are wiring and piping correct?

The unit may malfunction or components may burn out.

■

Is the unit safely grounded?

Dangerous at electric leakage.

■

Is the wiring size according to specifications?

The unit may malfunction or components may burn out.

■

Is nothing blocking the air outlet or inlet of either the indoor or

outdoor units?

It may result in insufficient cooling.

■

Are refrigerant piping length and additional refrigerant charge

noted down?

The refrigerant charge in the system might not be clear.

■

Are the air filters fixed properly (when installing with rear duct)?

Maintenance of the air filters can be impossible.

1

Service space

≥

300

2

Drain pipe

3

Power supply wiring port

4

Transmission wiring port

5

Maintenance drain outlet

6

Gas pipe

7

Liquid pipe

Model A B

S-20•25•32FM3HPQ 550 600

S-40•50FM3HPQ 700 750

S-63FM3HPQ 1000 1050

S-80•100•125FM3HPQ 1400 1450

1

Indoor unit

2

Pipe

3

Suspension bolt pitch (x4)

4

Suspension bolt pitch distance

1

Ceiling surface

2

Ceiling opening

3

Service access panel (optional accessory)

4

Air filter

5

Air inlet duct

6

Duct service opening

7

Interchangeable plate

NOTE

Before installation of the unit (in case of installation

with duct, but no duct service opening): modify the

position of the air filters.

1

Remove the air filter(s) at the

outside of the unit

2

Remove the interchangeable plate

3

Install the air filter(s) from the inside

of the unit

4

Reinstall the interchangeable plate

1

2

4

3
