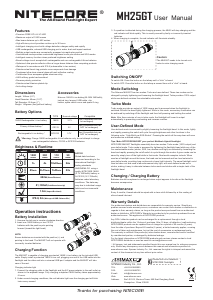

Bruksanvisning Nitecore MH25GT Ficklampa

Bruksanvisning

®

User Manual

Features

• Premium CREE XP-L HI V3 LED

• Maximum output of 1000 lumens

• Max beam distance up to 452 metres

• High efficiency circuit provides runtime up to 36 hours

• Intelligent charging circuit with voltage detection charges safely and rapidly

• USB rechargeable, onboard USB charging port is water, dust and impact resistant

• Multiple output modes are conveniently accessed via rapid rotary switch

• User-defined mode provides customized brightness levels plus strobe and SOS modes

• Intelligent memory function stores preferred brightness setting

• Broad voltage circuit accepts both rechargeable and non-rechargeable Lithium batteries

• Optimized ultra-precise reflector offers a longer beam distance than competing products

• Waterproof in accordance with IPX-8 (submersible to two meters)

• Stainless steel bezel ring protects core components from damage

• Toughened ultra-clear mineral glass with anti-reflective coating

• Constructed from aerospace-grade aluminum alloy

• HAIII military grade hard-anodized

• Reverse polarity protection

• Stainless steel titanium-plated clip

• Anti-rolling design

Dimensions

Length: 160mm (6.3”)

Head Diameter: 40mm (1.57”)

Tail Diameter: 25.4mm (1”)

Weight: 143grams (5oz)(without battery)

Thanks for purchasing NITECORE!

Battery Options

The All-Round Flashlight Expert

Operation instructions

Battery Installation

1. Unscrew the tail cap in counter-clockwise direction.

2. Insert one 18650 battery or two CR123

batteries with the positive pole pointing

forward (toward the light head).

NOTE:

Ensure batteries are inserted with the positive (+) end

pointing to the head. The MH25GT will not operate with

incorrectly inserted batteries.

Charging Function

3. If a problem is detected during the charging process, the MH25 will stop charging and the

red indicator will blink rapidly. This is usually caused by faulty or incorrectly inserted

batteries.

4. When charging is complete, the red indicator will illuminate steadily.

Accessories

Nitecore 18650 Li-ion battery(NL1834 3400mAh),

tactical ring, lanyard, USB cable, clip,

holster, spare switch cover and spare O-ring

TYPE

Nominal voltage

Compatible

Primary Lithium battery *

CR123 3V

Yes (Compatible but can

NOT be recharged)

Yes (Compatible but can

NOT be recharged)

18650 Rechargeable Li-ion battery 18650 3.7V

Yes (Compatible and can

be recharged)

Rechargeable Li-ion battery *

RCR123 3.7V

*Warning: Charge 18650 rechargeable Li-ion batteries only, do not attempt to charge

non-rechargeable batteries, CR123 or RCR123 batteries.

Brightness & Runtime

18650

2×CR123

TURBO HIGH MID LOW

LUMENS

300

LUMENS

1000

LUMENS

110

LUMENS

50

36

h

45

min

1

h

7

h45min

10

h45min

4

h

23

h

3

h

15

min

452m

(Beam Distance)

51,100cd (Peak Beam Intensity)

IPX-8, 2m

(Waterproof AND Submersible)

1.5m (Impact Resistant)

NOTICE

Stated data has been

measured according to the

international flashlight

testing standards

ANSI/NEMA FL1 using a

quality NITECORE 18650

(3.7V 3400mAh) battery or

2×CR123 (3V 1700mAh)

batteries under laboratory

conditions. The data may

vary due to individual usage

habits and environmental

conditions.

Caution:

The MH25GT needs to be turned on in

order to enter charging mode.

Switching ON/OFF

To switch ON: Press the button on the tailcap until a “click” is heard.

To switch OFF: Press the button on the tailcap a second time until a “click” is heard.

Mode Switching

The Nitecore MH25GT has two modes: Turbo and user-defined. These two modes can be

changed by simply tightening and loosening the flashlight head. Turbo provides 100% output

while user-defined contains five selectable sub-modes.

Turbo Mode

Turbo mode provides an output of 1000 lumens and is accessed when the flashlight is

switched ON with the head lightly tightened. While in this mode, momentary illumination can

be achieved by switching off the flashlight and then half pressing and holding the switch.

Note: After three minutes of use in turbo mode, the flashlight will lower its output

automatically to preventing overheating and increase runtime.

User-Defined Mode

User-defined mode is accessed by slightly loosening the flashlight head. In this mode, lightly

and rapidly pressing the switch will cycle through brightness and other functions in the

following order: “High-Mid-Low-SOS-Strobe”. Pressing the switch all the way down will save

and memorize a desired setting.

Tips: Make NITECORE MH25GT your perfect Multitask Hybrid flashlight.

NITECORE MH25GT flashlights essentially have two modes: Turbo mode (100% output) and

user-defind mode. Turbo mode is accessed by tightening the flashlight head while any of the

five customizable modes (strobe, SOS, low, medium and high) are selected by loosening the

head and rapidly pressing the on/off switch to cycle through the modes. A given mode can be

saved by simply turn off the light while in that mode. Real-world examples include: When

used as a flashlight around the home, the head can be loosened and low level selected in

user-defind mode, providing long runtimes at a lower light intensity. The same flashlight could

then be taken out and used a law-enforcement duty light, with user-defined mode set in

strobe, making it easy to alternate between turbo mode and strobe with a simple twist of the

flashlight head.

Changing / Charging Battery

Batteries should be replaced or recharged when output appears to be dim or the flashlight

becomes unresponsive.

Maintenance

Every 6 months, threads should be wiped with a clean cloth followed by a thin coating of

silicon-based lubricant.

Warranty Details

Our authorized dealers and distributors are responsible for warranty service. Should any

problem covered under warranty occurs, customers can contact their dealers or distributors in

regards to their warranty claims, as long as the product was purchased from an authorized

dealer or distributor. NITECORE’s Warranty is provided only for products purchased from an

authorized source. This applies to all NITECORE products.

Any DOA / defective product can be exchanged for a replacement through a local

distributor/dealer within the 15 days of purchase. After 15 days, all defective / malfunctioning

NITECORE® products can be repaired free of charge for a period of 60 months (5 years)

from the date of purchase. Beyond 60 months (5 years), a limited warranty applies, covering

the cost of labor and maintenance, but not the cost of accessories or replacement parts.

The warranty is nullified if the product(s) is/are broken down, reconstructed and/or modified

by unauthorized parties, or damaged by batteries leakage.

For the latest information on NITECORE® products and services, please contact a local

NITECORE® distributor or send an email to [email protected].

※All images, text and statements specified herein this user manual are for reference purpose

only. Should any discrepancy occurs between this manual and information specified on

www.nitecore.com. Sysmax Industry Co., Ltd. reserves the rights to interpret and amend the

content of this document at any time without prior notice.

The MH25GT is capable of charging a protected 18650 Li-ion battery via the included USB

cable. Simply install a protected 18650 Li-ion cell, plugging one end of the USB cable into the

flashlight and the other end into a universal USB port / adaptor and the MH25GT will take

care of the rest.

Charging indicator light

1. Connect the charging cable to the flashlight and the A/C power adapter to the wall outlet as

shown in the adjacent image. Fully charging a depleted 18650 battery takes approximately

6 hours.

2. Under normal charging conditions, the red indicator light near the charging port will blink

twice every second.

20160829

Please find us on facebook:

NITECORE Flashlights

SYSMAX Industry Co., Ltd.

TEL: +86-20-83862000

FAX: +86-20-83882723

E-mail: [email protected]

Web: www.nitecore.com

Address： Rm1401-03, Glorious Tower, 850 East Dongfeng Road,

Guangzhou, China 510600

MH25GT
