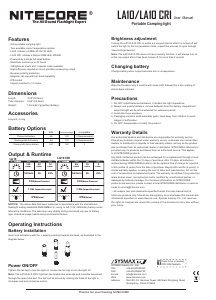

Bruksanvisning Nitecore LA10 CRI Ficklampa

Bruksanvisning

Features

·Ultra-portable camping light

·Two available colour temperature options

·LA10: Utilises a CREE XP-G2 S3 LED

·LA10 CRI: Utilises a Nichia 219B LED, CRI≥90

·Powered by a single AA sized battery

·Maximum runtime up to 23 hours

·3 Brightness levels and 1 special mode available

·High-efficiency regulation circuit provides unwavering output

·Reverse polarity protection

·Magnetic tail cap with tail stand capability

·IPX6 rated

·Impact resistant to 1.5 meter

Dimensions

Length: 3.08”(78.5mm)

Tube diameter: 0.89” (22.6mm)

Weight: 1.51oz(42.7g)(without battery)

Accessories

Lanyard, O-ring

Battery Options

Output & Runtime

NOTICE: The above data has been measured in accordance with the international

flashlight testing standards ANSI/NEMA FL1 using 1x AA (1.2V, 2450mAh) battery under

laboratory conditions. The data may vary slightly during real-world use due to battery

type, individual usage habits and environmental factors.

Operating Instructions

Battery installation

Insert one AA battery with the + polarity pointing towards the head, as illustrated in the

diagram below:

Power ON/OFF

Tighten the tail cap to turn the light on, loosen the tail cap to turn the light off.

Note: The LA10/LA10 CRI’s light bar has lipstick-like extensile and retractile movement

through the open tube end. The bar can be moved by rotating the base of the light in

clockwise and anti-clockwise motion.

®

The All-Round Flashlight Expert

User Manual

Portable Camping light

LA10/LA10 CRI

SYSMAX Industry Co., Ltd.

TEL: +86-20-83862000

FAX: +86-20-83882723

E-mail: [email protected]

Web: www.nitecore.com

Address： Rm1401-03, Glorious Tower, 850 East Dongfeng Road,

Guangzhou, China 510600

20160818

Please find us on facebook:

NITECORE Flashlights

Thanks for purchasing NITECORE!

SIZE

Nominal voltage

Compatible

Primary AA battery

AA 1.5V

Y (Recommended)

Rechargeable AA battery

AA 1.2V

Y (Recommended)

Primary AA Lithium battery

L91 1.5V

Y

Brightness adjustment

Turning the LA10/LA10 CRI on within a 2 second interval after it is turned off will

switch the light to the next available mode, repeat this process to cycle through

“low-mid-high-beacon”.

Note: The LA10/LA10 CRI does not have memory function, it will always turn on

at the low output after it has been turned off for more than 2 second.

Changing battery

Change battery when output becomes dim or unresponsive.

Maintenance

Wipe the threads every 6 months with clean cloth followed by a thin coating of

silicon-base lubricant.

Precautions

1. Do NOT install batteries backward, it renders the light inoperative.

2. Always use quality batteries, remove batteries from the battery compartment

when the light will be left unattended for extensive period.

3. Avoid direct eye exposure

4. Packaging contains small assembly parts, keep away from children to avoid

danger of suffocation.

5. Do NOT disassemble or modify the product.

Warranty Details

Our authorized dealers and distributors are responsible for warranty service.

Should any problem covered under warranty occurs, customers can contact their

dealers or distributors in regards to their warranty claims, as long as the product

was purchased from an authorized dealer or distributor. NITECORE’s Warranty is

provided only for products purchased from an authorized source. This applies

to all NITECORE products.

Any DOA / defective product can be exchanged for a replacement through a local

distributor/dealer within the 15 days of purchase. After 15 days, all defective /

malfunctioning NITECORE® products can be repaired free of charge for a period

of 60 months (5 years) from the date of purchase. Beyond 60 months (5 years), a

limited warranty applies, covering the cost of labor and maintenance, but not the

cost of accessories or replacement parts. The warranty is nullified if the product(s)

is/are broken down, reconstructed and/or modified by unauthorized parties, or

damaged by batteries leakage. For the latest information on NITECORE®

products and services, please contact a local NITECORE® distributor or send an

email to [email protected].

※All images, text and statements specified herein this user manual are for

reference purpose only. Should any discrepancy occurs between this manual and

information specified on www.nitecore.com. Sysmax Industry Co., Ltd. reserves

the rights to interpret and amend the content of this document at any time without

prior notice.

LOW

LA10

LA10 CRI

MID

135

40

10

6h

1h30min

23h

10m(Beam Diameter)

1.5m (Impact Resistant)

IPX6(Rated)

LUMENS

LUMENS

LUMENS

HIGH

MID

LOW

MID

85

30

9

6h

1h30min

23h

10m(Beam Diameter)

1.5m (Impact Resistant)

IPX6(Rated)

LUMENS

LUMENS

LUMENS

HIGH

MID

LOW
