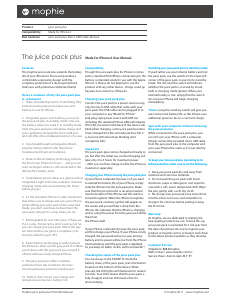

The juice pack plus Made for iPhone 4 User Manual

Product juice pack plus

Compatibility Made for iPhone 4

Box Contents juice pack plus, Micro USB Cable, Manual

Features

The mophie juice pack plus extends the battery

life of your iPhone for hours and provides a

comfortable ergonomic design with the

complete protection of a dual-injected hard

shell case with protective rubberized band.

Here’s a rundown of why the juice pack plus

is so fantastic:

1. (Take a breath) Ergonomic, form-tting, fully

protective ultra-impact-resistant case-and-

battery-in-one for iPhone.

2. Integrated power switch allows you to put

the juice pack plus in standby mode. Only use

the battery when you need it. In standby mode

(red), the juice pack plus still allows charge and

sync capabilities through the micro-USB port

and still oers the completeprotection of a case.

3. Uses breakthrough rechargeable lithium

polymer battery. (Much safer than those

troublesome lithium-Ion batteries).

4. State-of-the-art battery technology extends

the life of your iPhone for hours… and you can

even recharge it while it’s still connected to the

iPhone! This battery rocks.

5. Track battery power status at a glance with an

integrated 4-light LED status indicator. Indicates

charging mode and current battery life. Know

before you go!

6. It’s the included USB micro cable connection

that allows you to charge and sync your iPhone

while relling your juice pack at the same time

Really, you don’t ever have to disconnect the

juice pack, though it’s a snap when you do.

7. Rechargeable for over 500 cycles. (These are

FULL cycles. Partial cycles don’t count as full. So,

you can charge your juice pack 10% of the way

ten times before you get to a complete cycle.

Don’t be afraid to top it o.)

8. Smart battery technology actually instructs

the iPhone to drain out the juice pack rst. When

you’re done with the juice pack you can pull it

o and still have a fully charged iPhone.

9. The juice pack plus oers complete

protection from top to bottom. No more

choosing between protection and power.

10. Built-in short circuit, over-charge and

temperature protection. Safety First!

mophie juice pack plus Printable Manual © mophie 2011 www.mophie.com

Compatibility

Though the juice pack plus for iPhone 4 comes

with a standard iPod/iPhone connection pin, this

battery is intended solely for use with the Apple

iPhone. 4. Please do not attempt to use the

product with any other device - things could go

haywire, but contact us if they do.

Charging your juice pack plus

Connect the juice pack to a power source using

only the micro USB cable that came with your

juice pack. The USB cable can be plugged in to

your computer or any “Made for iPhone”

wall-plug style power source with USB out

including the standard iPhone USB wall adaptor.

(The LEDs located on the back of the device will

blink when charging, as the juice pack becomes

more charged the LEDs will indicate how full it

is, but one LED will remain blinking until

completely full.)

Important

The juice pack plus comes charged and ready to

go, but after the initial use, normal charging will

take only 2 to 3 hours for maximum power

– AND you can then charge it while the iPhone is

inserted or separately.

Charging your iPhone 4 using the juice pack plus

If your iPhone is drained of power or if you want

to extend the battery life of your iPhone, simply

slide the iPhone into the juice pack plus. Make

sure that the pin connector is securely inserted

into the bottom of the iPhone and the switch is

turned On (green). When the iPhone recognizes

the juice pack, a battery symbol will appear on

the screen and you will hear a chirp from the

iPhone, this indicates that the iPhone is charging

and/or using the power from the juice pack rather

than from

the iPhone itself.

If your iPhone is drained of power, the juice pack

will rst charge your iPhone. If your iPhone is fully

charged, the juice pack will act as your primary

battery and no power will be lost from the iPhone

internal battery until the juice pack is depleted.

So you keep on talkin’, rockin’, surn’ and sendin’!

Checking the status of the juice pack plus

You are always in the KNOW! To check the

battery status of the juice pack, press the button

located on the bottom of the device. When

pressed, the LED lights will illuminate for several

seconds. Four LEDs means that the juice pack is

fully charged, and one LED means that it is

almost empty.

Switching your juice pack plus to stand-by mode

If you’d rather use your internal battery and not

the juice pack, use the switch on the lower-left

corner of the juice pack, to put it into stand-by

mode. The dot near the switch will indicate

whether the juice pack is in stand-by mode

(red) or charging mode (green). When your

internal battery is low, simply ick the switch

On and your iPhone will begin charging

immediately.

*Note: Using the stand-by switch will give you

even more total battery life, as the iPhone uses

additional power to be on a constant charge.

Sync with your computer without removing

the juice pack plus

While connected to the juice pack plus, you

can still sync your iPhone with a computer.

Simply connect the included micro USB cable

from the juice pack plus to the computer and

sync your iPhone the same as if it was directly

connected.

To keep your juice pack plus operating to its

fullest potential, make sure to do the following:

1. Keep your juice pack dry and away from

moisture and corrosive materials.

2. Do not wash the juice pack with harsh

chemicals, soaps or detergents. Just wipe the

case with a soft, water-dampened cloth. Wipe

the pins gently with a soft, dry cloth.

3. Re-charge your juice pack once every three

months when not in use, and remember to

charge it for one hour before putting it away

the rst time.

Warranty

At mophie, we are dedicated to making the

best quality products we can. To back this up,

your juice pack is warranted for 1 full year from

the date of purchase. Be sure to register your

product at mophie.com to activate it and check

for the latest product updates as they develop.

Customer Service

Telephone: 888.8mophie

Web Contact: www.mophie.com/cs

Service Hours: 9am to 6pm M-F ET
