1. For additional connection information, refer to the

owner’s manual(s) for any component(s) connected

to the MCT450 SACD/CD Transport.

2. The Super Audio Compact Discs Audio Signals are

available at the Digital Audio Output DIN Connec-

tor. Compact Discs Audio Signals are available at

the Digital Audio Output XRL, Optical, Coaxial

and DIN Connectors.

3. The IR Input, with a 3.5mm mini phone jack, is

configured for non-McIntosh IR sensors such as

a Xantech Model HL85BK Kit. Use a Connection

Block such as a Xantech Model ZC21 when two

or more IR sensors need to be connected to the

MCT450.

5. When discarding the unit, comply with local rules

or regulations. Batteries should never be

thrown away or incinerated but disposed

of in accordance with the local regulations

concerning battery disposal.

6. For additional information on the MCT450 and

other McIntosh Products please visit the McIntosh

Web Site at www.mcintoshlabs.com.

Thank You

Please Take A Moment

Technical Assistance

If at any time you have questions about your McIntosh

product, contact your McIntosh Dealer who is familiar

with your McIntosh equipment and any other brands

that may be part of your system. If you or your Dealer

wish additional help concerning a suspected problem,

you can receive technical assistance for all McIntosh

products at:

McIntosh Laboratory, Inc.

2 Chambers Street

Binghamton, New York 13903

Phone: 607-723-1545

Fax: 607-724-0549

Customer Service

If it is determined that your McIntosh product is in

need of repair, you can return it to your Dealer. You

can also return it to the McIntosh Laboratory Service

Department. For assistance on factory repair return

procedure, contact the McIntosh Service Department

at:

McIntosh Laboratory, Inc.

2 Chambers Street

Binghamton, New York 13903

Phone: 607-723-3515

Fax: 607-723-1917

The serial number, purchase date and McIntosh Dealer

name are important to you for possible insurance

claim or future service. The spaces below have been

provided for you to record that information:

Serial Number: _______________________________

Purchase Date: _______________________________

Dealer Name: ________________________________

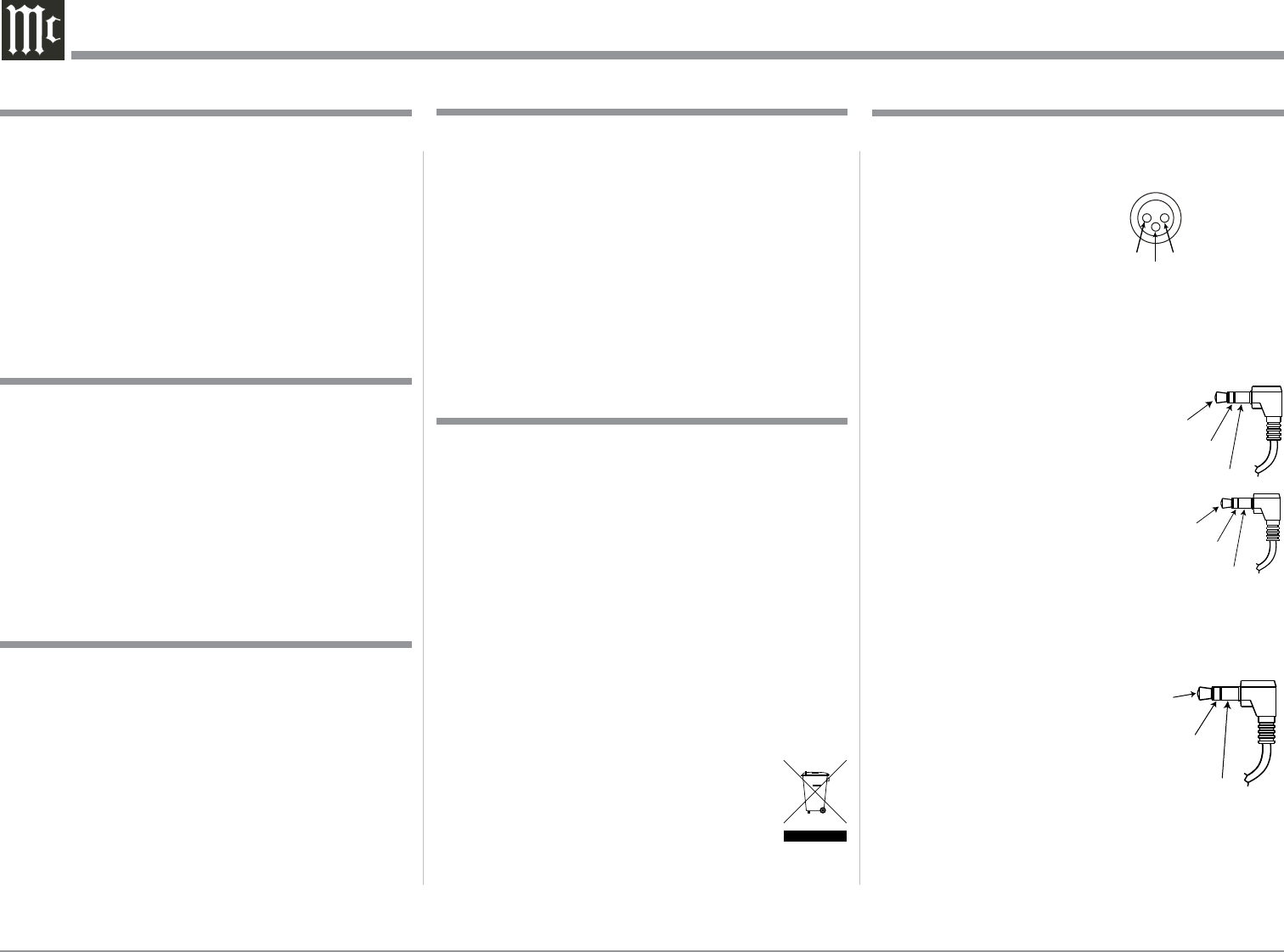

General Information

Connector and Cable Information

Your decision to own this McIntosh MCT450 SACD/

CD Transport ranks you at the very top among

discriminating music listeners. You now have “The

Best.” The McIntosh dedication to “Quality,” is as-

surance that you will receive many years of musical

enjoyment from this unit.

Please take a short time to read the information in

this manual. We want you to be as familiar as pos-

sible with all the features and functions of your new

McIntosh.

XLR Connectors (Digital Audio)

Below is the Pin configuration for the XLR Balanced

Digital Audio Connectors on the MCT450. Refer to

the diagram for connection:

PIN 1: Shield/Ground

PIN 2: + Signal

PIN 3: - Signal

Note: When connecting to the MCT450 Digital XLR

Input and Output connectors it is important to use

a twisted pair shielded cable.

Data and IR Input Port Connectors

The MCT450 Data In Port receives

Remote Control Signals. A 1/8 inch

stereo mini phone plug is used for

connection. The IR Ports also use a

3.5mm stereo mini phone plug and

allow the connection of other brand

IR Receivers to the MCT450.

Power Control Connector

The MCT450 Power Control Input receives an On/Off

signal from +5 to +12 volts. The Power Control Output

will then send out a +12 volt

Output Signal with a total cur-

rent up to 50mA. An additional

connection is for controlling the

illumination of the Power Out-

put Meters. The 3.5mm stereo

mini phone plug connects to a McIntosh Preamplifier

or A/V Control Center Power Control Output.

PIN 1

PIN 2

PIN 3

Data

Signal

N/C

Data

Ground

IR Data

Control

Ground

N/C

Power

Control

Ground

Meter

Illumination

Control

Pass Thru
