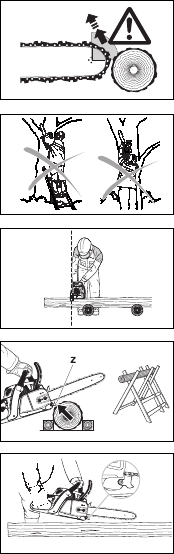

Kickback

- When working with the chain saw dangerous kickbacks may

occur.

- Kickback occurs when the upper part of the end of the guide

bar inadvertently touches wood or other hard objects (10).

- This causes the saw to be thrown back toward the user with

great force and out of control. Risk of injury!

In order to prevent kickback, follow these rules:

- Only specially-trained persons should perform plunge cuts, i.e.,

piercing timber or wood with the tip of the saw!

- Never apply the end of the bar when starting to make a cut.

- Always observe the end of the guide bar. Be careful when

continuing an already started cut.

- When starting to cut the chain must be running.

- Ensure that the chain is always sharpened correctly. Pay special

attention to the height of the depth limiter.

- Never cut several branches at the same time. When cutting a

branch ensure that no other branch is touched.

- When crosscutting a trunk be aware of the trunks next to it.

Working behavior/Method of working

- Only use the chain saw during good light and visibility periods.

Be aware of slippery or wet areas, and of ice and snow (risk of

slipping). The risk of slipping is extremely high when working

on recently peeled wood (bark).

- Never work on unstable surfaces. Make sure that there are no

obstacles in the working area, risk of stumbling. Always ensure

that you have a safe footing.

- Never saw above your shoulder height (11).

- Never saw while standing on a ladder (11).

- Never climb up into trees to perform sawing with the chain

saw.

- Do not work leaning too far over.

- Guide the chain saw in such a way that no part of your body is

within the elongated swivelling range of the saw (12).

- Use the chain saw for sawing wood only.

- Avoid touching the ground with the chain saw while it is still

running.

- Never use the chain saw for lifting up or removing pieces of

wood or other objects.

- Remove foreign objects such as sand, stones and nails found

within the working area. Foreign objects may damage the saw-

ing device and can cause dangerous kickback.

- When sawing precut timber use a safe support (sawing jack,

13). Do not steady the workpiece with your foot, and do not

allow anyone else to hold or steady it.

- Secure round pieces against rotation.

- For cutting down trees or performing crosscuts the spike

bar (13, Z) must be applied to the wood to be cut.

- Before performing a crosscut Þ rmly apply the spike bar to the

timber, only then can the timber be cut with the chain running.

For this the chain saw is lifted at the back handle and guided

with the tubular handle. The spike bar serves as a centre of

rotation. Continue by slightly pressing down the tubular handle

and simultaneously pulling back the chain saw. Apply the spike

bar a little bit deeper and once again lift the back handle.

- When the timber must be pierced for cutting or longitudi-

nal cuts are to be performed it is urgently recommended

to have this carried out by specially trained persons only

(high risk of kickback).

- Do longitudinal - lengthwise - cuts at the lowest possible

angle (14). Be very careful when doing this type of cut, as the

spike bar cannot grip.

- The saw must be running whenever you remove the chain saw

from the wood.

- When performing several cuts the throttle lever must be released

in between.
