4
3
How to install the wall mount
Wall mount
screw
→ If the screw cannot be assembled in the
designated location inevitably, it can be
assembled by rearranging to the closest
location. But, do not change 2 or more locations
from the designated spot.
→ Assemble the wall mount screw on 2 left and 2
right location on the top part and 1 left and 1
right location on the bottom part.
→ At this time, use a + driver (manual or motorized)
or 8 mm wrench to tighten the screw so that the
wall, wall bracket and screw are completely
pressed against one another.
4
How to assemble the wall mount support and display
- Always install the display with 2 or more people.
* Assembling the
wall mounting
bracket, product
and safety clip.
* Caution
- Prevent the power cord from being pinched between the
wall mounting bracket and the set during installation.
(A pinched power cord may cause damage to the product.)
* Locations of the bottom guide spacers
55/65EF9500 ,65EG9600 MODEL 55EG9600/55EG9200 MODEL
Safety clip screw
Safety clip
1. Set the display with the guide spacer assembled on the wall mount bracket on the wall in arrow direction. At this time,
align the bottom assembly part and lift the set up lightly to align the top part.
2. When adjusting the location, assemble the provide safety clip as shown in the picture to prevent the product from
moving. Tighten the safety clip screw completely. If the safety clip is not tightened as shown in the picture, the
product can fall off.
→ Pull on the bottom of the set to make sure the display is secure.
→ When fixing the product with the speaker to the wall, hold and lift up the product, not the speaker.
→ When installing a display rotated, only rotate the display 90 degrees (portrait mode).
→ Make sure to keep a certain level of distance from the wall so that excessive force is not applied on the cable or
accessory.
→ When you push the product with excessive force, the product can be damaged.
INSTALLATION
- The picture may differ from the actual product.
1

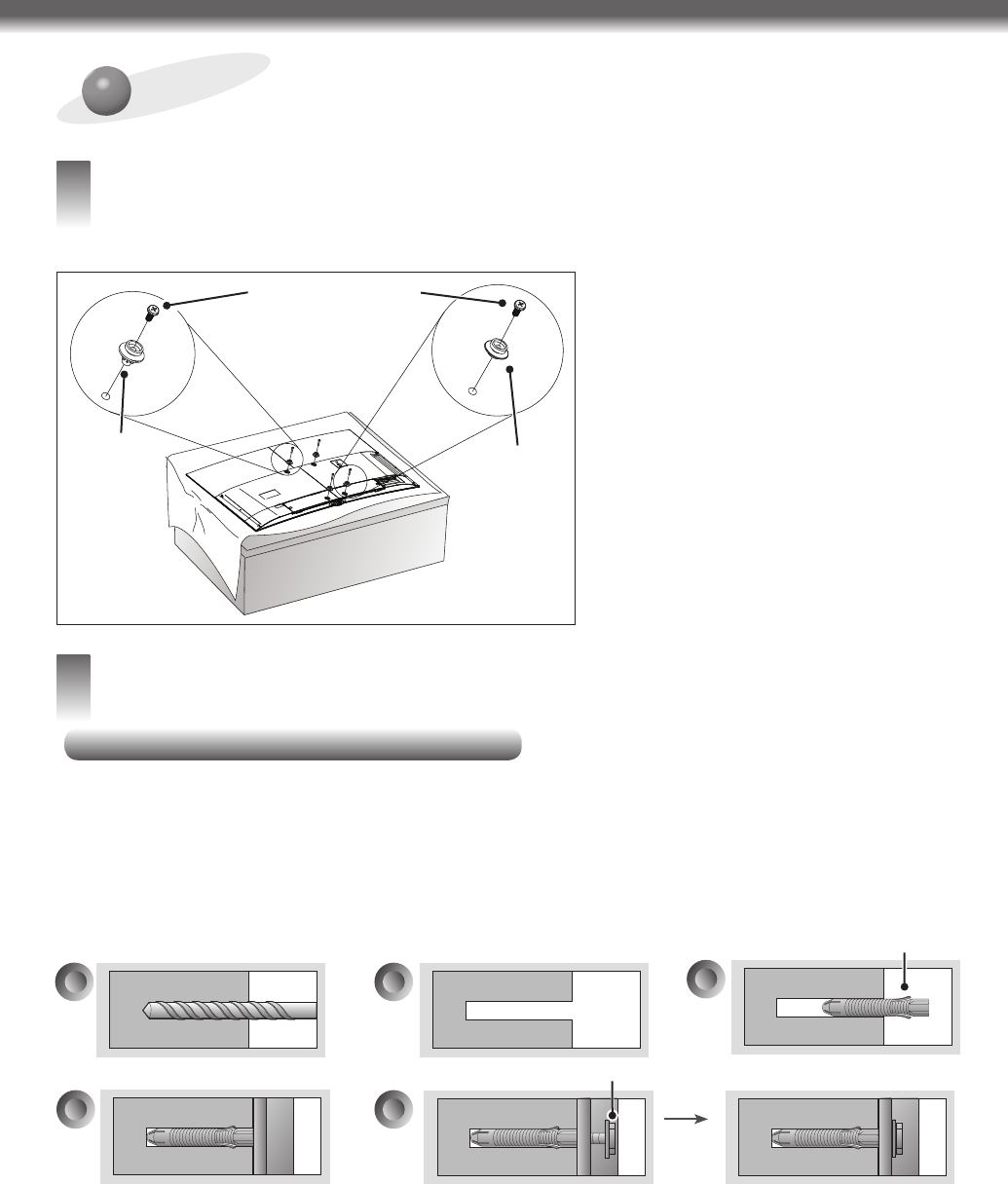

How to Attach the Brackets for the Product to the TV
- If the screw will not fully tighten when using a guide spacer, recheck the assembly depth of the screw and refer to the
technical service manual.
Top guide
spacer
Bottom guide
spacer
Guide spacer screw
- Work procedure
1. Check to see if the display has screws
installed into the mounting holes. If so, remove
those.
2. Assemble the guide spacer and the guide
spacer screw in order as shown in the picture.
- Place the TV on a table with the screen
facing down. Make sure that you place it on
a flat surface covered with a soft cloth or
cushion to protect it from scratches.
- Secure the guide spacers to the TV with the
screws.Assemble the guide spacer to the
set by tightening the screw.Tighten the
screw until the set, guide spacer and the
screw are fully pressing against one
another.
- Use the + driver (manual or motorized)
when tightening the screw.
2
How to attach to masonry walls
Please follow the below direction.
- Check the material of the wall and the thickness of the finishing.
- Use the wall mount anchors for wall material of concrete, light concrete, strong natural stone, soft natural stone
masonry brick and hallow block that do not crack.
- Do not mount the device on the walls made from plasterboard or medium density fiberboard (MDF). In this case, the anchor
and screws must be inserted into the concrete behind the finish surface. If there is no concrete on the other side, then you must
first install a separate hanger to securely install the anchors and screws.
- When installing the product on wall material not designated, install the product so that each location can withstand the pull
out load of 70 kgf (686 N) and shear load of 100 kgf (980 N) or above.
a
b
d e
Wall mount screw
c
Wall mount anchor
- Use the Ø 8 mm drill bit for concrete and hammer (Impact) drill.
a. Use a drill bit Ø 8 mm to drill a hole for the anchor location within a depth of 80 mm - 100 mm.
b. Clean the drilled hole.
c. Insert the sealed wall mount anchor to the hole. (When inserting the anchor, use a hammer.)
d. Set the wall mount on the wall by aligning to the location of the hole. and, set the angle adjusting part to face upward.
e. Align the wall mount screw to the hole and tighten it. Then, fasten the screws at torque of 45 kgf/cm - 60 kgf/cm.
