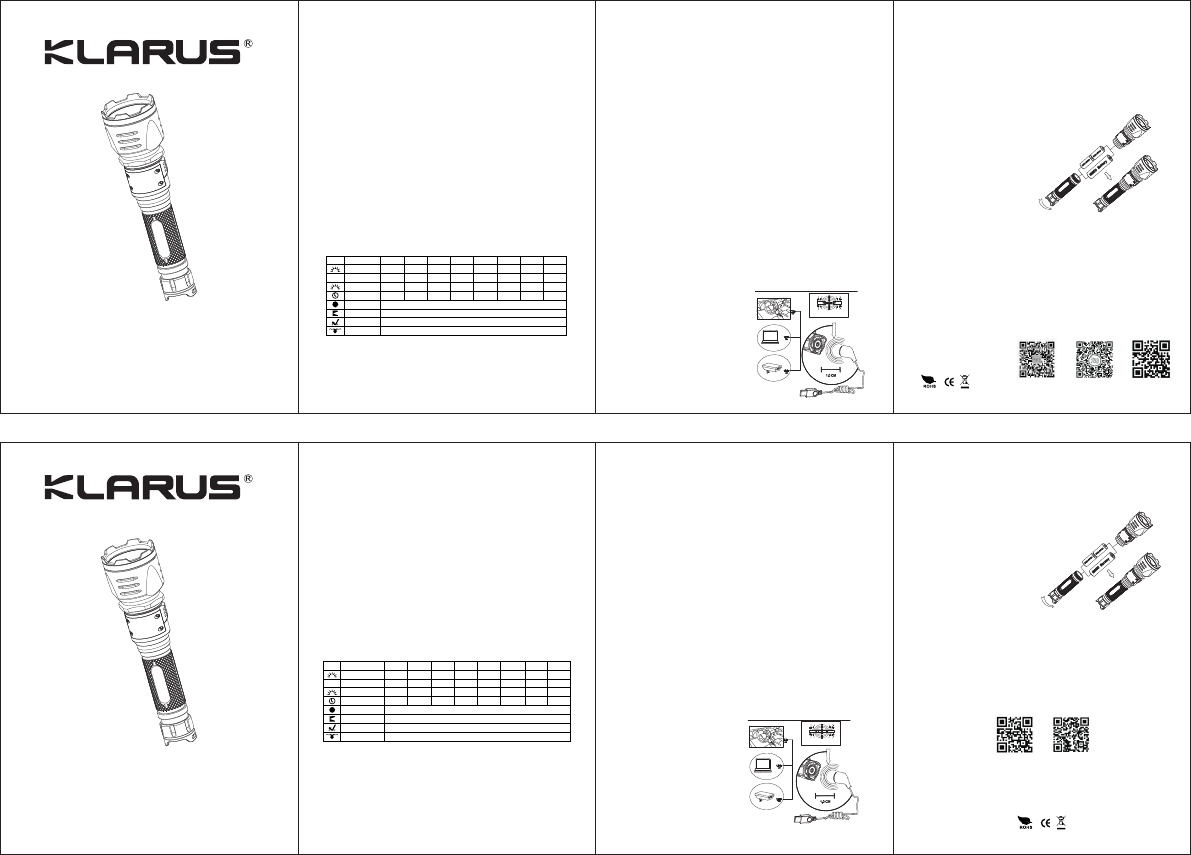

Bruksanvisning Klarus RS20 Ficklampa

Bruksanvisning

RS20

多色 • 高流明 • 远射 • 泛光 • 充电

解放双手的手电筒

•

•

•

•

•

•

•

•

•

备注：以上参数是按照国际手电筒测量标准ANSI/NEMA FL1所述之方法测量所得，所

使用电池为1节KLARUS标配2600mAh 18650电池，实际数据可能会随着不同电池或

使用环境而产生影响。KLARUS是美国手电行业协会(PLATO)的成员，参与制定和优化

ANSI/NEMA Fl1手电标准，产品测试数据标准科学

使用操作

主按键：方形

1)1秒内单击点亮，并锁定照明

2)单击换档，高、中、低、超低 4档循环

自动记忆当前档位，下次开机进入记忆档位；首次开机， 默认高亮档位

3)任何状态下双击进入爆闪， 再次双击进入SOS， 单击退回进入照明档位

4)任何状态下， 长按1秒关机

副按键：圆形

1) )1秒内单击点亮，并锁定照明

2)单击换档，依次进入白光（高）、白光（低）、红光、绿光、蓝光，5档循环

3)副灯关机情况下快速双击进入白灯（高）爆闪档，单击返回原状态

4)副灯点亮的情况下，快速双击进入对应的闪烁模式，白灯对应爆闪、红灯对应SOS、

绿灯对应频闪，单击退回白灯（高）

5)长按1S关机

6)不记忆副灯档位，每次开机进入都是白光（高）

注意：当主副灯同时工作时，其中一个灯进入闪烁模式，另一个灯自动关闭

按键锁定功能

任何状态下，按下任意开关5秒以上进入锁定

功能， 红色侧灯闪烁2次代表锁定成功解锁：

连续单击任意按键3次即可解锁， 红色侧灯闪

烁2次代表解锁成功

充电操作

本手电匹配专用USB充电线，其中USB端口

可适配任何USB供电设备(包括电脑USB，车

载USB，手机适配器USB等)；另一头磁吸接

口，与手电无缝连接(1CM距离内，自然吸

合)；充电结束，轻松拿取，避免大力拉扯充

电线

充电方式

先将充电线USB插头插入电脑或充电器的

充电时间：4.5小时 (KLARUS专用无极性18650 2600mAh电池)

电路工作模式：降压，恒流

表面处理工艺：喷沙+军规三级硬氧军灰色

光杯：主灯光面光杯

镜片：钢化玻璃镜片 镀AR膜

开关类型：橡胶防水开关

尺寸：176mm(长) x25.4mm(身)x45.3mm(头)

重量：裸机190克，标配电池40克

配件：18650电池×1，布套×1，手绳×1，USB充电线×1，O圈×1

充电示意图适用各种环境

车载USB

磁场原理图

电脑USB

居家USB插座

KLARUS RS20

The Complete Profesional Hands-free Flashlight

Cautions

• Charging time should not be more than 24 hours. It is suggested that after the indicator

turns green, the USB charging cable should be disconnected

• If you do not intend to use the flashlight for a long period (i.e. a few months), please

remove the battery to avoid discharge

• If the battery has been stored for a long time, please charge and discharge the battery

once every 3 months in order to prolong the lifespan of the battery

Battery Replacement

Unscrew the tail cap of the flashlight and insert the battery

with positive side toward the light’s head. Screw the tail cap

back on to operate the light

Notice: Use KLARUS custom 18650 battery, without

positive and negative when install battery; Please only

use KLARUS custom 18650 battery for charging

Usage and Maintenance

• Do not shine light directly into eyes

• Remove battery when stored for

extended periods

• Please unscrew the light’s body to

avoid light ON when don’t need work

under emergency situation

• Replace and lubricate O-Rings as

needed to maintain IPX-8 rating

Warranty Service

• KLARUS guarantees the flashlight against defects in material and workmanship. Flashlight

products that are found to be defective under normal use within 5 years of the proof of purchase

date will be repaired or replaced without charge

• This warranty does not cover damage caused by accident, unreasonable use or product alteration.

Failure to follow the general maintenance directions could result in damage to your flashlight that

may not be covered by the KLARUS warranty

• If this flashlight should prove defective, the product will be repaired or replaced, under the above

terms. Please contact KLARUS or your original KLARUS dealer for warranty return instructions

Limited lifetime warranty

If problems develop after 5 years from the date of purchase, KLARUS will charge for parts. The total

repair fee will be assessed according to the cost of the replacement materials. If damage to the light

is substantial, KLARUS will contact the customer via the distributor with a quote. The customer can

then decide whether to proceed with the repairs or not. Freight will be paid by distributor or

customer

Features

• Combines a primary LED with multi-coloured side LEDs to give a 3-in-1 flashlight, lantern & bike light

with long throw beam & diffused flood

• Utilizes a CREE XP-L HI V3 LED as the primary LED, delivering a maximum output of 1050 ANSI

lumens with a deep smooth reflector to throw the beam a maximum distance of 450 metres

• Patented sidelight LED utilizes a CREE XM-L colour LED with White, Red, Green, and Blue light to

produce a diffused flood for close-up lighting. Can be used as a lantern or area light, freeing your

hands

• In addition to providing a floodlight, the side LED also has a red SOS function, and a green Flash

mode

The red SOS signal is the international standard rescue signal, but could also be used as a caution

or danger signal

The green flashing mode could be used as a location beacon, delivering a long runtime

• Specially designed magnetic connection USB charging cable which can be removed quickly and

safely at any time, making for effective use in rapid response situations

• Magnetic connection has built in short-circuit protection which makes it safer

• New ergonomic design for simple one-handed operation with switches that are very easy to locate in

the dark

• Custom KLARUS 2600mAh 3.7V rechargeable Li-ion battery utilizes a Samsung cell with a unique

contact design having no specific positive or negative pole

• The flashlight charger utilizes a standard USB charging port and provides intelligent charging

function that adjusts the charging current according to the output from the USB to give the flashlight

self-protection. Can be recharged at any available USB charging port in the home , office, airport,

vehicle, etc

• Crenelated Stainless Steel bezel ring protects the core components from damage

• User memory function

• Waterproof to IPX-8 Standard (underwater to 2 metres)

Primary

Specification

• LED: LED uses CREE XP-L HI V3 LED; Side LED uses CREE XM-L color LED

• 4 output levels plus 2 flashing with primary LED, and 5 output levels, 4 colors light, plus 3 flashing

with side LED

• Working Voltage: 3.0V - 8.4V

• Compatibility Battery: 2x CR123A / 1x 18650 (any 18650 battery with PCB protected), and

supplied custom 18650

• *Warning: Please ONLY use KLARUS custom 18650 battery for recharging, any 18650

battery with PCB protection or CR123A battery may be used in emergency,but cannot be

recharged, you must take out the non-approved rechargeable battery to recharge it. (And do

not use 16340 battery!)

• Charging: Input: 5 V; Output 4.2V/1000 mA Max

• Charging time: up to 4.5 hours

• Body color: Dark grey

• Reflector: Smooth reflector for primary LED

• Lens: Toughened ultra-clear glass

• Dimensions: 176mm (Length) x 25.4mm (Body) x 45.3mm (Head)

• Net weight: 190g (Excluding battery)

Charging Sketch Map for Various Environments

Vehicle

PC/laptop

Mains Socket

Magnetic Field Principle Diagram

• Included accessories: KLARUS Custom 18650 battery*1, Holster*1, Lanyard*1, USB charging

cable*1, Spare o-ring*1

Notice: The above data has been measured in accordance with international flashlight testing

standards ANSI/NEMA FL1 using one 3.7V 2600mAh battery under laboratory conditions. The data

may vary slightly during real-world use due to battery type, individual usage habits and

environmental factors. KLARUS is a member of PLATO, participating in and helping to develop the

ANSI/NEMA FL1 standard of measurement. Product testing data is in accordance with these

internationally recognized scientific standards.

Operation

A: SQUARE Black switch (Control main light)

• While OFF: Click the switch to turn on

• While ON: Click the switch to change Mode.(High/Med/low/super-low)

• While ON: Double click to activate strobe, double click again to activate SOS；Click the same

button while the strobe/SOS is on to return to previous lighting mode

• While ON: Long press (with 1 second ) the switch for OFF

B: ROUND Orange switch (Control diffused sidelight)

• While OFF: Click the switch to turn on

• While ON: Click the switch to change MODE (White-high/White-low/Red/Green/Blue)

• While OFF: Fast double-press to activate STROBE in white, press the switch again to OFF

• While ON: Long depress (within 1 second) switch for OFF

• While ON(white light): Fast double-press to activate STROBE in white

• While ON(red light): Fast double-press to activate SOS in red

• While ON(green light): Fast double-press to activate flash in green

• While any flash mode from ON: Press the switch again to return to white-high

Notice: Both LEDs can be operated simultaneously except in flash mode. When either of them

enters into flash mode, the other LED will be off automatically

C: Memory function

• Primary LED: When a lighting mode is on for more than 1 second, the mode will be memorized. The

device will return to that mode when next turned on

• Side LED: No memory function, will always activate white-high first when switching on

D: Lock-function

Depress and hold down the switch for 5 seconds (from ANY Mode, any switch) UNTIL the RED

Lights flickers twice. The flashlight is now locked

To unlock the flashlight, depress the switch three times in quick succession and the RED light will

again flicker twice to indicate that it is active

Charging Operation

RS20 uses KLARUS USB charging cable ,

which can be used with any USB power

supply (including PC USB, vehicle USB,

cell phone USB, etc.). The charging cable

is connected to the RS20 flashlight with a

magnetic connector, when charging is

complete, simply disconnect cable

Charging Indicator

When being charged, the LED charger

light turns red, when charging is complete

the LED charger light turns green. No

charger light indicates that there is no

power

*Warning : The KLARUS RS20 requires the

use of approved batteries to charge correctly.

When using other type 18650 or CR123A

batteries with PCB protection, the indicator

light will illuminate red, but the battery will not

charge. If charging without any battery, the light

will illuminate green, and the battery will not charge

USB插座，后将磁性接头吸住手电尾部的磁性接口

充电指示

充电中，指示灯为红灯；充满电后，指示灯为绿灯；不充电时，灯不亮

非标配18650或CR123A电池连接充电时指示灯显示红灯，不可进行充电

无电池连接充电时指示灯显示绿灯，不可进行充电

充电注意事项

充电时间不要超过24小时，建议在绿灯亮后1小时内断开充电口

长时间不用手电，请取出电池，以免发生电池漏液

长时间存放充电电池，建议每3个月进行一次充放电操作，以延长电池使用寿命

电池更换

特别说明：使用KLARUS专用18650电池，

安装无需区分正反；如需使用充电功能，

必须使用KLARUS专用18650锂离子电池！

•

•

•

•

•

•

•

•

•

使用及维护

• 为达到最佳防水性能，请定期

检查防水O圈的完整性，并请适

量涂抹润滑硅脂于防水O圈上以

延长其使用寿命。如O圈损坏，

请及时更换原厂O圈以确保您所

使用之产品的优异防水性能

请勿将手电筒的光线直接照射人类或动物的眼睛

手电筒不用时，可将筒身扭松，避免误操作

长时间不使用手电筒时，请将电池取出，并妥善存放

保修

15天保换期：自售出之日起15天内，在正常使用情况下，出现产品质量问题，客户

可选择更换新品或维修服务，要求更换时，所换产品应为返修产品同型号同规格的新

品；如同型号同规格的产品停止生产时，则调换不低于原产品性能的同品牌产品

5年免费保修期：自售出之日起5年内，用户在正常使用情况下，出现产品质量问题，

可享受免费维修服务

终身有限保修：超过5年免费保修期外，提供有偿保修，费用以实际更换材料费用为

准，不另收取人工费

特点

• 主副灯式设计，远射和泛光二合一，手电、营地灯、自行车灯三合一，实现一支手电

多种功能

• 主灯采用CREE X LED 超高亮1050流明，大口径深光杯，超强聚光远射 ,

最大射程450米

• 专利独创侧面副灯，采用CREE XM-L彩色LED，白、红、绿、蓝四色光合一，近距离

泛光照明，彻底解放双手

• 副灯还有独特白光爆闪、红灯SOS、绿灯频闪功能，满足用户各种需求

红灯SOS为国际标准救援信号，并可提示前方危险，不宜前进

绿光频闪可作为营地灯等信号灯使用，超长时间闪烁

• 专利磁吸式充电设计，磁铁互吸充电接驳；充电接口靠在近1CM距离内快速对位，

• 即拿即用，勿需拆装；磁吸充电，不会短路，安全放心

• 全新人体工学高低差双开关设计、操作面大；黑夜中准确定位，完全单手操作，彻

底避免按键误操作

• 内置KLARUS专用无极性、带保护电路18650 2600mAh锂离子电池，采用进口三

星电芯，独特接触面设计，安装电池无正反、不分极性，安全省心

• USB可充电接口设计，手电具有智能充电功能，能够根据USB设备的电流输出能力自

动调整充电电流，防止损坏，机场、火车站、饭店、车载及任何有USB接口的地方都

可充电

• 低线损，高强度，轻巧便携USB充电线

• 尾部环状充电指示更直观

• 多档位带记忆功能，兼并各种使用需求，满足个人喜好

• 灯头不锈钢头压圈设计，更好的保护核心部件

• 可尾部倒立将手电做营地灯使用

• 防水IPX-8设计，水下2米标准，可在暴雨中正常使用

规格

•

• 主灯具有4种亮度及2种闪烁模式， 副灯具有4种颜色光，5种亮度及3种闪烁模式

•

P-L HI V3 ，

LED: 主灯使用CREE XP-L HI V3 LED，副灯使用CREE XM-L Color LED

• 工作电压 3.0V-8.4V

• 可兼容电池：CR123A电池×2，18650电池(带保护电路)×1

• 特殊说明：充电只可以使用KLARUS专用18650锂离子电池

其它带保护电路18650电池或CR123A电池可以使用照明，但不能直接充

电，如需充电时须将电池取出充电。(禁止使用16340电池)

充电：输入5V，输出4.2V/1000mA MAX

KLARUS LIGHTING TECHNOLOGY CO., LIMITED

Longhua District,Shenzhen City,Guangdong

Province,518109,China

www.klaruslight.com

Email:info@klaruslight.com

Phone:+86-755-27700110

3/F,No.19,Chilingtou Industrial Park,Bulong Road,

Website Facebook

深圳市凯瑞兹电子科技有限公司

邮编：518109

电话：+86-755-27700110

网站：www.klaruslight.cn

：

深圳市龙华新区大浪街道赤岭头新村赤岭路19号3楼

邮箱 info@klaruslight.com

关注微信

直接购买

进入官网

Item( light)Primary

Item(Side light)

ANSI l umens (LM)

ANSI l umens (LM)

Runt ime(h)

Peak b eam intensity (cd)

Max be am distance(m )

Impa ct resistance (m)

Waterproof

Whit e-High

Flash

50625

450

1

IPX8(under water 2m)

1050

200

345

65

10

90

1050

200

2.7

7.0 110 5.0

SOS

1

982

1050

6.0

High

Med Low Moon light

170

27

90

170

Whit e-Low Red- flood Gree n- flood

Blue -flood Whit e-strobe

Red- SOS

Gree n-flash

高亮

低亮

爆闪

白光爆闪

50 625

45 0

1

IPX8(水下 2m)

10 50

20 0

34 5

65

10

90

10 50

20 0

2. 7

7. 0 110 5. 0

SO S

1

98 2

10 50

6. 0

高亮

中亮 低亮 月光

项目(主灯)

项目(副灯)

亮度(LM)

亮度(LM)

续航时间(h)

最高光强度(cd)

高亮档射程(m)

防跌落(m)

防水级别

红光 绿光

红灯S OS

绿灯警示闪烁

17 0

蓝光

27

90

17 0

Betyg

Mer om denna bruksanvisning

Vi förstår att det är trevligt att ha en pappersbruksanvisning för din Klarus RS20 Ficklampa. Du kan alltid ladda ner bruksanvisningen från vår hemsida och skriva ut den själv. Om du vill ha en originalbruksanvisning rekommenderar vi att du kontaktar Klarus. De kanske kan tillhandahålla en originalbruksanvisning. Letar du efter bruksanvisningen för din Klarus RS20 Ficklampa på ett annat språk? Välj ditt föredragna språk på vår hemsida och sök efter modellnumret för att se om vi har det tillgängligt.

Specifikationer

Alla bruksanvisningar för Klarus Ficklampor
Fler bruksanvisningar för Ficklampor

Vanliga frågor om Klarus RS20 Ficklampa

Vårt supportteam söker efter användbar produktinformation och svar på vanliga frågor. Om du hittar en felaktighet bland våra vanliga frågor uppskattar vi om du meddelar oss detta via vårt kontaktformulär.

Relaterade produkter

Bruksanvisning

Klarus XT11S Ficklampa

Bruksanvisning

Klarus AR10 Ficklampa

Bruksanvisning

Klarus FH10 Ficklampa

Bruksanvisning

Klarus XT2C Ficklampa

Bruksanvisning

Klarus G35 Ficklampa

Bruksanvisning

Klarus G30 Ficklampa

Bruksanvisning

Klarus FL1A Ficklampa

Bruksanvisning

Klarus ST12 Ficklampa

Relaterade kategorier
