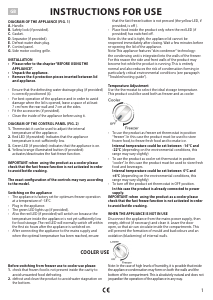

INSTRUCTIONS FOR USE

1

GB

DIAGRAM OF THE APPLIANCE FIG. 1

A. Handle.

B. Safety lock (if provided).

C. Gasket.

D. Separator (if provided).

E. Defrost water drain plug.

F. Control panel.

G. Side motor cooling grille.

INSTALLATION

• Please refer to the chapter “BEFORE USING THE

APPLIANCE”.

• Unpack the appliance.

• Remove the 4 protection pieces inserted between lid

and appliance.

• Ensure that the defrosting water drainage plug (if provided)

is correctly positioned (4).

• For best operation of the appliance and in order to avoid

damage when the lid is opened, leave a space of at least

7cm from the rear wall and 7 cm at the sides.

• Fit the accessories (if provided).

• Clean the inside of the appliance before using it.

DIAGRAM OF THE CONTROL PANEL FIG. 2

1. Thermostat: it can be used to adjust the internal

temperature of the appliance.

2. Red LED (if provided): Indicates that the appliance

temperature is not suciently low.

3. Green LED (if provided): indicates that the appliance is on.

4. Yellow/orange illuminated button (if provided):

activates/deactivates the fast freeze function.

IMPORTANT: when using the product as a cooler please

check that the fast freeze function is not activated in order

to avoid bottle cracking.

The exact conguration of the controls may vary according

to the model.

Switching on the appliance

• The appliance is factory set for optimum freezer operation

at a temperature of -18°C.

• Plug in the appliance.

• The green LED lights up (if provided).

• Also the red LED (if provided) will switch on because the

temperature inside the appliance is not yet suciently low

for food storage. The red LED will normally switch o within

the rst six hours after the appliance is switched on.

• After connecting the appliance to the mains supply and

when the optimal temperature has been reached, ensure

that the fast freeze button is not pressed (the yellow LED, if

provided, is o ).

• Place food inside the product only when the red LED (if

provided) has switched o .

Note: As the seal is tight, the appliance lid cannot be

reopened immediately after closing. Wait a few minutes before

re-opening the lid of the appliance.

Note:This appliance features “skin condenser” technology:

the condensing unit is integrated into the walls of the freezer.

For this reason the side and front walls of the product may

become hot while the product is running. This is entirely

normal and also reduces the risk of condensation forming in

particularly critical environmental conditions (see paragraph

“Troubleshooting guide”).

Temperature Adjustment

Use the thermostat to select the ideal storage temperature.

This product could be used both as freezer and as cooler.

•

To use the product as freezer set thermostat in position

“freezer”. In this case the product must be used to store

frozen food, to freeze fresh food and to make ice.

Internal temperature could be set between -14°C and

-22°C (depending on the environmental conditions, this

range may vary slightly)

• To use the product as cooler set thermostat in position

“cooler”. In this case the product must be used to store fresh

food and beverages.

Internal temperature could be set between 0°C and

+6°C (depending on the environmental conditions, this

range may vary slightly)

• To turn o the product set thermostat in OFF position.

In this case the product is already connected to power

supply.

IMPORTANT: when using the product as a cooler please

check that the fast freeze function is not activated in order

to avoid bottle cracking.

WHEN THE APPLIANCE IS NOT IN USE

Disconnect the appliance from the mains power supply, then

empty, defrost (if necessary) and clean it. Leave the door

open, so that air can circulate inside the compartments. This

will prevent the formation of mould and bad odours and an

oxidation (blackening) of internal walls.

COOLER USE

Before switching from freezer use to cooler use please:

1. check that frozen food is not present inside the cavity to

avoid unwanted food defrosting.

2. defrost and clean the product to avoid water stagnation on

the bottom.

Note: In the case of high levels of humidity, it is possible that inside

the appliance condensation may form on both the walls and the

bottom of the compartment. This is absolutely natural and does not

jeopardise the operation of the appliance in any way.
