Bruksanvisning Indesit IP 641 S (IX) AUS Häll

Bruksanvisning

AUS

4

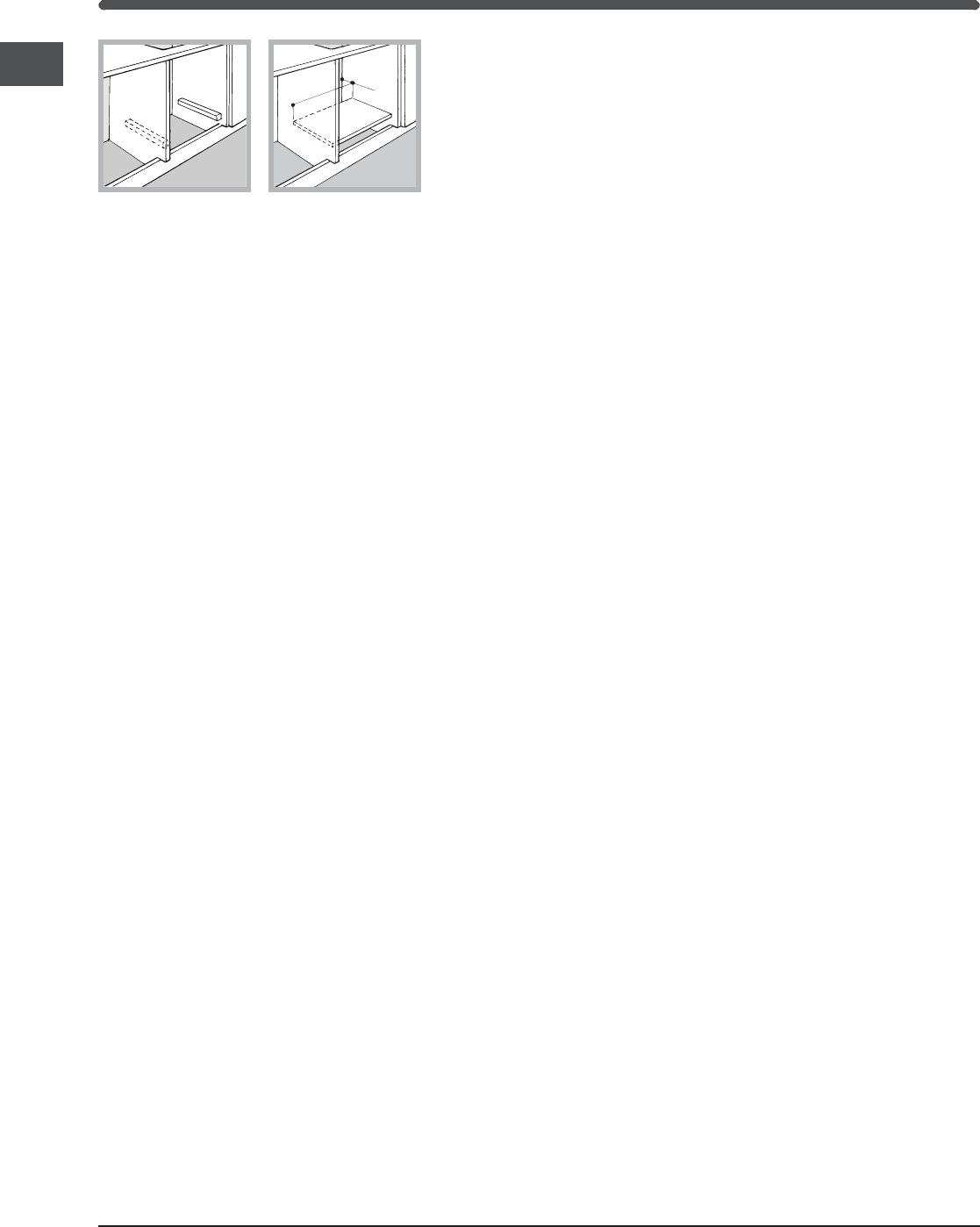

Electrical connection

Hobs equipped with a three-pole power supply cable are

designed to operate with alternating current at the voltage

and frequency indicated on the data plate (this is located

on the lower part of the appliance). The earth wire in the

cable has a green and yellow cover. If the appliance is to

be installed above a built-in electric oven, the electrical

connection of the hob and the oven must be carried out

separately, both for electrical safety purposes and to

make extracting the oven easier.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load

indicated on the data plate.

The appliance must be directly connected to the mains

using an omnipolar circuit-breaker with a minimum contact

opening of 3 mm installed between the appliance and the

mains. The circuit-breaker must be suitable for the charge

indicated and must comply with current electrical

regulations (the earthing wire must not be interrupted by the

circuit-breaker). The supply cable must not come into

contact with surfaces with temperatures higher than 50°C.

 The installer must ensure that the correct electrical

connection has been made and that it is compliant with

safety regulations.

Before connecting to the power supply, make sure that:

 The appliance is earthed and the plug is compliant with

the law.

 The socket can withstand the maximum power of the

appliance, which is indicated on the data plate.

 The voltage is in the range between the values indicated

on the data plate.

 The socket is compatible with the plug of the appliance. If

the socket is incompatible with the plug, ask an

authorised technician to replace it. Do not use extension

cords or multiple sockets.

 Once the appliance has been installed, the power supply

cable and the electrical socket must be easily accessible.

 The cable must not be bent or compressed.

 The cable must be checked regularly and replaced by

authorised technicians only (see Assistance).

 The manufacturer declines any liability should these

safety measures not be observed.

Gas connection

Check The Gas Type

 Before installation, check that the gas type (natural

gas or LPG/Propane) of the cooker is suitable for the

gas type available to the installation. It is extremely

dangerous to use the wrong gas type with any

appliance, as fire or serious injury can result.

This cooker is supplied from the factory already set

for Natural Gas. To convert the cooker to LPG (or

back to Natural Gas from LPG), follow the directions

later in this section.

Fit regulator supplied for Natural Gas (if applicable)

at rear of appliance, and as close as practicable to

the appliance.

It is recommended that an isolating valve and union

be fitted, to enable simple disconnection for

servicing. These are to be in an accessible location.

 Check that the pressure of the gas supply is consistent

with the values indicated in Table 1 (Thecnical

specifications). This will ensure the safe operation and

longevity of your appliance while maintaining efficient

energy consumption.

Pipe or Hose Connection

This appliance is suitable for use with either a

flexible connection or rigid copper connection.

Either a rigid metal pipe with fittings in compliance

with the standards in force must be used for

connecting to the nipple union (threaded ½G male

fitting) situated at the rear of the appliance to the

right (fig.8), or an approved flexible hose of class B

or D.

Should it be necessary to turn the fitting, the gasket

(supplied with the appliance) must be replaced.

If a flexible hose is used, it should be as short as

possible with a maximum length of 1.5 metres;

 The flexible connection must be approved to

class B or D of AS/NZS1869 as a minimum.

 it should not be bent, kinked or compressed;

 it should not be in contact with the rear wall of the

appliance or in any case with parts which may

reach a temperature of 50°C;

 it should not come into contact with pointed parts

or sharp corners;

 it should not be subject to any pulling or twisting

forces;

 it should be easy to inspect along its entire length

in order to be able to check its condition.

 The supply connection point must be accessible

with the appliance installed.

 The inner diameters of the pipe are as follows:

8 mm for LPG;

13 mm for Natural Gas.

560 m

m

.

45 mm.
