Where to install the tumble dryer

• Install the dryer far

from gas ranges, stoves,

radiators or hobs, as

flames may damage it.

If the dryer is installed

below a worktop, en-

sure there are 10 mm

between the upper

panel of the dryer and

any objects above it,

and 15 mm between the sides of the machi-

ne and the walls or furniture units adjacent

to it. This ensures adequate air circulation.

The appliance must be installed with the rear

surface placed against a wall.

Ventilation

• The room must be adequately ventilated while the dryer is

running. Make sure that the dryer is installed in a room free

of humidity and with adequate air circulation. The flow of air

around the dryer is essential to allow water to condense du-

ring drying; the dryer will not function properly if it is placed

in an enclosed space or inside a cabinet.

! Some condensation may form if the dryer is used in a small

or cold room.

!

We do not recommend that the dryer is

installed in a cupboard but the dryer must never

be installed behind a lockable door, a sliding

door or a door with a hinge on the opposite

side to that of the dryer door.

Water drain

If your dryer is installed next to a drain the water can be

plumbed into this drain. This does away with the need to

empty the water container. If the dryer is stacked onto or

installed next to a washing machine it can share the same

drain. The height of the drain must be less than 3’ (1 m) from

the bottom of the dryer.

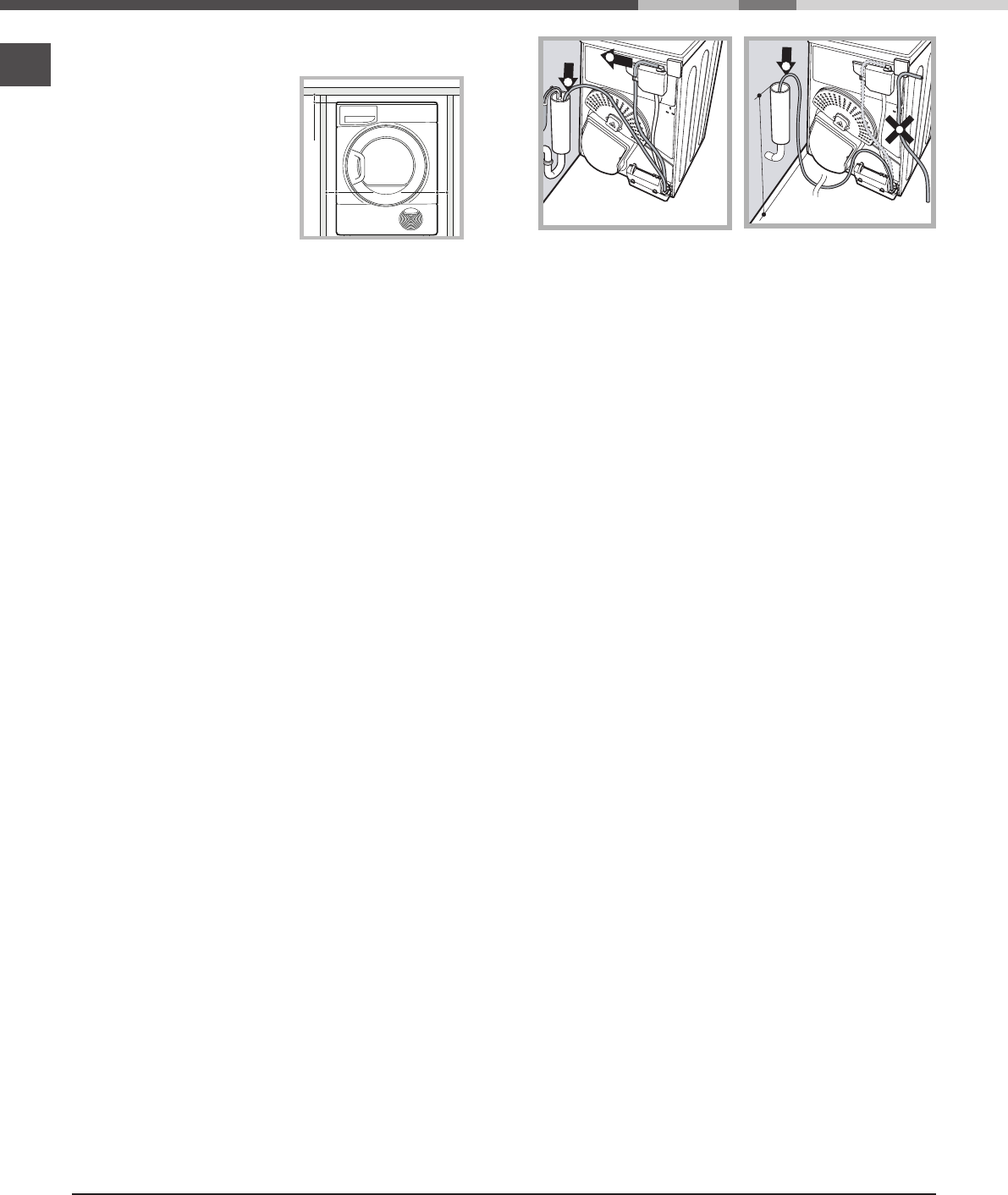

Remove existing hose from position shown in picture A and fit

a suitable length of hose and connect as shown in picture B.

! Make sure that the hose is not squashed or kinked

when the dryer is in its final location.

Electrical connections

Before plugging the appliance into the socket,

check the following:

• Make sure your hands are dry.

• The socket must have an earth connection.

• The socket must be able to withstand the

machine’s maximum power output as indi-

cated on the rating plate (see Description

of the tumble dryer).

• The power supply voltage must fall within

the values indicated on the data plate (see

Description of the tumble dryer).

• The socket must be compatible with the

dryer’s plug. Should this not be the case,

replace the plug or the socket.

! DO NOT use extension cords.

! The dryer must not be installed outdoors,

even if the space is sheltered. It can be very

dangerous if exposed to rain or storms.

! Once installed, the dryer’s electrical wire

and plug must be within reach.

! The power cord must not be bent or

squashed.

! The power cord is supplied fitted with a

BS1363 plug and with a 13 amp BS1362 fuse.

If it is necessary to fit a replacement fuse, it must

be a 13 Amp ASTA approved to BS1362 type.

WARNING: The plug must not be used without

a fuse cover. If a replacement fuse holder/cover

is required, it must be of the same colour coding

or wording as shown on the base of the plug.

Replacements are available from authorised

dealers.

Changing the plug

The wires in the power cord are coloured in

accordance with the following.

! If the plug being replaced is a non-rewirable

type, then the cut-off plug must be disposed of

safely. DO NOT leave it where it can be inserted

into a socket and create a shock hazard.

1

2

2

1

Less than 1m

Picture A

Picture B

Moulded plug

GREEN &

YELLOW

BROWN

BLUE

13 ampere fuse

CROSS-BAR

CORD GRIP

Green and Yellow (Earth)

wire to terminal marked

“E”, symbol x, or coloured

green and yellow.

Blue (Neutral) wire to

terminal marked ”N” or

coloured black.

13A ASTA approved fuse

to BS 1362.

Brown (live) wire to

teminal marked “L” or

coloured red.

10 mm

15 mm

15 mm

! The power cord must be regularly checked.

If the supply cord is damaged, it must be re-

placed by the manufacturer, its service agent

or similarly qualified persons in order to avoid

a hazard. (see Assistance). New or longer

electric cords are supplied by authorised

dealers at a supplementary cost.

! The manufacturer denies any responsibility

should any of these rules not be followed.

! If in doubt about any of the above

consult a qualified electrician.

Preliminary information

Once the tumble dryer is installed, clean the inside of the

drum before operating it and remove any dirt accumulated

during transportation.
