Bruksanvisning Hotpoint FDL 754 P UK Kombinerad tvätt-tork

Bruksanvisning

GB

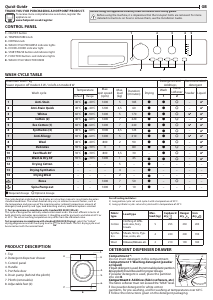

Quick Guide

THANK YOU FOR PURCHASING A HOTPOINT PRODUCT.

To receive more comprehensive assistance, register the

appliance on

www.hotpoint.co.uk/register

Before using the appliance carefully read the Health and Safety guide.

Before using the machine, it is imperative that the transport bolts are removed. For more

detailed instructions on how to remove them, see the Installation Guide.

CONTROL PANEL

PRODUCT DESCRIPTION

1.

3.

2.

5.

4.

7.

6.

8.

1. Top

2. Detergent dispenser drawer

3. Control panel

4. Handle

5. Porthole door

6. Drain pump (behind the plinth)

7. Plinth (removable)

8. Adjustable feet (2)

DETERGENT DISPENSER DRAWER

Compartment *:

Do not insert detergent in this compartment.

Compartment 1: Washing detergent (powder

or liquid)

If liquid detergent is used, the removable plastic partition

A (supplied) should be used for proper dosage.

If powder detergent is used, place the partition

into slot B.

Compartment 2: Additives (fabric softeners, etc.)

The fabric softener must not exceed the “MAX” level.

! Use powder detergent for white cotton

garments, for pre-washing, and for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

1

2

A

B

*

WASH CYCLE TABLE

1. ON/OFF button

2. TEMPERATURE knob

3. DRYING knob

4. WASH CYCLE PROGRESS indicator lights

5. DOOR LOCKED indicator light

6. START/PAUSE button and indicator light

7. FUNCTION buttons and indicator lights

8. WASH CYCLE SELECTOR KNOB

Maximum load 7 kg

Power input in o mode 0.5 W / in left-on mode 8 W

Detergents and

Additives

Recommended

detergent

Wash cycle

Temperature

Max.

spin speed

(rpm)

Max.

load

(kg)

Duration

(minutes)

Drying

Wash

Fabric

softener

Powder Liquid

Default Range

1 2

1 Anti-Stain 40°C

- 40°C 1400 5 185

  

–



2 Anti-Stain Quick 40°C

- 40°C 1200 4,5 60

  

–



3 Whites 60°C

- 90°C 1400 5 170

    

4 Cotton (2) 40°C

- 60°C 1400 7 220

  

–



5 Eco Cotton (1) 60°C

- 60°C 1400 7 240

    

6 Synthetics (3) 40°C

- 60°C 1000 4,5 125

  

–



7 Anti Allergy 60°C

- 60°C 1400 5 210

    

8 Wool 40°C

- 40°C 800 2 90

  

–



9 Delicates 30°C

- 30°C 0 1 80

  

–



10 Fast Wash 30’ 30°C

- 30°C 800 3,5 30 –

 

–



11 Wash & Dry 45’ 30°C

- 30°C 1400 1 45

  

–



12 Drying Cotton – – – 5 –



– – – –

13 Drying Synthetics – – – 4 –



– – – –

14 Drying Wool – – – 2 –



– – – –

Rinse – – 1400 7 50



–



– –

Spin+Pump out – – 1400 7 10



– – – –



Required dosage  Optional dosage

1

8

3

5

6

7

4

2

For all testing institutes:

2) Long cotton cycle: set wash cycle 4 with a temperature of 40°C.

3) Long synthetics cycle: set wash cycle 6 with a temperature of 40°C.

The cycle duration indicated on the display or instruction manual is an estimate based on

standard conditions. The actual duration may vary in relation to several factors, such as

the temperature and pressure of the incoming water, ambient temperature, amount of

detergent, load quantity and type, load balancing and any additional options selected.

1) Test programme in compliance with standard EN 50229 (Wash):

This cycle is designed for normally soiled cotton loads and is the most ecient in terms of

both electricity and water consumption; it should be used for garments washable at 60°C or

at 40°C. The actual washing temperature may dier from the indicated value.

Test programme in compliance with standard EN 50229 (Drying): select the “Cotton”

drying programme and set the drying level to “ ”, for both loads. The rst drying cycle must

be carried out with the nominal load.

Fabric

type

Load type

Max.

load (kg)

Cupboard

dry

Henger

dry

Iron

dry

Cotton

Clothing of di e-

rent sizes, Terry

towels

5 255 230 200

Synthe-

tics

Sheets, Shirts, Pyja-

mas, socks, etc.

4 220 200 190

Wool Knitwear, Pullovers. etc. 2 210 190 180
