Bruksanvisning

GB

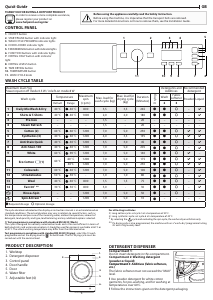

Quick Guide

CONTROL PANEL

1. ON/OFF button

2. START/PAUSE button with indicator light

3. WASH CYCLE PROGRESS indicator lights

4. DOOR LOCKED indicator light

5. STAIN REMOVAL button with indicator lights

6. FUNCTION buttons with indicator lights

7. DRYING ONLY button with indicator

light

8. DRYING LEVELS button

9. TIME DRYING button

10. TEMPERATURE button

11. WASH CYCLE knob

WASH CYCLE TABLE

THANK YOU FOR BUYING A HOTPOINT PRODUCT

In order to receive a more complete assistance,

please register your product on

www.hotpoint.eu/register

Before using the appliance carefully read the Safety Instruction.

Before using the machine, it is imperative that the transport bolts are removed.

For more detailed instructions on how to remove them, see the Installation Guide.

PRODUCT DESCRIPTION

1. Worktop

2. Detergent dispenser

3. Control panel

4. Door handle

5. Door

6. Water lter

7. Adjustable feet (4)

DETERGENT DISPENSER

Compartment 1:

Do not insert detergent in this compartment.

Compartment 2: Washing detergent

(powder or liquid)

Compartment 3: Additives (fabric softeners,

etc.)

The fabric softener must not exceed the “MAX”

level.

! Use powder detergent for white cotton

garments, for pre-washing, and for washing at

temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

1

2

3

1.

3.

2.

5.

4.

6.

7.

1

11

2

3

7

10

4

9

8

5

6

Maximum load 7 kg

Power input in o mode 0.5 W / in left-on mode 8 W

Detergents and

Additives

Recommended

detergent

Wash cycle

Temperature

Maximum

spin

(r.p.m.)

Max. load for

wash cycle (kg)

Max. load for

drying cycle

(kg)

Duration

(Minutes)

Drying

Wash

Fabric

softener

Powder Liquid

Default Range

2 3

1 Daily Mix Wash & Dry 40 °C

- 40 °C 800 3,5 3,5 265

  

–



2 Shirts & T-Shirts 40 °C

- 40 °C 1000 2,0 2,0 180

  

–



3 Pre Iron – – – 1,5 – 20 – – – – –

4 Steam Refresh – – – 1,5 – 20 – – – – –

5 Cotton (2) 40 °C

- 60 °C 1200 7,0 5,0 230

    

6 Synthetics (3) 40 °C

- 60 °C 1200 4,0 3,5 195

    

7 Anti Stain Quick 40 °C

- 40 °C 1200 3,5 3,0 45

  

–



8 Anti Stain 100 40 °C

- 40 °C 1200 7,0 5,0 205

  

–



9 White 60 °C

- 90 °C 1200 7,0 5,0 140

   

–

10

Eco Cotton

(1)

60 °C

60° C 1200 7,0 5,0 175

    

40°C 1200 7,0 5,0 230

    

11 Coloureds 40 °C

- 40 °C 1200 7,0 5,0 100

  

–



12 Ultradelicates 30 °C

- 30 °C - 1,0 1,0 80

  

–



13 Wool 40 °C

- 40 °C 800 1,5 1,5 75

  

–



14 Fast 30' ** 30 °C

- 30 °C 800 3,0 - 30

  

–



Rinse+Spin – – 1200 7,0 5,0 50



–



– –

Spin & Drain * – – 1200 7,0 5,0 10



– – – –



Required dosage  Optional dosage

For all testing institutes:

2) Long cotton cycle: set cycle 5 at a temperature of 40°C.

3) Long synthetics cycle: set cycle 6 at a temperature of 40°C.

* By selecting the cycle and excluding the spin cycle, the washer-dryer will drain only.

** If a drying cycle is also programmed, the machine will run a “wash+dry” programme lasting

45’ and a 1kg laundry load.

The cycle duration indicated on the display or instruction manual is an estimate based on

standard conditions. The actual duration may vary in relation to several factors, such as

the temperature and pressure of the incoming water, ambient temperature, amount of

detergent, load quantity and type, load balancing and any additional options selected.

1) Test programme in compliance with standard EN 50229 (Wash):

This cycle is designed for normally soiled cotton loads and is the most ecient in terms of

both electricity and water consumption; it should be used for garments washable at 60°C or

at 40°C. The actual washing temperature may dier from the indicated value.

Test programme in compliance with standard EN 50229 (Drying): select the 10 wash

programme and set the drying level to “ ”, for both loads. The rst drying cycle must be

carried out with the nominal load.
