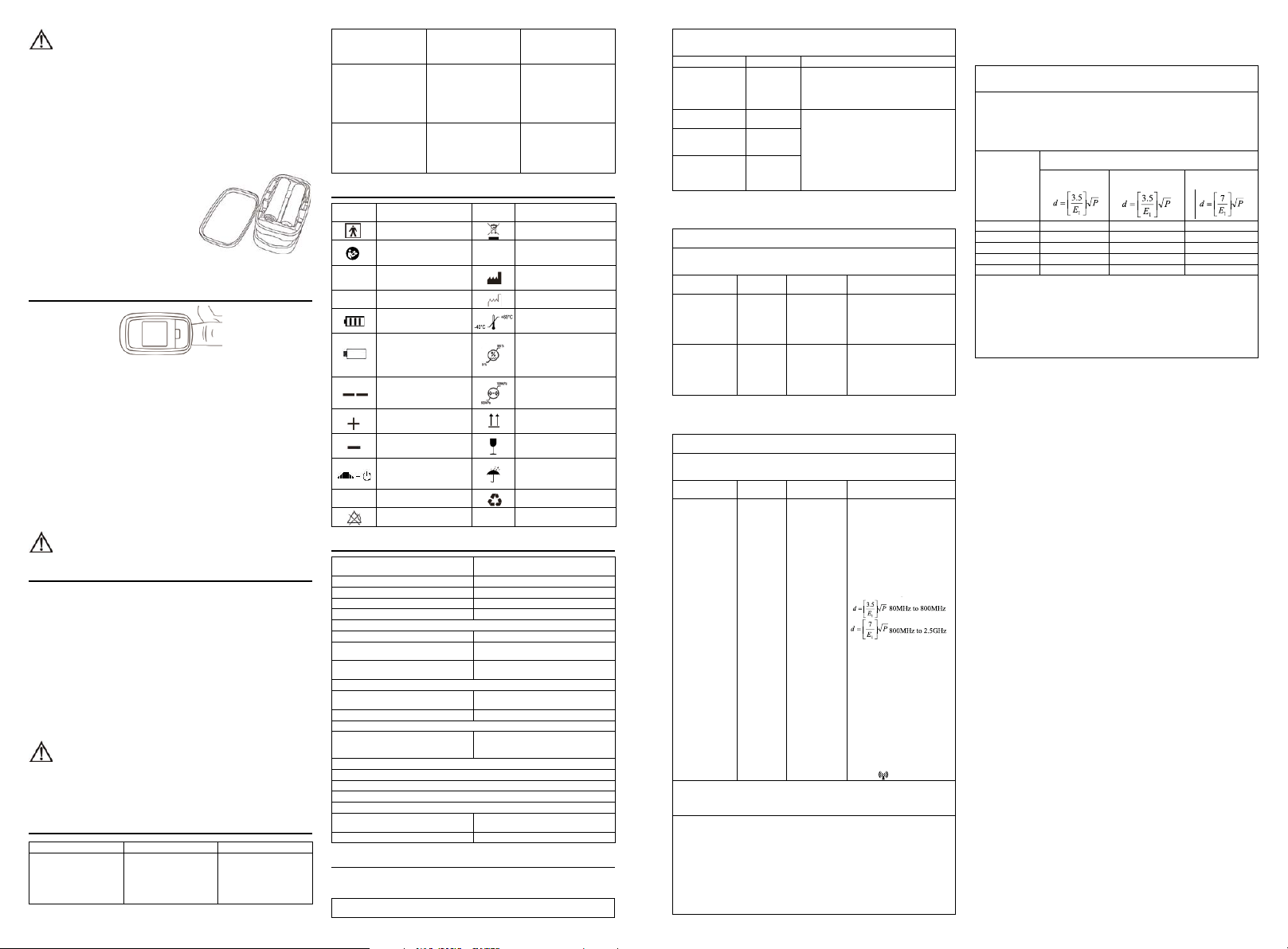

Bruksanvisning

Please take care when you insert the batteries for the

improper insertion may damage the device.

• Replace all batteries at one time (as simultaneous set). Use only

1.5V AAA alkaline batteries. Use only the size and type of batteries

specified.

• When installing batteries, observe proper +/- polarities. Incorrect

installation of batteries may cause damage to the unit.

• Clean contacts on battery and in battery compartment with a soft,

dry cloth each time you install batteries.

• Batteries are hazardous waste. DO NOT dispose of them together

with household garbage.

• DO NOT dispose of batteries in fire. Batteries may explode or leak.

• Recycle or dispose of properly in

accordance with local, state,

province, and country regulations.

• Keep batteries away from children.

• Batteries are small objects and could

be ingested. If swallowed, contact a

physician at once.

• Remove batteries promptly from the

device when the batteries are depleted.

OPERATING GUIDE

Figure 7. Finger Position

1. With the batteries in the device press the back of the device to

open the clip.

2. Place the finger between the rubber cushions of the clip as shown

in Figure 7 (make sure the finger is in the right position), and then

clip the finger.

3. Press the power button to start measurement.

4. DO NOT move the finger or body during measurement.

5. The measurement information will be shown directly on the display.

6. Long press the button to adjust brightness preference. Choose from

5 levels of brightness. When in Standby mode, a short press of the

button will exit it.

7. Display viewing angle will change automatically according to the

direction of the hand.

Fingernails and the luminescent tube

should be on the same side.

CARE AND MAINTENANCE

• Replace the batteries if the low battery symbol appears on the display,

or when any button is pressed and nothing is displayed on the screen.

• Please clean the surface of the device before using. Wipe the device

with rubbing alcohol first, let it air dry, or clean it using a soft, dry

piece of clean fabric.

• Use rubbing alcohol to disinfect the product after use to prevent

spreading infection between uses.

• Remove batteries when unit is not in use for extended periods of time.

• The packed device can be transported by ordinary conveyance or

according to transport contract. The device cannot be transported

mixed with toxic, harmful, corrosive material.

• Storage environment of the device is -40°F (- 40°C) to +140°F (60°C),

< 95% RH.

High-pressure sterilization cannot be used on the device.

DO NOT immerse the device in liquid.

It is recommended that the device should be kept in a dry

environment.

Humidity may reduce the useful life of the device, or even

damage it.

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

The SpO

2

and pulse rate

are not displayed normally

1. The finger is not proper-

ly positioned.

2. The user’s SpO

2

is too

low to be detected.

1. Place the finger properly

and try again.

2. Try again. Go to a hos-

pital for a diagnosis if

you are sure the device

works all right.

The SpO

2

and pulse rate

are not displayed stably

1. The finger is not placed

inside deep enough.

2. The finger is shaking or

the user is moving.

1. Place the finger properly

and try again.

2. Keep the user calm.

The device cannot be

turned on

1. The batteries are

drained or almost

drained.

2. The batteries are not

inserted properly.

3. The device is

malfunctioning.

1. Change batteries.

2. Reinstall batteries.

3. Please contact

Consumer Relations.

The display is off suddenly 1. The product will enter

standby mode when no

signal is detected within

5 seconds.

2. The batteries are almost

drained.

1. Normal.

2. Change batteries.

SYMBOLS

SYMBOL DESCRIPTION SYMBOL DESCRIPTION

Type BF WEEE (2002/96/EC)

Refer to instruction

manual/booklet

IP22 Ingress of liquids rank

%SpO

2

The pulse oxygen

saturation(%)

Manufacturer

PRbpm Pulse rate (bpm) Manufacture Date

Full-voltage

Storage and Transport

Temperature limitation

The battery voltage

indication is deficient

(change the battery in

time avoiding the inexact

measure)

Storage and Transport

Humidity limitation

1. No finger inserted

2. An indicator of signal

inadequacy

Storage and Transport

Atmospheric pressure

limitation

Battery positive

electrode

This side UP

Battery negative

electrode

Fragile, handle with care

I. Exit standby mode

2. Change brightness of

the screen

Keep dry

SN Serial number Recyclable

Alarm inhibit

SPECIFICATIONS

DISPLAY INFORMATION DISPLAY MODE

The Pulse Oxygen Saturation(SpO

2

) LCD

Pulse Rate(PR) LCD

Pulse Intensity (bar-graph) LCD bar graph display

Pulse wave LCD

SpO

2

Parameter Specification

Measuring range 0% ~ 100% (the resolution is 1%).

Accuracy 70% ~ 100%: ±2%, below 70%

unspecified.

Optical Sensor Red light (wavelength is 660 nm)

Infrared (wavelength is 905 nm)

Pulse Parameter Specification

Measuring range 30 bpm ~ 250 bpm (the resolution

is 1 bpm)

Accuracy ±2 bpm or ±2% select larger

Pulse Intensity

Range Continuous bar-graph display, the

higher display indicate the stronger

pulse.

Battery Requirement

1.5V (AAA size) alkaline batteries x 2 or rechargeable battery

Battery Life

Up to 20 hours

Dimensions and Weight

Dimensions 2.36"(L) X 1.42"(W) X 1.26"(H)

60(L) X 36(W) X 32(H) mm

Weight About 0.002 lbs (57g) with the batteries

APPENDIX

Guidance and manufacture’s declaration-electromagnetic emission

for all EQUIPMENT and SYSTEMS

GUIDANCE AND MANUFACTURE’S DECLARATION—

ELECTROMAGNETIC EMISSION

°F °F °F °F

The PX-131CO Pulse Oximeter is intended for use in the electromagnetic

environment specified below. The customer or the user of the PX-131CO Pulse

Oximeter should assure that it is used in such an environment.

Emission test Compliance Electromagnetic environment-guidance

RF emissions

CISPR ll

Group 1 The PX-131CO Pulse Oximeter uses RF

energy only for their internal function.

Therefore, its RF emissions are very low

and are not likely to cause any interference

in nearby electronic equipment.

RF emissions

CISPR ll

Class B The PX-131CO Pulse Oximeter is suitable

for use in all establishments,including

domestic establishments and those

directly connected to the public low-voltage

power supply network that supplies

buildings used for domestic purposes.

Harmonic

emissions IEC

61000-3-2

Not

applicable

Voltage

fluctuations/ flicker

emission

IEC 61000-3-3

Not

applicable

Guidance and manufacture’s declaration-electromagnetic immunity

for all EQUIPMENT and SYSTEMS

GUIDANCE AND MANUFACTURE’S DECLARATION —

ELECTROMAGNETIC IMMUNITY

The PX-131CO Pulse Oximeter is intended for use in the electromagnetic

environment specified below. The user of PX-131CO Pulse Oximeter should

assure that it is used in such an environment.

Immunity test IEC60601

test level

Compliance

level

Electromagnetic

environment-guidance

Electrostatic

discharge (EDS)

IEC 61000-4-2

±6KV

contact

±8KV air

±6KV contact

±8KV air

Floors should be wood,

concrete or ceramic tile. If

floors are covered with

synthetic material, the

relative humidity should be

at least 30%.

Power frequency

(50Hz) magnetic

field

IEC 61000-4-8

3A/m 3A/m Power frequency of

magnetic fields should be

at levels characteristic of a

typical location in a typical

commercial or hospital

environment.

Guidance and manufacture’s declaration-electromagnetic immunity

for EQUIPMENT and SYSTEMS that are not LIFE SUPPORTING

GUIDANCE AND MANUFACTURE’S DECLARATION—

ELECTROMAGNETIC IMMUNITY

The PX-131CO Pulse Oximeter is intended for use in the electromagnetic

environment specified below. The customer or the user of PX-131CO Pulse

Oximeter should assure that it is used in such an environment.

Immunity test IEC60601

test level

Compliance

level

Electromagnetic

environment-guidance

Radiated

RF

ICE

61000-4-3

3V/m

80MHz

to

2.5GHz

3V/m

Portable and mobile RF

communication equipment

should be used no closer to

any part of the PX-131CO

Pulse Oximeter, including

cables, than the

recommended separation

distance calculated from the

equation applicable to the

frequency of the transmitter.

Recommended separation

distance

Where P is the maximum

output power rating of the

transmitter in watts (W)

according to the transmitter

manufacturer and d is the

recommended separation

distance in meters (m).

Field strengths from fixed RF

transmitters, as determined

by an electromagnetic site

survey,

a

should be less than

the compliance level in each

frequency range

b

.

Interference may occur in the

vicinity of equipment marked

with the following

symbol:

NOTE 1: At 80MHz and 800MHz, the higher frequency range applies.

NOTE 2: These guidelines may not apply in all situations. Electromagnetic

propagation is affected by absorption and reflection from structures, objects

and people.

a. Field strengths from fixed transmitters, such as base stations for radio (cellular/

cordless) telephones and land mobile radios, amateur radio, AM and FM radio

broadcast and TV broadcast cannot be predicted theoretically with accuracy.

To assess the electromagnetic environment due to fixed RF transmitters,

an electromagnetic site survey should be considered. If the measured field

strength in the location in which The PX-131CO Pulse Oximeter is used

exceeds the applicable RF compliance level above, the PX-131CO Pulse Oxim-

eter should be observed to verify normal operation. If abnormal performance

is observed, additional measures may be necessary, such as reorienting or

relocating the PX-131CO Pulse Oximeter.

b. Over the frequency range 150 KHz to 80 MHz, field strengths should be less

than 3V/m.

Recommended separation distances between portable and mobile

RF communications equipment and the EQUIPMENT or SYSTEM

for EQUIPMENT or SYSTEM that not LIFE-SUPPORTING

RECOMMENDED SEPARATION DISTANCES BETWEEN

PORTABLE AND MOBILE RF COMMUNICATIONS EQUIPMENT

AND THE PX-131CO PULSE OXIMETER

The PX-131CO Pulse Oximeter is intended for use in the electromagnetic

environment in which radiated RF disturbances are controlled The customer

or the user of the PX-131CO Pulse Oximeter can help prevent electromagnetic

interference by maintaining a minimum distance between portable and mobile

RF communications equipment (transmitters) and the PX-131CO Pulse

Oximeter as recommended below, according to the maximum output power

of the communications equipment.

Rated maximum

output power of

transmitter

(W)

Separation distance according to frequency

of transmitter (m)

150 KHz to 80

MHz

80 MHz to

800 MHz

800 MHz to

2.5 GHz

0.01 0.12 0.12 0.23

0.1 0.37 0.37 0.74

1 1.17 1.17 2.33

10 3.69 3.69 7.38

100 11.67 11.67 23.33

For transmitters rated at a maximum output power not listed above, the

recommended separation distanced in meters (m) can be estimated using the

equation applicable to the frequency of the transmitter, where P is the maximum

output power rating of the transmitter in watts (W) according to the transmitter

manufacturer.

NOTE 1: At 80MHz and 800MHz, the separation distance for the higher

frequency range applies.

NOTE 2: These guidelines may not apply in all situations. Electromagnetic

propagation is affected by absorption and reflection from structures, objects

and people.

2-YEAR LIMITED WARRANTY

Homedics sells its products with the intent that they are free of defects in

manufacture and workmanship for a period of 2 years from the date of original

purchase, except as noted below. Homedics warrants that its products will be

free of defects in material and workmanship under normal use and service.

This warranty extends only to Consumers and does not extend to Retailers.

To obtain warranty service on your Homedics product, contact a consumer

relations representative for assistance. Please make sure to have the model

number of the product available.

Homedics does not authorize anyone, including, but not limited to, Retailers,

the subsequent Consumer purchaser of the product from a Retailer or remote

purchasers, to obligate Homedics in any way beyond the terms set forth

herein. This warranty does not cover damage caused by misuse or abuse;

accident; the attachment of any unauthorized accessory; alteration to the

product; improper installation; unauthorized repairs or modifications; improper

use of electrical/power supply; loss of power; dropped product; malfunction

or damage of an operating part from failure to provide manufacturer’s

recommended maintenance; transportation damage; theft; neglect; vandalism;

or environmental conditions; loss of use during the period the product is at

a repair facility or otherwise awaiting parts or repair; or any other conditions

whatsoever that are beyond the control of Homedics.

This warranty is effective only if the product is purchased and operated

in the country in which the product is purchased. A product that requires

modifications or adoption to enable it to operate in any other country than the

country for which it was designed, manufactured, approved and/or authorized,

or repair of products damaged by these modifications is not covered under

this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE

WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR

IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR

FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY

WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS

SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL

OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE

MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS

WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD

OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT

PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS

RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF

REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired,

repackaged and/or resealed products, including but not limited to the sale

of such products on internet auction sites and/or sales of such products

by surplus or bulk resellers. Any and all warranties or guarantees shall

immediately cease and terminate as to any products or parts thereof which are

repaired, replaced, altered, or modified, without the prior express and written

consent of Homedics.

This warranty provides you with specific legal rights. You may have

additional rights which may vary from state to state. Because of individual

state regulations, some of the above limitations and exclusions may not apply

to you.

For more information regarding our product line in the USA, please visit:

www.homedics.com.

-40°C

+60°C

-40°C

+60°C

-40°C

+60°C

-40°C

+60°C

For service or repair, do not return this

unit to the retailer. Contact Homedics

Consumer Relations:

Email: cser[email protected]

Phone: 1-800-466-3342

Business Hours: 8:30am-7pm EST,

Monday-Friday

Homedics

®

is a registered trademark of

Homedics, LLC.

©2023 Homedics, LLC. All rights reserved.

IB-PX131COC

X.X.XX.XX.XXX

In USA Distributed by:

Homedics USA, LLC

3000 N Pontiac Trail

Commerce Township, MI 48390

Printed in China

Figure 6.

Battery Installation

Betyg

Mer om denna bruksanvisning

Vi förstår att det är trevligt att ha en pappersbruksanvisning för din Homedics PX-131CO Pulsoximeter. Du kan alltid ladda ner bruksanvisningen från vår hemsida och skriva ut den själv. Om du vill ha en originalbruksanvisning rekommenderar vi att du kontaktar Homedics. De kanske kan tillhandahålla en originalbruksanvisning. Letar du efter bruksanvisningen för din Homedics PX-131CO Pulsoximeter på ett annat språk? Välj ditt föredragna språk på vår hemsida och sök efter modellnumret för att se om vi har det tillgängligt.

Specifikationer

Alla bruksanvisningar för Homedics Pulsoximetrar
Fler bruksanvisningar för Pulsoximetrar

Relaterade produkter

Bruksanvisning

Homedics PX-130 Pulsoximeter

Bruksanvisning

Homedics PX-100 Pulsoximeter

Bruksanvisning

Beurer PO 30 Pulsoximeter

Bruksanvisning

Yuwell YX302 Pulsoximeter

Bruksanvisning

Medi1One CMS50D Pulsoximeter

Bruksanvisning

Sanity AP 4117 Pulsoximeter

Bruksanvisning

Contec CMS50D1 Pulsoximeter

Bruksanvisning

Medisana PM 100 Pulsoximeter

Relaterade kategorier
