Dear Customer,
thanks for choosing an Hamlet product. Please
carefully follow the instructions for its use and
maintenance and, once this item has run its life
span, we kindly ask You to dispose of it in an
environmentally friendly way, by putting it in the
separate bins for electrical/electronic waste, or to bring
it back to your retailer who will collect it for free.
We inform You this product is manufactured with
materials and components in compliance with RoHS
Directive 2011/65/EU, WEEE Directive 2002/96/CE,
2003/108/CE Italian Legislative Decree 2005/151 and
RED Directive 2014/53/EU for the following standards:
ETSI EN 301 489-1 V2.1.1 (2017-02)
ETSI EN 301 489-17 V3.1.1 (2017-02)
ETSI EN 300 328 V2.1.1 (2016-11)
EN 62311: 2008
DIN VDE 0620-2-1: 2019-05
EN 61058-1: 2018
IEC 61010-1: 2010 + A1: 2016
IEC 60884-2-5: 2017
IEC 60884-1: 2002 + AMD1: 2006 + AMD2: 2013
The complete CE declaration of conformity of the
product can be obtained by contacting Hamlet at
Visit www.hamletcom.com for complete information on
all Hamlet products and to access downloads and
technical support.
CE Mark Warning
This is a Class B product. In a domestic environment,
this product may cause radio interference, in which
case the user may be required to take adequate
measures.
All trademarks and company names mentioned in this
manual are used for description purpose only and
remain property of their respective owners.
The material in this document is for information only.
Contents, specifications and appearance of the product
are indicative and may change without notice.
Imported by: CARECA ITALIA SPA - Scandiano (RE) . Italy.
www.hamletcom.com
SMART WI-FI PLUG
User Manual
HIOT-SPL16M
Wi-Fi Remote Control
INTRODUCTION
Smart Wi-Fi Plug for remote control of connected
devices. Include energy monitoring and scheduling
function via APP available for iOS and Android.
Compatible with IFTTT, Amazon Alexa e Google
Assistant.
Specifications
• Voltage: 90~250V AC 50Hz/60Hz
• Max load current: 16A
• Network: Wi-Fi 2.4GHz
• Transmit distance: within 20 meters
• Control method: voice/app/button
• Dimensions: 52.4 × 52.4 × 82.1 mm
Package contents
• Smart Wi-Fi Plug
• User manual

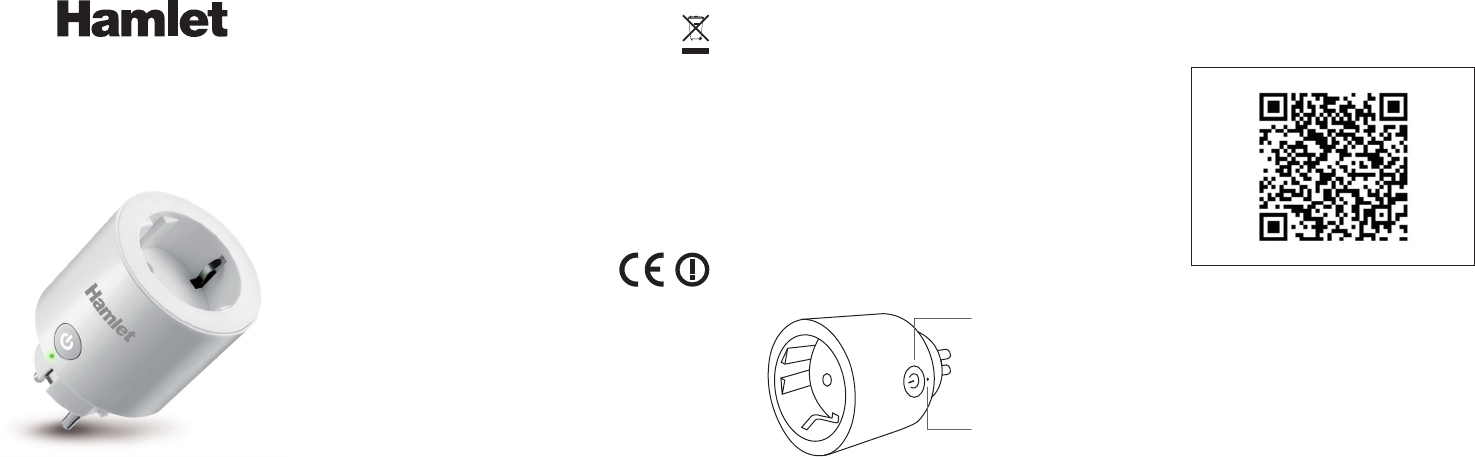

PRODUCT OVERVIEW
Power/Reset Button
• Switch on/off the smart plug.
• Press and hold for 5 seconds to reset the device and
start configuration process.
LED Indicator
• Amber (fixed): Smart plug is switched on.
• Green (blinking): Configuration mode.
SMART WI-FI PLUG INSTALLATION
1. Scan the QR code below or search for “smart life”
on App Store or Google Play to download and install
the Smart Life app.
2. Plug the Smart Wi-Fi Plug into a power outlet.
3. With your mobile device connected to your 2.4GHz
Wi-Fi network, run Smart Life app.
New user must register an account at first use.
4. Press Add Device and select Electrical Outlet to
connect the Smart Wi-Fi Plug to your network.
5. Press and hold the power button for 5 seconds until
the LED starts blinking.
6. Press “Confirm indicator rapidly blink” button on
Smart Life app.
7. Now enter the name and password of your Wi-Fi
network and press OK.
8. Wait until the Smart Plug is successuflly connected.
You can now use the Smart Wi-Fi Plug to control your
lights or household appliances from anywhere in the
world with an Internet connection and the Smart Life
app on your smartphone.
Power/Reset
Button
LED Indicator
