Bruksanvisning

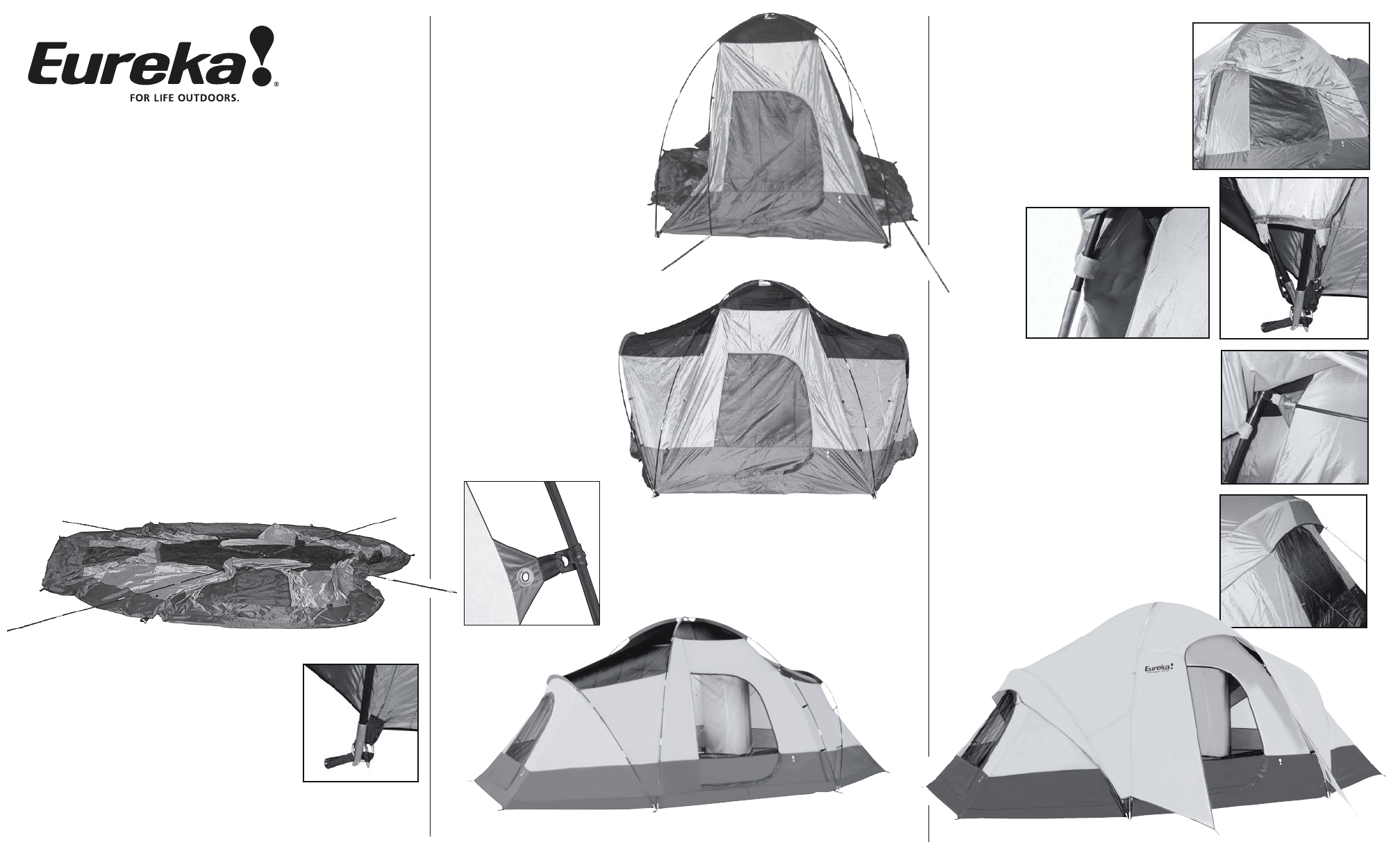

fig. 2

B

B

B

D

D

D

A

A

A

C

C

C

fig.1

fig. 3

fig. 4

fig. 5

fig. 7

fig. 8

fig. 9

fig. 10

fig. 11

Component List:

1 Tent Body 2 Black Long Poles 2 Grey Short Poles

1 Tent Fly 2 Brim rods 1 Pole Bag

1 Carry Bag 4 Guy lines 1 Stake Bag w/Stakes

2 Dividers w/toggles 1 Sewn-in Gear Loft/Organizer

ASSEMBLY

INSTRUCTIONS

FOR THE

TETRAGON 1610

Insert one of the corner pins into the end of

the pole at

A

. At the opposite end

B

, with the

pole in one hand and a pin & ring in the other,

feed the pole up, bending it evenly along its

length to create an arc. Place the pin into the

end of the pole to maintain tension. See fig 2.

Repeat with the other pole from

C

to

D

, raising

the tent as you work.

Insert the corner pin at

A

into the ferrule at the

end of the side pole. At the opposite end

D

,

with the pole in one hand and a pin &

ring in the other, bend the pole

evenly along its length to

create an arc. Place the pin

into the end at

D

to maintain

tension.

Repeat with the left side

tent body from

C

to

B

.

See fig. 4.

NOTE:

• Although it is possible to pitch this tent alone, it is faster and

easier with two people.

• Do not drop tent bag or pole bag on its end. Do not bounce tent

bag on its end to get the tent out. These actions may cut the

shock-cord and/or damage the pole ends.

Unroll and unfold the tent and lay the floor on the ground.

Remove the fly and open the t

ent door. Do not stake down the

tent just yet; but in windy conditions, stake down one corner into

the wind.

Assemble all the shock-corded poles. Make sure each pole

section has firmly seated into the adjacent section. Try to keep

the poles from snapping together as this can damage the ends.

Lay the poles side by side and divide according to length.

Slide the two black long poles through the sleeves on the main

tent body.

Make sure the ferrules do not get caught on the sleeve.

They

should run corner to corner crossing in the center. From A to

B and from C to D. See fig. 1.

Slide the shorter grey poles into

the sleeves over the side

windows. Again,

make sure the

ferrules do not get caught on

the sleeve.

See fig. 3.

Drape the fly over the tent so that the

brim rod sleeves are above the doors and

the vestibule is at the front door. Slide

the brim rods into the sleeves. See fig 7.

Reach under the fly and insert the brim rod

tips into web grommets to tension the rod

and create an arch over the door. Repeat over

the rear window. See fig 10.

Pull out and stake down the two front loops

of the fly/vestibule. Then pull out, stake down

and tension the attached cords on each side

of the fly. The fly should not lay in contact

with the tent. See fig. 11.

Reach under the fly and wrap the hook

and loop straps around the poles to

secure the fly to the tent frame. See fig 8.

Fasten the shock-corded J-hook, at each

of the corners of the fly, to the stake out

rings on corners of the tent. See fig 9.

Important: In strong winds, tie extra

guy out cords (not provided) to

the storm loops on the fly.

Stake these out securely.

Rev.E 4.09

Inside the tent, hang the two dividers and…

Your tent is ready for use!

Start at the bottom and attach all the tent clips to the

poles. See fig. 5.

Square up the tent

and stake the main

tent down at

A

and

B

then

C

and

D

. Stake opposing

corners while applying tension to smooth out the floor

wrinkles

.

Stake the pull out webs at

E

/

F

, then

G

/

H

.

See fig 6.

A

G/H

F

E

C

fig. 6
