Portable use

WARNING: THE HEATER SHOULD NEVER BE USED AS A PORTABLE

APPLIANCE WITHOUT THE FEET SECURELY FITTED.

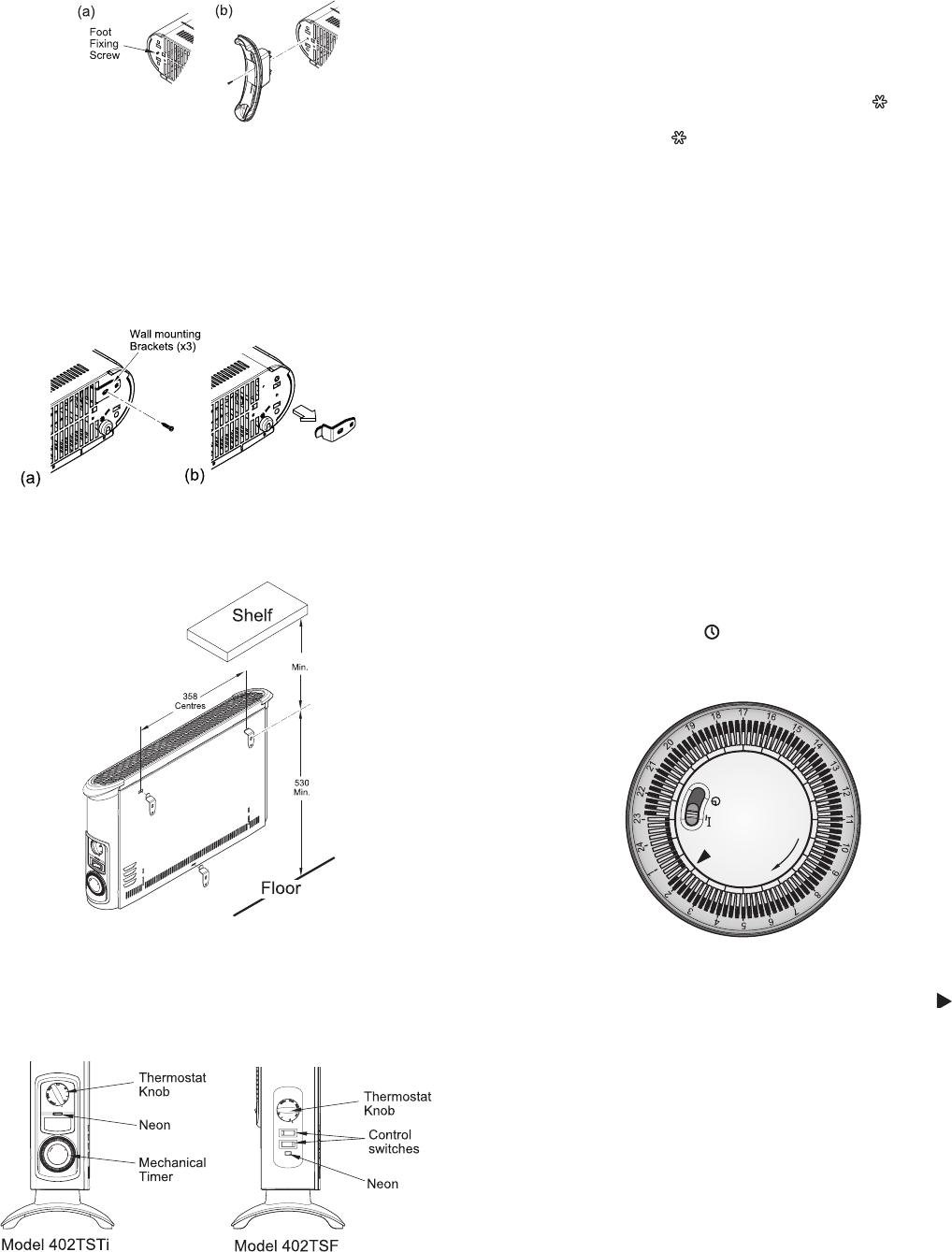

Lay the heater on its back and remove the wall mounting brackets - see

Wall mounting. Locate and remove the foot xing screw - see Fig. 2(a).

Clip the foot in place and secure using the foot xing screw.

NOTE – The wall mounting brackets must be removed before the foot

can be tted.

Wall Mounting (Installed)

Three identical wall mounting brackets are secured to the base of the heater

with a xing screw. To wall mount appliance, rst remove the brackets as

follows, lay the heater on its back and follow the sequence shown - see

Fig. 3. Identify and remove the xing screw securing the brackets located

beside mains cable as shown in (a), pull out brackets and rotate them to

disengage them from the slot and withdraw the brackets from the slot (b).

Select a suitable position, near to a mains power socket whilst ensuring

the minimum mounting clearances are maintained - see Fig. 1. Fix the

two top retaining brackets to the wall, using suitable xings – see Fig. 4.

574

Locate the heater on the top brackets and allow it to hang in place.

Fit the bottom bracket into the slot in the heater and then x it to the wall.

Test that the heater is now securely xed to the wall.

Controls

Indicator Neon (selected models)

The indicator neon comes on when the appliance is connected to mains

supply.

Thermostat (all models)

The thermostat controls the heat output according to the room temperature.

This ensures that the heater will not produce heat unnecessarily when the

room is warm.

To set the temperature you require, Gradually turn the thermostat knob

clockwise until the desired temperature is reached. Allow some time between

increments for the room temperature to stabilise.

Alternatively to heat a cold room quickly, turn the thermostat knob to the

Max position. When the room has reached the desired temperature, turn

the thermostat knob anti-clockwise until the thermostat clicks off. The heater

will then automatically maintain this room temperature.

The thermostat also has a frost protection setting marked ‘ ’. This setting is

useful in areas such as garages to prevent frost damage. If the thermostat is

set to its minimum setting ‘ ’, the heater will cycle ON and OFF to maintain

a temperature of approximately 5°C to help protect against frosty conditions.

Switches (selected models)

Selected models are supplied with selector switches . There are two switch

types, one is an on/off switch and the other is a heat selection switch.

Depending on model either one or both switch may be included. The switch

operation is as follows.

On/Off: O - Off

I - On

Heat selection I - Low heat

II - High heat

Mechanical Timer (selected models)

Note: The timer clock will only operate when the product is connected to

the mains supply

Operation modes

There are two operating modes on the timer, Manual operation and Auto

operation. The operation mode is set using the slide switch on the timer

- see g6.

Manual operation (Position - I)

This setting allows power to the product uninterrupted by the timer,

however other product controls will continue to function as normal.

Auto operation (Position - )

This setting allows the heater to be controlled by the timer. The

product will be switched on and off depending on the pre-set timer

program.

Setting the time of day

To set the time of day, rotate the timer dial clockwise (indicated by the

arrow) until the correct time of day is opposite the reference mark -

see Fig.6. The 24-hour clock is used ; e.g. 4 pm is ‘16’ (16:00hrs).

Setting the ‘Auto’ ON and OFF times

To set the timer :

1. Using your nger tip or the tip of a pencil, push in as many

segments as necessary around the dial, according to the times you

don’t require heat – see Fig. 7. Each segment pushed in switches

the heater OFF for that part of the hour. All other segments will be

ON. For example, Fig. 7 shows the timer set to switch the heater

OFF between 11pm and 1.45am.

2. You can select as many ON periods as you like, within the 24-hour

day. The settings will repeat every day until changed.

3. To change ON and OFF times, simply push in any ‘ON’ segments

you wish to cancel and pull out new ‘ON’ segments as required.

Fig.6

Fig. 4

Fig. 5

Fig. 3

Fig. 2
