CAUTION : Do not attempt to modify this product in any way. Unau-

thorized modifications will not only void the warranty, but may lead to

your being liable for any resulting property damage or user injury.

Servie work should be performed only after you are thoroughly

familiar with all of the following safety checks and servicing guide-

lines. To do otherwise, increases the risk of potential hazards and

injury to the user.

SAFETY CHECKS

After the original service problem has been corrected, a check should

be made of the following :

SUBJECT : FIRE & SHOCK HAZARD

1. Be sure that all components are positioned in such a way as to

avoid possibility of adjacent component shorts. This is especially

important on those chassis which are transported to and from the

repair shop.

2. Never release a repair unless all protective devices such as insula-

tors, barriers, covers, shields, strain reliefs, and other hardware

have been reinstalled per original design.

3. Soldering must be inspected to discover possible cold solder joints,

frayed leads, damaged insulation (including A.C. cord), solder

splashes or sharp solder points. Be certain to remove all loose for-

eign particals.

4. Check for physical evidence of damage or deterioration to parts

and components, and replace if necessary follow original layout,

lead length and dress.

5. No leads or components should touch a receiving tube or a resistor

rated at 1 watt or more. Lead tension around protruding metal sur-

faces must be avoided.

6. All critical components such as fuses, flameproof resistors, capaci-

tors, etc. must be replaced with exact factory types. Do not use

replacement components other than those specified or make

unrecommended circuit modifications.

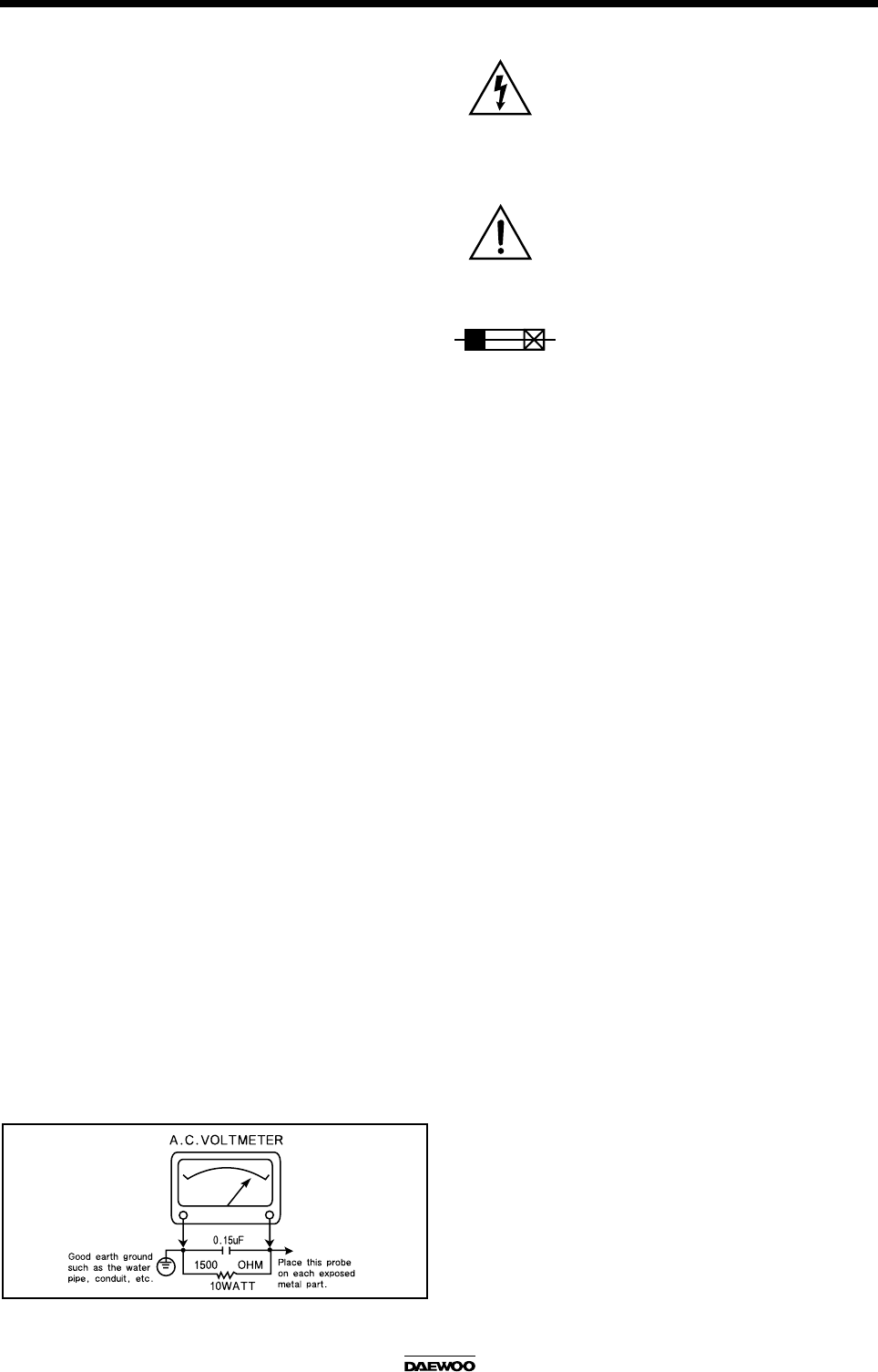

7. After re-assembly of the set always perform an A.C. leakage test

on all exposed metallic parts of the cabinet, ( the channel selector

knob, antenna terminals, handle and screws ) to be sure the set is

safe to operate without danger of electrical shock. Do not use a

line isolation transformer during this test. Use an A.C. voltmeter,

having 5000 ohms per volt or more sensitivity, in the following

manner : connect a 1500 ohm 10 watt resistor, paralleled by a 15

mfd. 150V A.C. type capacitor between a known good earth

ground (9water pipe, conduit, etc.) and the exposed metallic parts,

one at a time. Measure the A.C. voltage across the combination of

1500 ohm resistor and 0.15 MFD capacitor. Reverse the A.C. plug

and repeat A.C. voltage measurements for each exposed metallic

part. Voltage measured must not exceed 0.75 volts R.M.S. This

corresponds to 0.5 milliamp A.C. Any value exceeding this limit

constitutes a potential shock hazard and must be corrected imme-

diately.

PRODUCT SAFETY SERVICING GUIDELINES FOR COLOR TELEVISION RECEIVERS

GRAPHIC SYMBOLS :

The ligntning flash with arrowhead symbol,

within an equilateral triangle, is intended to alert

the service personnel to the presence of uninsu-

lated “dangerous voltage” that may be of suff-

cienty magnitude to constitute a risk of electric

shock.

The exclamation point within an equilateral tri-

angle is intended to alert the service personnel

to the presence of important safety information

in service literature.

Fuse symbol is printed on pcb adjacent to the

fuse, with “RISK OF FIRE REPLACE FUSE AS

MARKED”. The symbol is explained in the ser-

vice manual sith the following wording or equiv-

alent.

“ CAUTION : FOR CONTINUED PROTECTION AGAINST FIRE

HAZARD, REPLACE ONLY WITH SAME TYPE ( 4A, 125V)” and

“ ATTENTION : AFIN D’ASSU UNE PROTECTION PERMANENTE

CONTRE LES RISQUES D’INCENDIE, REMPLACER UNIQUE-

MENT PAR UN FUSIBLE DE MEME TYPE ET DE “ 4A, 125V”.

SUBJECT : X-RADIATION

1. Be sure procedures and instructions to all service personnel cover

the subject of X-rays in current T.V. receivers is the picture tube.

However, this does not emit X-rays when the high voltage is

at the factory specified level. The proper value is given in the appli-

cable schematic. Operation at higher voltages may cause a failure

of the picture tube or high voltage supply and, under certain cir-

cumstances, may produce radiation in excess of desirable levels.

2. Only factory specified C.R.T. anode connectors must be used.

Degaussing shields also serve as X-ray shield in color sets.

Always re-install them.

3. It is essential that the serviceman has available an accurae and

reliable high voltage meter. The calibration of the meter should be

checked perio - dically against a reference standard. Such as the

one available at your distributor.

4. When the high voltage circuitry is operating properly there is no

possibility of an X-radiation problem. Every time a color chassis is

serviced, the brightness should be run up and down while monitor-

ing the high voltage with a meter to be certain that the high voltage

does not exceed the specified value and that it is regulating cor-

rectly. We suggest that you and your service organization review

test procedures so that voltage regulation is always checked as a

standard servicing procedure. And that the high voltage reading be

recorded on each customer’s invoice.

5. When troubleshooting and making test measurements in a receiver

with a problem of excessive high voltage, avoid being unnecessarily

close to the picture tub eand the high voltage compartment.

Do not operate the chassis longer than is necessary to locate the

cause of excessive voltage.

6. Refer to HV, B+and Shutdown adjustment procedures described in

the appropriate schematic and diagrams(where used).
