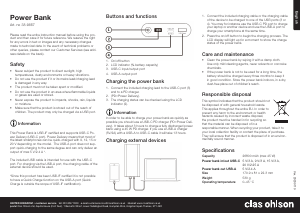

Bruksanvisning Clas Ohlson 38-9687 Portabel laddare

Bruksanvisning

English

UNITED KINGDOM • customer service

tel: 020 8247 9300 e-mail [email protected] internet www.clasohlson.co.uk

postal Clas Ohlson Ltd, Aquilla House (First floor), 1 Becketts Wharf, Lower Teddington Road, Hampton Wick, Kingston Upon Thames, KT1 4ER

Ver. 20200110

Power Bank

Art. no 38-9867

Please read the entire instruction manual before using the pro-

duct and then save it for future reference. We reserve the right

for any errors in text or images and any necessary changes

made to technical data. In the event of technical problems or

other queries, please contact our Customer Services (see add-

ress details on the back).

Safety

• Never subject the product to direct sunlight, high

temperatures, dusty environments or heavy vibrations.

• Do not use the product if it or its mains lead/charging lead

is damaged in any way.

• The product must not be taken apart or modified.

• Do not use the product in an area where flammable liquids

or gases are used or stored.

• Never expose the product to impacts, shocks, rain, liquids

or moisture.

• Make sure that the product is stored out of the reach of

children. The product may only be charged via a USB port.

Information

This Power Bank is USB-IF certified and supports USB-C Po-

wer Delivery (USB-C port). Power Delivery means that most of

the latest smartphones can be quick-charged with 9, 12, 15 or

20 V depending on the model. The USB-A port does not sup-

port quick-charging to the same degree and can only deliver an

output of max 5 V/2.4 A *.

The included USB cable is intended for use with the USB-C

port. For charging via the USB-A port, the charging cable of the

external device should be used.

*Since this product has been USB-IF certified it is not possible

to have a Quick Charge function on the USB-A port (Quick

Charge is outside the scope of USB-IF certification).

Buttons and functions

1. On/off button

2. LCD indicator (% battery capacity)

3. USB-C input/output port

4. USB-A output port

Charging the power bank

1. Connect the included charging lead to the USB-C port (3)

and to a PD charger.

2. (PD=Power Delivery).

3. The charging status can be checked using the LCD

indicator (2).

Information

In order to be able to charge your power bank as quickly as

possible you should use a USB-C PD charger (PD=Power Deli-

very). It takes about 3 hours to charge a fully discharged power

bank using a 45 W PD charger. If you use a USB-A charger

(5V/2A) with a USB-A to USB-C cable it will take 13 hours.

Charging external devices

1. Connect the included charging cable or the charging cable

of the device to be charged to one of the USB ports (3 or

4). You may for instance use the USB-C PD port to charge

your laptop or another device and use the USB-A port to

charge your smartphone at the same time.

2. Press the on/off button to begin the charging process. The

LCD display will light up for a moment to show the charge

status of the power bank.

Care and maintenance

• Clean the power bank by wiping it with a damp cloth.

Use only mild cleaning agents, never solvents or corrosive

chemicals.

• If the power bank is not to be used for a long time, the

battery should be charged every three months to keep it

in good condition. Store the power bank indoors, in a dry,

dust-free place out of children’s reach.

Responsible disposal

This symbol indicates that the product should not

be disposed of with general household waste.

This applies throughout the entire EU. In order to

prevent any harm to the environment or health

hazards caused by incorrect waste disposal,

the product must be handed in for recycling so

that the material can be disposed of in a

responsible manner. When recycling your product, take it to

your local collection facility or contact the place of purchase.

They will ensure that the product is disposed of in an environ-

mentally sound manner.

Specifications

Capacity 26800 mAh (max 45 W)

Power bank in/out USB-C 5 V/3 A, 9 V/3 A, 15 V/3 A,

20 V/2.25 A

Power bank out USB-A 5 V/2.4 A

Size 170.9 x 81 x 22.3mm

Weight 530g

Operating temperature 0–45 °C
